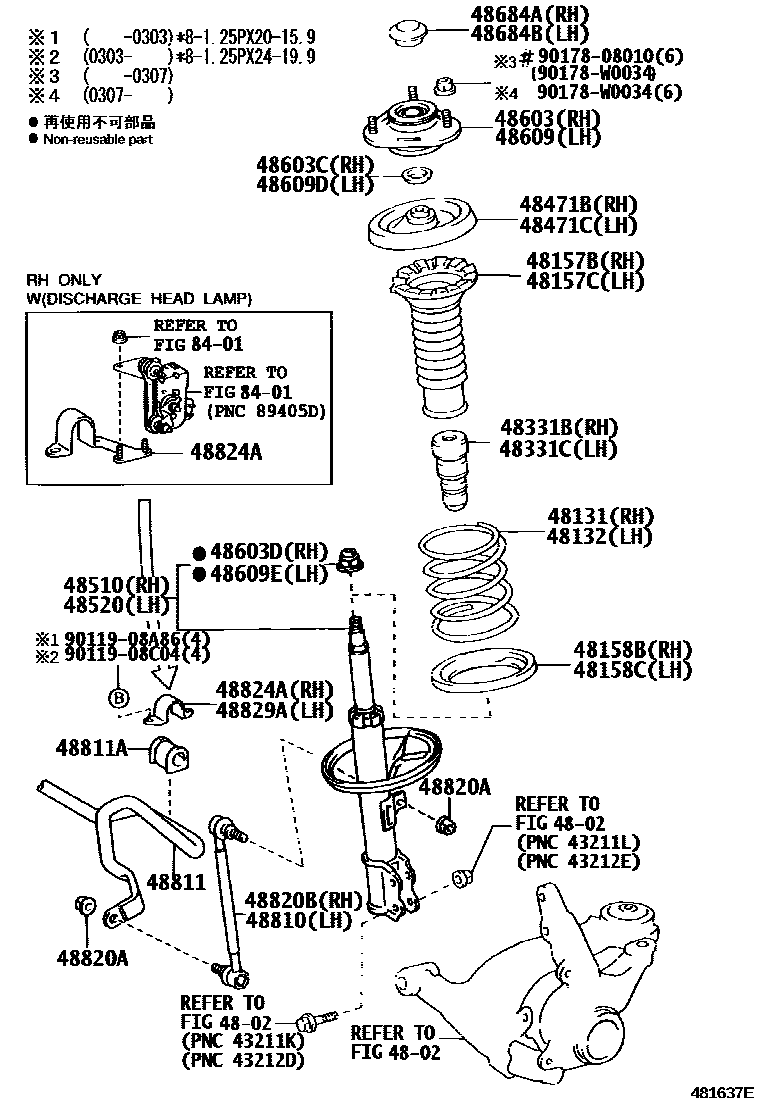

Toyota AVENSIS — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-05680iAZT251200309-200604

main48131-05690iZZT25#..5F200301-200604

main48131-05700iAZT250..5F200301-200604

main48131-05710iCDT250200303-200604

main48131-05720iZZT251..4FC200301-200604

main48131-05730iZZT251..LHD..5F;ZZT250..ELEGT,TEC;ZZT250..LHD..(LB,WG)200301-200604

WEST RUSSIA SPEC

main48131-05730iZZT251..LHD..5F;ZZT250..ELEGT,TEC;ZZT250..LHD..(LB,WG)200301-200604

TURKEY SPEC

main48131-05730iZZT251..LHD..5F;ZZT250..ELEGT,TEC;ZZT250..LHD..(LB,WG)200301-200604

ROUGH ROAD PACK 1

main48131-05730iZZT251..LHD..5F;ZZT250..ELEGT,TEC;ZZT250..LHD..(LB,WG)200301-200604

IRELAND SPEC

main48131-05730iAZT250..4FC200604

CIS W/O WEST RUSSIA SPEC

main48131-05820iADT251200504-200604

48132SPRING, FRONT COIL, LH

main48131-05680iAZT251200309-200604

main48131-05690iZZT25#..5F200301-200604

main48131-05700iAZT250..5F200301-200604

main48131-05710iCDT250200303-200604

main48131-05720iZZT251..4FC200301-200604

main48131-05730iZZT250..WG;ZZT251..LHD..(SED,WG)..5F200301-200604

ROUGH ROAD PACK 1

main48131-05730iZZT250..WG;ZZT251..LHD..(SED,WG)..5F200301-200604

IRELAND SPEC

main48131-05730iZZT251..LHD..5F;ZZT250..ELEGT,TEC;ZZT250..LHD..(LB,WG)200301-200604

WEST RUSSIA SPEC

main48131-05730iZZT251..LHD..5F;ZZT250..ELEGT,TEC;ZZT250..LHD..(LB,WG)200301-200604

TURKEY SPEC

main48131-05730iAZT250..4FC200604

CIS W/O WEST RUSSIA SPEC

main48131-05820iADT251200504-200604

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02060iADT25#,AZT25#,ZZT25#200301-200604

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02060iADT251,AZT25#,CDT250,ZZT25#200301-200604

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02050iADT251,AZT25#,CDT250,ZZT25#200301-200604

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02050iADT251,AZT25#,CDT250,ZZT25#200301-200604

48331BBUMPER, FRONT SPRING, RH

main48331-02050iADT251..DCRL200604

TIRE & DISK WHEEL-205/55R16 LIGHT ALUMI

main48331-02050iADT251..DCRL200604

TIRE & DISK WHEEL-205/55R16 STEEL

main48331-02050iADT251..DCRL200604

TIRE & DISK WHEEL-205/55R16 ALUMI

main48331-02050iADT251,AZT25#,CDT250,ZZT25#200301-200604

main48331-0F010iAZT251..RHD;ADT251..DCRL200604

TIRE & DISK WHEEL-215/50R17 ALUMI

48331CBUMPER, FRONT SPRING, LH

main48331-02050iAZT251..LHD;ADT25#,AZT250,ZZT25#..ENTRY,TEC200604

TIRE & DISK WHEEL-205/55R16 STEEL

main48331-02050iADT251,AZT25#,CDT250,ZZT25#200301-200604

main48331-02050iAZT251..LHD;ADT25#,AZT250,ZZT25#..ENTRY,TEC200604

TIRE & DISK WHEEL-205/55R16 ALUMI

main48331-02050iAZT251..LHD;ADT25#,AZT250,ZZT25#..ENTRY,TEC200604

TIRE & DISK WHEEL-205/55R16 LIGHT ALUMI

main48331-0F010iAZT251..RHD;ADT251..DCRL200604

TIRE & DISK WHEEL-215/50R17 ALUMI

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02030iADT25#,AZT25#,ZZT25#200301-200604

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02030iADT251,AZT25#,CDT250,ZZT25#200301-200604

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09800iZZT25#200301-200306

MARK 48510-05200

main48510-09810iZZT250..WG;ZZT251..LHD..(SED,WG)200301-200306

MARK 48510-05210,WEST RUSSIA SPEC

main48510-09810iZZT250..WG;ZZT251..LHD..(SED,WG)200301-200306

MARK 48510-05210,TURKEY SPEC

main48510-09810iZZT250..WG;ZZT251..LHD..(SED,WG)200301-200306

MARK 48510-05210,ROUGH ROAD PACK 1

main48510-09810iZZT250..WG;ZZT251..LHD..(SED,WG)200301-200306

MARK 48510-05210,IRELAND SPEC

main48510-09810iZZT251..LHD;ZZT250..ELEGT,TEC;ZZT250..LHD..(LB,WG)200301-200306

MARK 48510-05210

main48510-09820iCDT250200303-200306

MARK 48510-05220

main48510-09A02iAZT250200306-200604

MARK 48510-05211

main48510-09A03iAZT251,CDT250200306-200604

MARK 48510-05221

main48510-09B20iZZT25#200306-200604

MARK 48510-05201

main48510-09G40iADT251200504-200604

MARK 48510-05290

main48510-09N70iAZT250200604

MARK 48510-05212

main48510-09N80iADT25#,AZT251200604

MARK 48510-05222

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09650iZZT25#200301-200306

MARK 48520-05200

main48520-09660iAZT250200301-200306

MARK 48520-05210,TURKEY SPEC

main48520-09660iAZT250200301-200306

MARK 48520-05210

main48520-09660iAZT250200301-200306

MARK 48520-05210,WEST RUSSIA SPEC

main48520-09660iAZT250200301-200306

MARK 48520-05210,ROUGH ROAD PACK 1

main48520-09660iAZT250200301-200306

MARK 48520-05210,IRELAND SPEC

main48520-09670iCDT250200303-200306

MARK 48520-05220

main48520-09860iAZT250..WG..HTWC200306-200604

MARK 48520-05211

main48520-09870iAZT251,CDT250200306-200604

MARK 48520-05221

main48520-09A50iZZT250;ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC);ZZT251..RHD..(ENTRY,TEC)200306-200604

MARK 48520-05201

main48520-09D70iADT251200504-200604

MARK 48520-05290

main48520-09G20iAZT250200604

MARK 48520-05212

main48520-09G30iADT25#,AZT251200604

MARK 48520-05222

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-05030iZZT25#200301-200604

main48609-05040iADT251,AZT25#,CDT250200301-200604

sub48609-0F010

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iADT251,AZT25#,CDT250,ZZT25#200301-200604

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iADT251,AZT25#,CDT250,ZZT25#200301-200604

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-05030iZZT25#200301-200604

main48609-05040iADT25#,AZT25#200301-200604

sub48609-0F010

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iADT25#,AZT25#,ZZT25#200301-200604

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iADT251,AZT25#,CDT250,ZZT25#200301-200604

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47010iADT251,AZT25#,CDT250,ZZT25#200301-200604

48811BAR, STABILIZER, FRONT

main48811-05090iAZT25#,CDT250,ZZT25#200301-200604

main48811-05110iADT25#,AZT25#200504-200604

48811ABUSH(FOR FRONT STABILIZER BAR)

main48815-02110iZZT25#200301-200604

main48815-05110iADT251200504-200604

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iADT251,AZT25#,CDT250,ZZT25#200301-200604

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47010iADT251,AZT25#,CDT250,ZZT25#200301-200604

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub48824-20120

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

sub48824-20120

8401

9011908A86

main90119-08A86

9011908C04

main90119-08C04

9017808010

main90178-08010

90178W0034

main90178-W0034

33 parts on this diagram · 1 diagram in section
