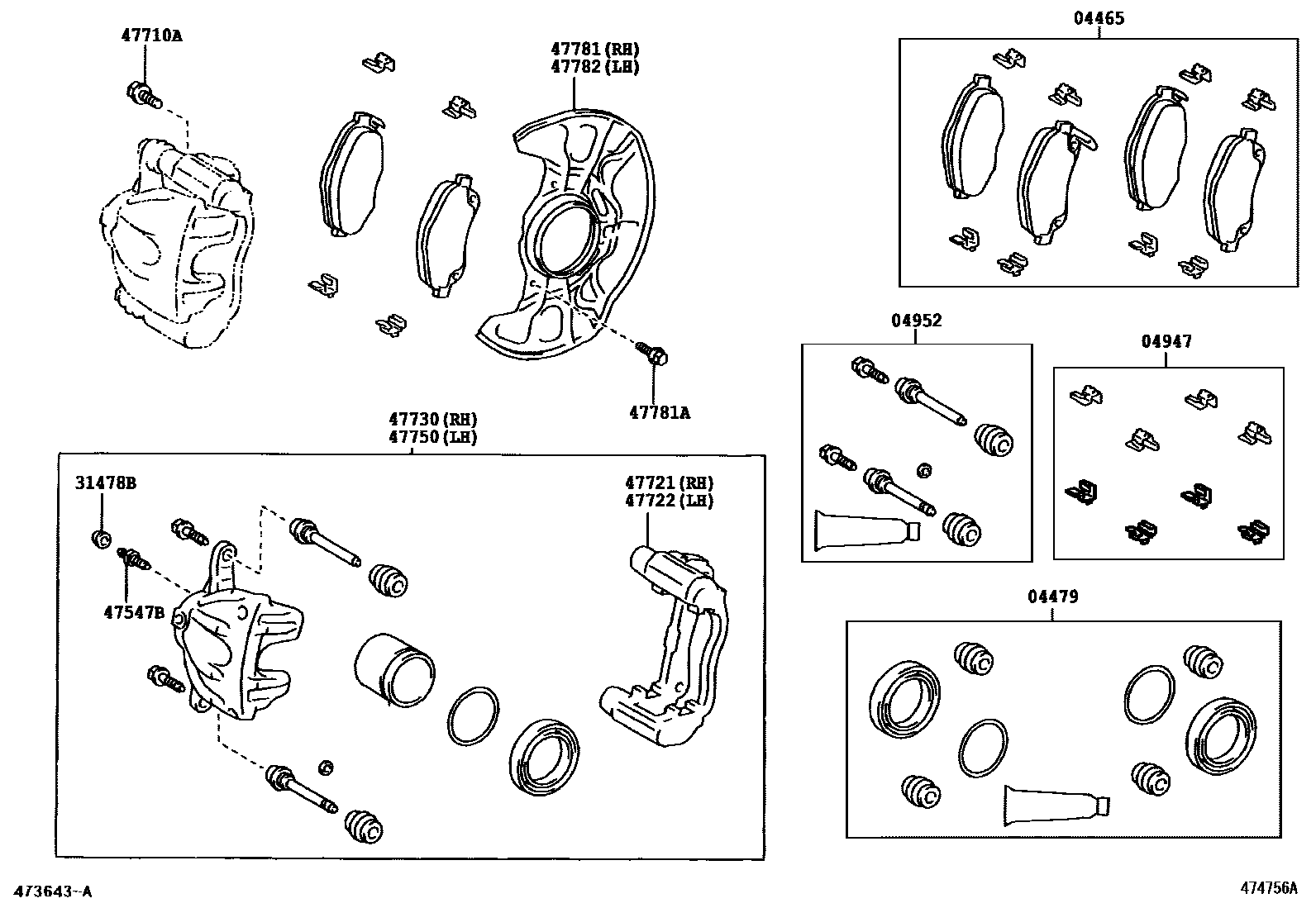

Toyota AVENSIS — FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-05130iAZT250,CDT250..D4,DCR200301-200304

MARK PAGID 660

sub04465-05131

main04465-05131iAZT25#,CDT250..D4,DCR,DCRL200304-200310

MARK PAGID 660

sub04465-05210

main04465-05140iAZT250..WG..HTWC;ZZT251..RHD..5F..ELEGT;ZZT251..LHD..4FC..ENTRY;ZZT251..RHD..LB..4FC..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200411

MARK PAGID 660

sub04465-05131

main04465-05150iAZT251;AZT250..SED..D4;CDT250..LHD..ELEGT..DCR;CDT250..(ENTRY,TEC)..DCR;AZT250..(LB,WG)..TEC..D4;AZT250..LHD..(LB,WG)..ELEGT..D4200310-200411

MARK PAGID 660

sub04465-05140

main04465-05170iADT251,AZT251;AZT250..SED..D4;CDT250..LHD..ELEGT..DCR;CDT250..(ENTRY,TEC)..DCR;AZT250..(LB,WG)..TEC..D4;AZT250..LHD..(LB,WG)..ELEGT..D4200311-200506

MARK PAGID 660

sub04465-05220

main04465-05210iZZT250;ZZT251..TEC;AZT250..SED..HTWC;ZZT251..5F..ENTRY;ZZT251..LHD..ELEGT;ZZT251..RHD..LB..4FC..ENTRY200311-200809

MARK PAGID 660

sub04465-05270

main04465-05220iADT251,AZT25#,CDT250..D4,DCR,DCRL200506-200507

MARK PAGID 660

sub04465-05221

main04465-05221iADT251,AZT25#,CDT250..D4,DCR,DCRL200507-200809

MARK PAGID 660

sub04465-05280

main04465-05270iAZT250,ZZT25#..HTWC200809

MARK PAGID 660

main04465-05280iADT25#,AZT25#..D4,DCR,DCRL200809

MARK PAGID 660

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-05010iAZT250..WG..HTWC;ZZT251..RHD..5F..ELEGT;ZZT251..LHD..4FC..ENTRY;ZZT251..RHD..LB..4FC..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200310-200411

sub04478-05050

main04478-05020iAZT251;AZT250..SED..D4;CDT250..LHD..ELEGT..DCR;CDT250..(ENTRY,TEC)..DCR;AZT250..(LB,WG)..TEC..D4;AZT250..LHD..(LB,WG)..ELEGT..D4200310-200411

sub04478-05050

main04478-05050iAZT251;AZT250..SED..D4;CDT250..LHD..ELEGT..DCR;CDT250..(ENTRY,TEC)..DCR;AZT250..(LB,WG)..TEC..D4;AZT250..LHD..(LB,WG)..ELEGT..D4200311-200408

sub04478-05090

main04478-05090iADT25#,AZT25#,ZZT25#200311-200604

main04479-05050iAZT25#,CDT250,ZZT25#200301-200310

sub04478-05050

04947FITTING KIT, DISC BRAKE, FRONT

main04947-05040iADT251,AZT25#,CDT250,ZZT25#200301-200811

sub04947-05050

main04947-05050iADT25#,AZT25#..D4,DCR,DCRL200809-200811

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-09020iADT251,AZT25#,CDT250,ZZT25#200301-200604

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-05030iADT251,AZT25#,CDT250,ZZT25#200301-200604

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iADT251,AZT25#,CDT250,ZZT25#200301-200604

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-05050iAZT250,ZZT25#..HTWC200301-200604

main47721-05060iADT25#,AZT25#..D4,DCR,DCRL200301-200604

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-05020iAZT250,ZZT25#..HTWC200301-200604

main47722-05030iADT25#,AZT25#..D4,DCR,DCRL200301-200604

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-05050iAZT250,ZZT25#..HTWC200301-200604

main47730-05060iADT251,AZT25#,CDT250..D4,DCR,DCRL200301-200604

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-05050iAZT250,ZZT25#..HTWC200301-200604

main47750-05060iADT251,AZT25#,CDT250..D4,DCR,DCRL200301-200604

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-05030iAZT25#,CDT250,ZZT25#200301-200604

main47781-0F010iADT251200504-200604

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525iADT25#,AZT25#,ZZT25#200301-200604

(L)

main90119-06227iADT251,AZT25#,CDT250,ZZT25#200301-200604

(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-05030iAZT25#,CDT250,ZZT25#200301-200604

main47782-0F010iADT251200504-200604
