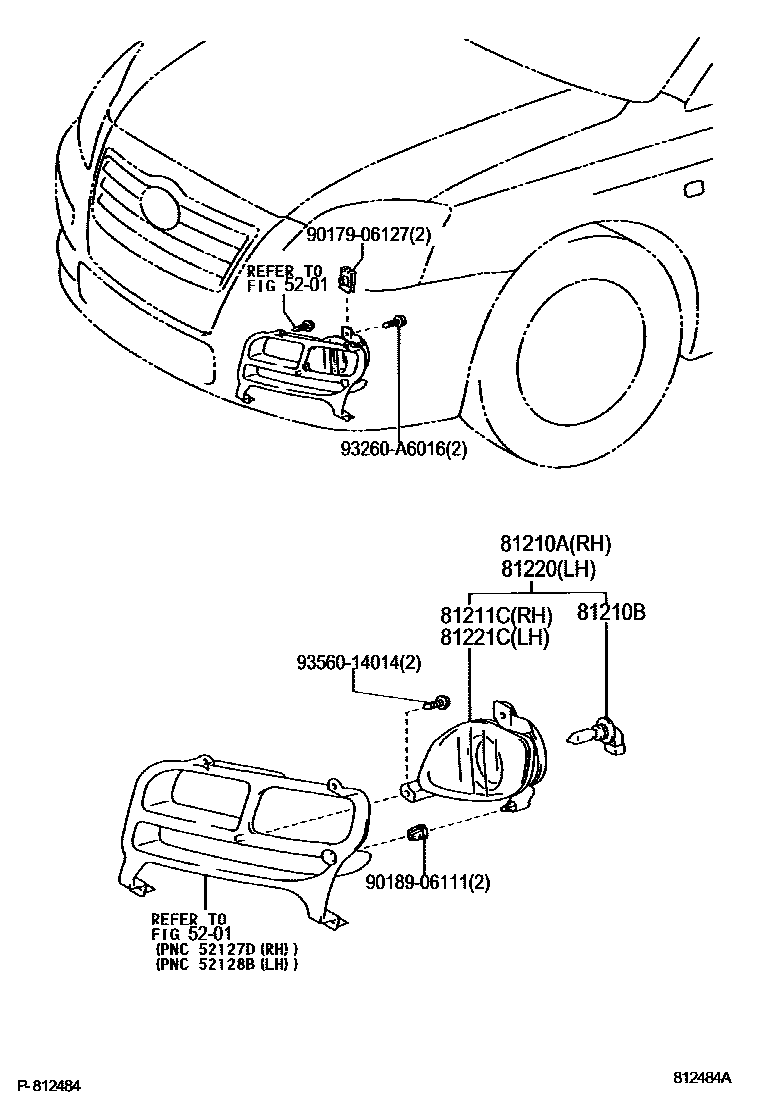

Toyota AVENSIS — FOG LAMP

0001 1 0002 1

5201

81210ALAMP ASSY, FOG, RH

main81210-05060iZZT25#..ELEGT,TEC;ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL)200301-200604

FRONT FOG LAMP-WITH

main81210-0D040iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200604-200611

ISRAEL PACKAGE

sub81210-0D041

main81210-0D040iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200604-200611

FRONT FOG LAMP-WITH

sub81210-0D041

main81210-0D041iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200612-200811

ISRAEL PACKAGE

sub81210-0D042

main81210-0D041iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200612-200811

FRONT FOG LAMP-WITH

sub81210-0D042

81210BBULB, FOG LAMP

main90981-13047iZZT25#..ELEGT,TEC;AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL)200301-200311

12V 51W,HALOGEN

main90981-13047iZZT25#..ELEGT,TEC;AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL)200301-200311

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

main90981-13075iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200604-200612

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,PHILIPS

main90981-13075iAZT250..HTWC;ADT25#,ZZT25#..ENTRY200604-200612

12V 55W,HALOGEN,PHILIPS

main90981-13081iAZT250..LHD..SED..4FC..D4200612-200811

12V 55W,HALOGEN

main90981-13081iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200604-200612

12V 55W,HALOGEN,OSRAM

main90981-13081iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200604-200612

12V 55W,HALOGEN,ISRAEL PACKAGE,OSRAM

main90981-13081iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200604-200612

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,OSRAM

main90981-13081iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200612-200811

12V 55W,HALOGEN,ISRAEL PACKAGE

main90981-13081iZZT25#..TEC;ADT25#,AZT25#..(PAG,TEC)..(D4,DCR,DCRL)200612-200811

12V 55W,HALOGEN,FRONT FOG LAMP-WITH

main90981-WD009iZZT25#..ELEGT,TEC;ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL)200311-200604

12V 51W,FRONT FOG LAMP-WITH

main90981-WD009iAZT250..HTWC;CDT250,ZZT25#..RHD..5F..ENTRY;ADT251,ZZT251..(4FC,6F)..ENTRY200311-200604

12V 51W

81211CLAMP UNIT, FOG LAMP, RH

main81211-05060iZZT25#..ELEGT,TEC;ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL)200301-200604

FRONT FOG LAMP-WITH

81220LAMP ASSY, FOG, LH

main81220-05060iAZT250..HTWC;CDT250,ZZT25#..RHD..5F..ENTRY;ADT251,ZZT251..(4FC,6F)..ENTRY200301-200604

FRONT FOG LAMP-WITH

main81220-0D040iAZT250..LHD..SED..4FC..D4200604-200611

ISRAEL PACKAGE

sub81220-0D041

main81220-0D040iAZT250..HTWC;ADT25#,ZZT25#..ENTRY200604-200611

FRONT FOG LAMP-WITH

sub81220-0D041

main81220-0D041iAZT250..LHD..SED..4FC..D4200612-200811

FRONT FOG LAMP-WITH

sub81220-0D042

main81220-0D041iAZT250..LHD..SED..4FC..D4200612-200811

ISRAEL PACKAGE

sub81220-0D042

81221CLAMP UNIT, FOG LAMP, LH

main81221-05060iAZT250..HTWC;CDT250,ZZT25#..RHD..5F..ENTRY;ADT251,ZZT251..(4FC,6F)..ENTRY200301-200604

FRONT FOG LAMP-WITH

9017906127

main90179-06127

9018906111

main90189-06111

93260A6016

main93260-A6016

9356014014

main93560-14014

10 parts on this diagram · 2 diagrams in section
