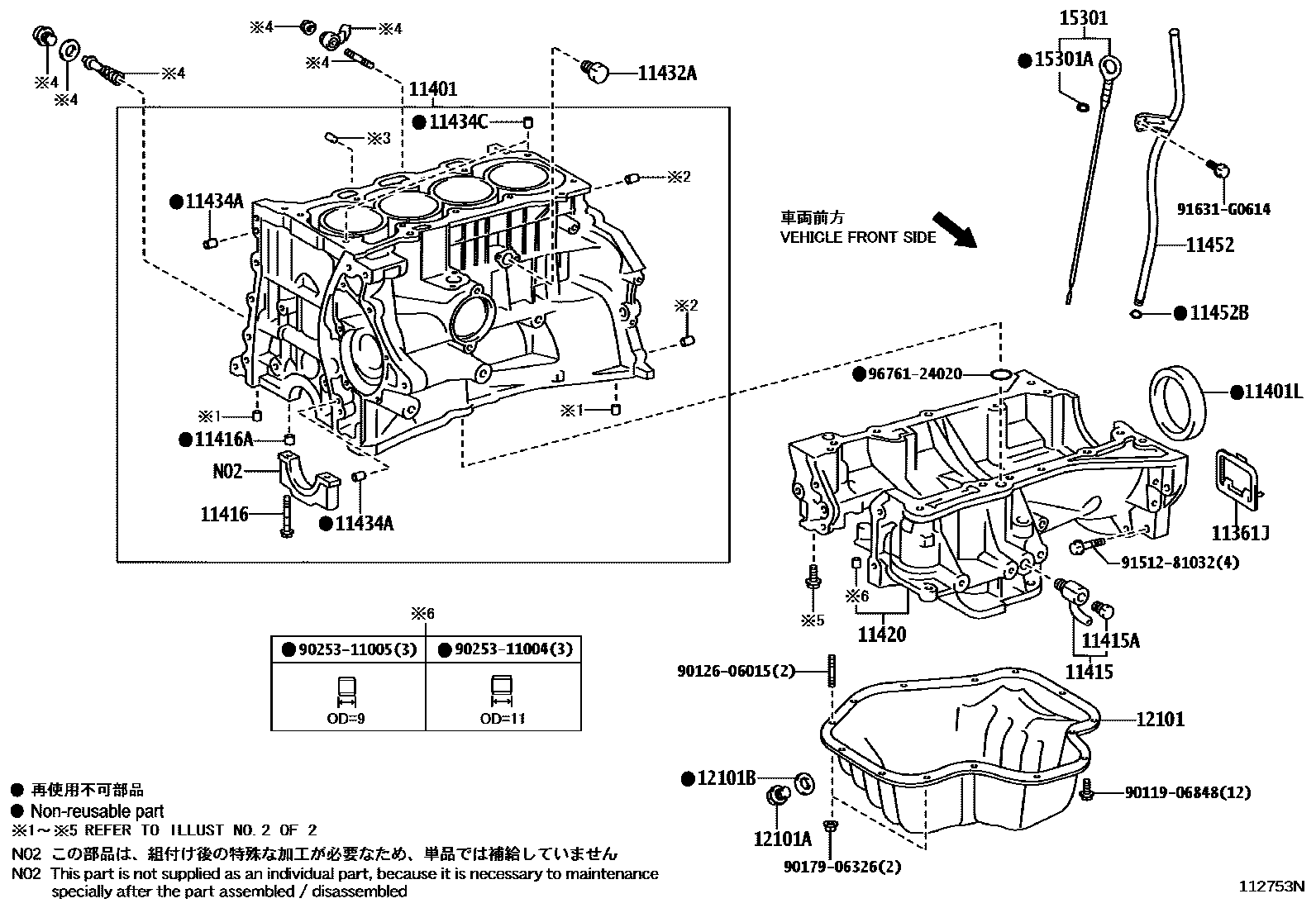

Toyota AVENSIS — CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0D010i1ZZFE,3ZZFE..ZZT25#200301-200604

(L)

sub11361-22021

main11361-22021i1ZZFE,3ZZFE..ZZT25#200301-200604

(J)

main11361-28010i1AZ#,2AZFSE..AZT25#200301-200604

11401BLOCK SUB-ASSY, CYLINDER

main11401-29745i1CDFTV..CDT250..LHD..ELEGT..DCR;1CDFTV..CDT250..(ENTRY,TEC)..DCR200303-200604

main11410-09030i3ZZFE..ZZT250200306-200311

(L)

sub11410-29156

sub16258-28030

sub16268-22101

sub16268-22161

main11410-09040i1ZZFE..ZZT251200306-200311

(L)

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22101

main11410-09180i1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY200311-200604

(L)

sub11410-29166

sub16258-28030

sub16268-22101

sub16268-22161

main11410-09250i2AD#..ADT251200508-200805

(L)

sub11410-09380

main11410-09380i1ADFTV,2AD#..ADT25#200806-200808

(L)

sub11410-09405

sub11410-09415

main11410-09405i1ADFTV..ADT250200808

(L)

sub11410-09406

main11410-09415i2AD#..ADT251200808

(L)

sub11410-09416

main11410-29105i2AZFSE..AZT251200309-200311

sub11410-29325

main11410-29115i1AZ#..AZT250200301-200311

sub11410-29195

main11410-29135i1ZZFE..ZZT251200301-200311

(J)

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22042

sub16268-22061

sub16268-22071

sub16268-22101

sub16268-22111

sub16268-22161

main11410-29155i3ZZFE..ZZT250200301-200311

(J)

sub11410-29156

sub16258-28030

sub16268-22091

sub16268-22101

sub16268-22161

main11410-29156i3ZZFE..ZZT250200311-200604

(J)

main11410-29165i1ZZFE..ZZT251..TEC;1ZZFE..ZZT251..5F..ENTRY;1ZZFE..ZZT251..LHD..ELEGT;1ZZFE..ZZT251..RHD..LB..4FC..ENTRY200311-200604

(J)

sub11410-29166

sub16258-28030

sub16268-22021

sub16268-22101

sub16268-22111

sub16268-22161

sub16268-22171

main11410-29185i2AZFSE..AZT251200311-200510

sub11410-29325

main11410-29195i1AZ#..AZT250200311-200510

sub11410-29315

main11410-29315i1AZ#..AZT250200510-200608

sub11410-29316

main11410-29316i1AZ#..AZT250200608

main11410-29325i2AZFSE..AZT251200510-200608

sub11410-29326

main11410-29326i2AZFSE..AZT251200608

main11410-29336i2AD#..ADT251200504-200508

sub11410-29355

main11410-29355i1ADFTV,2AD#..ADT25#200508-200805

(J)

sub11410-29395

main11410-29395i1ADFTV,2AD#..ADT25#200806-200808

(J)

sub11410-29405

sub11410-29415

main11410-29405i1ADFTV..ADT250200808

(J)

sub11410-29406

main11410-29415i2AD#..ADT251200808

(J)

sub11410-29416

11401LSEAL, ENGINE REAR OIL

main90080-31059i1ZZFE,3ZZFE..ZZT25#200301-200604

(L)

main90311-76001i1ZZFE,3ZZFE..ZZT25#200301-200604

(J)

sub90311-76003

main90311-89003i1AZ#,2AZFSE..AZT25#200301-200604

sub90311-89007

main90311-W0006i1ADFTV,2AD#..ADT25#200504-200807

sub90311-W0010

main90311-W0010i1ADFTV,2AD#..ADT25#200807

sub90311-W0020

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i2AD#..ADT251200303-200704

sub90910-09129

main90910-09107i1ZZFE,3ZZFE..ZZT25#200301-200604

main90910-09120i1AZ#..AZT250200301-200604

main90910-09129i1ADFTV,2AD#..ADT25#200704

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1CDFTV..CDT250200301-200604

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124i1AZ#,2AZFSE..AZT25#200301-200604

sub90910-02206

main90910-02135i1CDFTV..CDT250200303-200604

main90910-02157i2AD#..ADT251200504-200604

main91511-K0840i1ZZFE,3ZZFE..ZZT25#200301-200604

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1AZ#,2AZFSE..AZT25#200301-200604

11420CRANKCASE ASSY, STIFFENING

main11420-28011i2AZFSE..AZT251200309-200505

sub11420-0H020

main11420-28031i2AZFSE..AZT251200508-200811

sub11420-28032

main11420-28040i2AZFSE..AZT251200505-200508

sub11420-28031

main11421-28020i1AZ#..AZT250200301-200610

main11421-28031i1AZ#..AZT250200610-200811

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZ#..AZT250200301-200604

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074i1AZ#..AZT250200301-200302

L=15,OD=8

main90250-08120i1ADFTV,2AD#..ADT25#200302-200604

L=18,OD=8

main90250-08120i1AZ#,2AZFSE..AZT25#200504-200604

L=18,OD=8,NO.1

main90250-10030i2AD#..ADT251200504-200604

L=36,OD=10,NO.2

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08074i2AD#..ADT251200504-200604

L=15,OD=8

main90253-14003i1AZ#,2AZFSE..AZT25#200301-200604

L=12,OD=14

main90253-14004i1CDFTV..CDT250200303-200604

L=20,OD=14

11452GUIDE, OIL LEVEL GAGE

main11452-22030i1ZZFE,3ZZFE..ZZT25#200301-200809

sub11452-22031

sub11459-22010

main11452-22031i1ZZFE,3ZZFE..ZZT25#200809

main11452-26020i1ADFTV,2AD#..ADT25#200504-200604

main11452-27040i1CDFTV..CDT250..DCRL200309-200411

main11452-27060i1CDFTV..CDT250..DCR200303-200604

main11452-28010i1AZFSE,2AZFSE..AZT25#200309-200604

main11452-28011i1AZFE..AZT250200301-200510

main11452-28040i1AZFE..AZT250200510-200511

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1ZZFE,3ZZFE..ZZT25#200301-200604

main96741-19010i2AD#..ADT251200504-200604

12101PAN SUB-ASSY, OIL

main12101-0D020i1ZZFE,3ZZFE..ZZT25#200301-200811

(L)

sub12101-22024

main12101-22024i1ZZFE,3ZZFE..ZZT25#200301-200811

(J)

main12101-27011i1CDFTV..CDT250200303-200604

main12101-28040i2AZFSE..AZT251200309-200604

main12101-28050i1AZ#..AZT250200301-200604

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ZZFE,3ZZFE..ZZT25#200301-200604

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43037i1ZZFE,3ZZFE..ZZT25#200311-200604

(L)

main90080-43037i1CDFTV..CDT250..DCR200303-200604

main90430-12031i1ZZFE,3ZZFE..ZZT25#200301-200604

(J)

main90430-12031i1CDFTV..CDT250..DCRL200309-200411

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0D010i1ZZFE,3ZZFE..ZZT25#200301-200507

(L)

sub15301-0D011

main15301-0D011i1ZZFE,3ZZFE..ZZT25#200507-200604

(L)

main15301-22030i1ZZFE,3ZZFE..ZZT25#200301-200507

(J)

sub15301-22050

main15301-22050i1ZZFE,3ZZFE..ZZT25#200507-200604

(J)

main15301-26020i2AD#..ADT251200504-200604

main15301-26050i1ADFTV..ADT250200605

main15301-27040i1CDFTV..CDT250200303-200604

main15301-28020i1AZ#..AZT250200510-200604

main15301-28030i2AZFSE..AZT251200510-200604

sub15301-28031

main15301-28041i2AZFSE..AZT251200309-200510

main15301-28050i1AZ#..AZT250200301-200304

sub15301-28051

main15301-28051i1AZ#..AZT250200304-200510

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AZFSE..AZT251200301-200604

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025311004

main90253-11004

9025311005

main90253-11005

9151281032

main91512-81032

91631G0614

main91631-G0614

9676124020

main96761-24020

26 parts on this diagram · 11 diagrams in section
