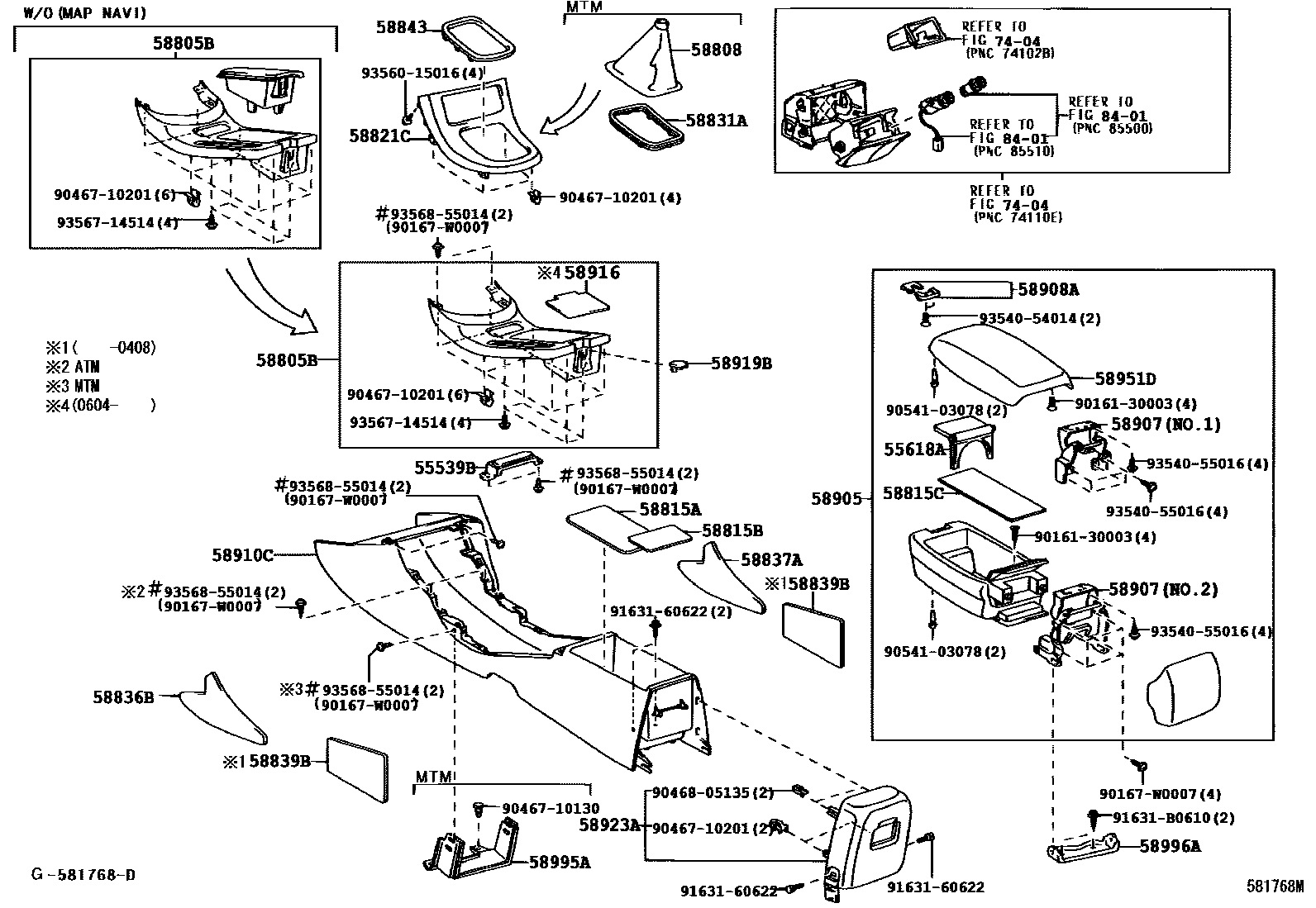

Toyota AVENSIS — CONSOLE BOX & BRACKET
55539BCOVER, SPARE SWITCH HOLE, NO.2
DK.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#; W(FRONT SEAT HEATER),IVORY,TRIM0#
55618AHOLDER, CONSOLE BOX CUP
58805BPANEL SUB-ASSY, CONSOLE, LOWER
main58805-05010-A0iCDT250..LHD..ELEGT..DCR;ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,ZZT25#..LHD..ELEGT200301-200604
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
MAP NAVI,IVORY,TRIM0#
main58805-05020-B0iAZT250..LHD..(LB,WG);AZT250..LHD..SED..D4;CDT250..LHD..(ELEGT,TEC)..DCR;ADT251,AZT251,ZZT251..LHD..(ELEGT,TEC)200301-200604
MAP NAVI,DK.GRAY,TRIM1#
main58805-05040-A0supersedes 58805-05031-A0iCDT250..RHD..ELEGT..DCR;ADT251,AZT25#,ZZT251..RHD..ELEGT200301-200604
MAP NAVI,IVORY,TRIM0#
MAP NAVI,DK.GRAY,TRIM1#
MAP NAVI,DK.GRAY,TRIM1#
MAP NAVI,GREGE,TRIM4#
MAP NAVI,DK.GRAY,TRIM1#
MAP NAVI,GREGE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
58815ACARPET, CONSOLE BOX
58815BCARPET, CONSOLE BOX
58815CCARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58836BPAD, CONSOLE BOX SILENCER, NO.1
58837APAD, CONSOLE BOX SILENCER, NO.2
58839BCOVER, CONSOLE BOX HOLE, NO.2
58843BEZEL, SHIFTING HOLE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DK.GRAY,TRIM1#
main58905-05040-A2iCDT250..ELEGT..DCR;CDT250..LHD..ELEGT..DCRL;ADT251,AZT25#,ZZT25#..ELEGT200301-200604
IVORY,TRIM0#
DK.GRAY,TRIM1#
main58905-05050-B5iADT251..DCRL; AZT250..SED;ADT250..LHD..TEC;ADT251,AZT251..TEC;AZT250..LHD..(LB,WG); AZT251..LHD;ADT25#,AZT250..TEC200604
DK.GRAY,TRIM1#; LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#; LEATHER & POWER SEAT,TECHNICAL,DK.GRAY,TRIM1#
main58905-05050-E0iADT251..DCRL; AZT250..SED;ADT250..LHD..TEC;ADT251,AZT251..TEC;AZT250..LHD..(LB,WG); AZT251..LHD;ADT25#,AZT250..TEC200604
GREGE,TRIM4#; LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#; LEATHER & POWER SEAT,TECHNICAL,GREGE,TRIM4#
DARK GREY,TRIM1#; FABRIC & MANUAL SEAT,TECHNICAL&E FABRIC,DARK GREY,TRIM1#
main58905-05070-E0iAZT250..SED;AZT250..LHD..(LB,WG);ADT250,ZZT251..LHD..TEC;ADT251,AZT251,ZZT250..TEC200604
GREGE,TRIM4#
HIGH GRADE PACKAGE(LEATHER SEAT)
HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM01
main58905-05050-A2iCDT250..LHD..ELEGT..DCRL; CDT250..RHD..ELEGT..DCR;AZT250..RHD..(LB,WG)..ELEGT200410-200411
HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM01
HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1#
HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM16
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
NO.1
main58907-05020iCDT250..(ELEGT,TEC)..DCR;CDT250..LHD..ELEGT..DCRL;ADT251,AZT25#,ZZT25#..ELEGT,TEC200301-200604
NO.2
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
main58911-05070-A0iCDT250..ELEGT..DCR;ADT251,AZT25#,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY200301-200604
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
58916MAT, BOX BOTTOM
MAP NAVI,DK.GRAY,TRIM1#
MAP NAVI,GREGE,TRIM4#
58919BPLATE, CONSOLE BOX
DK.GRAY,TRIM1#
58923APANEL, CONSOLE REAR END
DK.GRAY,TRIM1#
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
DK.GRAY,TRIM1#
main58951-05040-A0iCDT250..ELEGT..DCR;CDT250..LHD..ELEGT..DCRL;ADT251,AZT25#,ZZT25#..ELEGT200301-200604
IVORY,TRIM0#
main58951-05040-B0iCDT250..ELEGT..DCR;CDT250..LHD..ELEGT..DCRL;ADT251,AZT25#,ZZT25#..ELEGT200301-200604
DK.GRAY,TRIM1#
main58951-05050-B3iADT251..DCRL; AZT250..SED;ADT250..LHD..TEC;ADT251,AZT251..TEC;AZT250..LHD..(LB,WG); AZT251..LHD;ADT25#,AZT250..TEC200604
DK.GRAY,TRIM1#; LEATHER & POWER SEAT,ELEGANT,DK.GRAY,TRIM1#; LEATHER & POWER SEAT,TECHNICAL,DK.GRAY,TRIM1#
main58951-05050-E0iADT251..DCRL; AZT250..SED;ADT250..LHD..TEC;ADT251,AZT251..TEC;AZT250..LHD..(LB,WG); AZT251..LHD;ADT25#,AZT250..TEC200604
GREGE,TRIM4#; LEATHER & POWER SEAT,ELEGANT,GREGE,TRIM4#; LEATHER & POWER SEAT,TECHNICAL,GREGE,TRIM4#
DARK GREY,TRIM1#; FABRIC & MANUAL SEAT,TECHNICAL&E FABRIC,DARK GREY,TRIM1#
main58951-05070-E0iAZT250..SED;AZT250..LHD..(LB,WG);ADT250,ZZT251..LHD..TEC;ADT251,AZT251,ZZT250..TEC200604
GREGE,TRIM4#
HIGH GRADE PACKAGE(LEATHER SEAT)
HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0#
main58951-05050-A1iADT251,AZT251..ELEGT;AZT250..SED..ELEGT..D4;CDT250..LHD..ELEGT..DCR;AZT250..LHD..(LB,WG)..ELEGT..D4200410-200604
HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0#
HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1#
HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404ASH RECEPTACLE
8401SWITCH & RELAY & COMPUTER
9016130003
main90161-30003
90167W0007
main90167-W0007
9046710130
main90467-10130
9046710201
main90467-10201
9046805135
main90468-05135
9054103078
main90541-03078
9163160622
main91631-60622
91631B0610
main91631-B0610
9354054014
main93540-54014
9354055016
main93540-55016
9356015016
main93560-15016
9356714514
main93567-14514
9356855014
main93568-55014
38 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota AVENSIS
This section contains 38 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota AVENSIS. Key components include: COVER, SPARE SWITCH HOLE, NO.2, HOLDER, CONSOLE BOX CUP, PANEL SUB-ASSY, CONSOLE, LOWER, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX.
