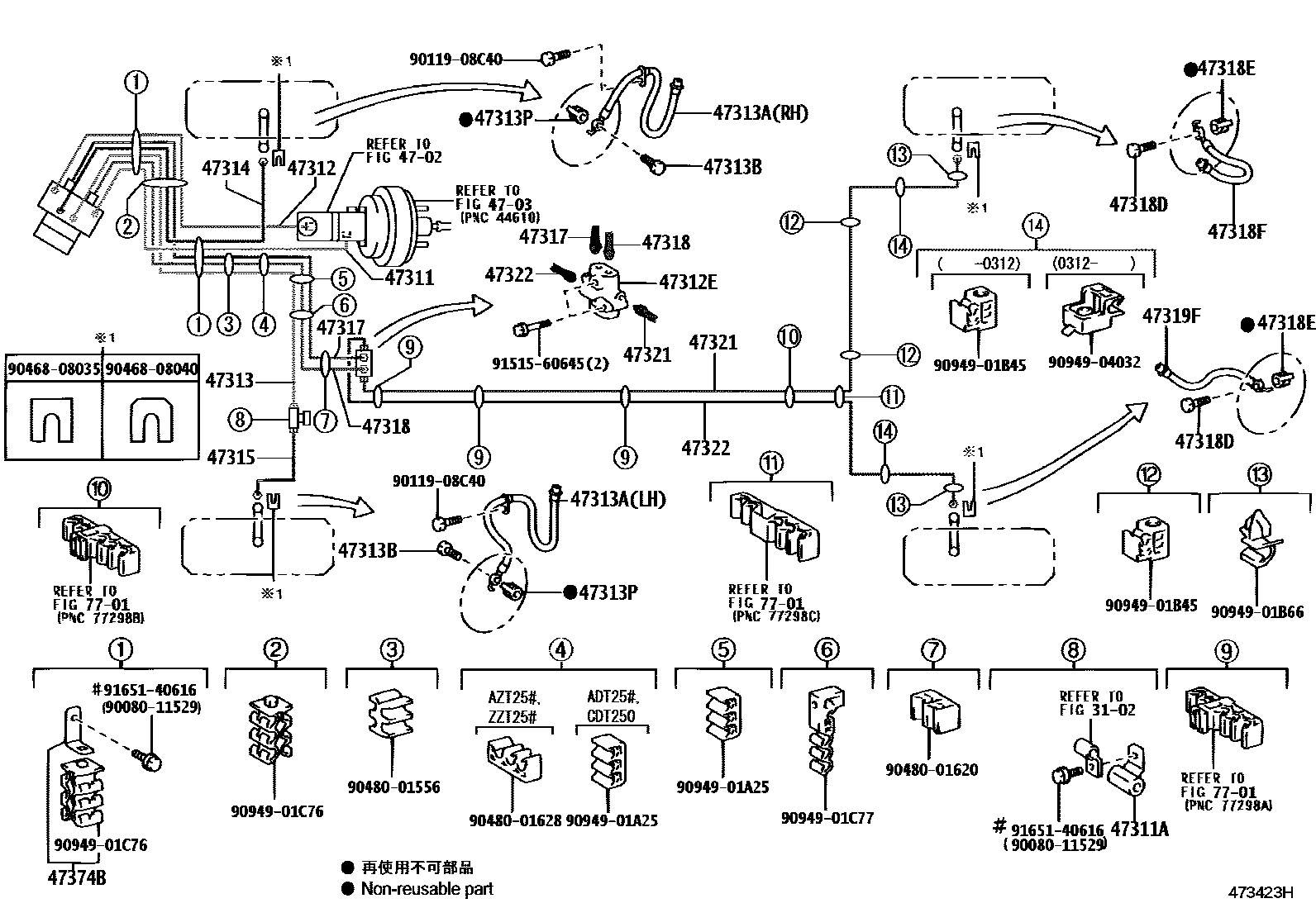

Toyota AVENSIS — BRAKE TUBE & CLAMP

0001 1W(VSC) 0004 1W(VSC) 0007 1 0009 1 0011 1 0013 1W(VSC)

3102

4702

4703

47311TUBE, FRONT BRAKE, NO.1

main47311-05180iZZT251..RHD200301-200604

main47311-05210iZZT250..RHD200402-200604

VSC-WITH

main47311-05210iADT251,AZT25#..RHD200301-200604

main47311-05210iADT25#,AZT25#,ZZT251..RHD200604

VEHICLE STABILITY CONT-WITH

main47311-05220iAZT250,ZZT250..LHD..HTWC200301-200604

main47311-05230iCDT250..LHD200303-200604

main47311-05240iZZT251..LHD200402-200604

VSC-WITH

main47311-05240iAZT25#..LHD..D4200301-200604

main47311-05240iAZT250..LHD..D4;AZT251,ZZT251..LHD200604

VEHICLE STABILITY CONT-WITH

main47311-05250iADT251..LHD200504-200604

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10227iADT251,AZT25#,CDT250,ZZT25#..RHD200502-200604

main90412-10667iAZT25#,CDT250,ZZT25#..RHD200301-200501

sub90412-10227

47312TUBE, FRONT BRAKE, NO.2

main47312-05040iZZT251..RHD200301-200604

main47312-05050iAZT25#..RHD200301-200604

main47312-05060iAZT250,ZZT250..LHD..HTWC200301-200604

main47312-05070iCDT250..LHD200303-200604

main47312-05080iZZT250..LHD200604

VEHICLE STABILITY CONT-WITH

main47312-05080iAZT25#..LHD..D4200301-200604

main47312-05080iZZT251..LHD200402-200604

VSC-WITH

main47312-05090iADT25#..LHD200504-200604

main47312-05100iZZT250..RHD200402-200604

VSC-WITH

main47312-05100iZZT250..RHD200604

VEHICLE STABILITY CONT-WITH

main47312-05110iADT251..RHD200504-200604

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12082iADT251,AZT25#,CDT250,ZZT25#200301-200604

47313TUBE, FRONT BRAKE, NO.3

main47313-05160iZZT250..RHD200301-200604

main47313-05170iCDT250..RHD200303-200604

main47313-05180iZZT250..RHD200604

VEHICLE STABILITY CONT-WITH

main47313-05180iAZT25#..RHD200301-200604

main47313-05180iZZT251..RHD200402-200604

VSC-WITH

main47313-05190iADT25#..RHD200504-200604

main47313-05200iAZT250,ZZT250..LHD..HTWC200301-200604

main47313-05210iCDT250..LHD200303-200604

main47313-05220iZZT251..LHD200402-200604

VSC-WITH

main47313-05220iAZT25#..LHD..D4200301-200604

main47313-05220iAZT250..LHD..D4;AZT251,ZZT251..LHD200604

VEHICLE STABILITY CONT-WITH

main47313-05240iADT251..LHD200504-200604

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94199iADT25#,AZT25#,ZZT25#200602-200610

(L),RH

sub90947-02D22

main90080-94199iADT251,AZT25#,CDT250,ZZT25#200301-200602

RH

sub90947-02D22

main90080-94200iADT251,AZT25#,CDT250,ZZT25#200301-200602

LH

sub90947-02D23

main90080-94200iADT251,AZT25#,CDT250,ZZT25#200602-200610

(L),LH

sub90947-02D23

main90947-02D22iADT251,AZT25#,CDT250,ZZT25#200602-200604

(J),RH

main90947-02D23iADT25#,AZT25#,ZZT25#200602-200604

(J),LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iADT251,AZT25#,CDT250,ZZT25#200301-200604

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iADT25#,AZT25#,ZZT25#200301-200604

47314TUBE, FRONT BRAKE, NO.4

main47314-05090iZZT250..RHD200301-200604

main47314-05100iADT251,AZT25#..RHD200301-200604

main47314-05100iZZT251..RHD200402-200604

VSC-WITH

main47314-05100iZZT250..RHD200604

VEHICLE STABILITY CONT-WITH

main47314-05120iAZT250,CDT250,ZZT250..LHD..(DCR,DCRL,HTWC)200301-200604

main47314-05130iZZT250..LHD200402-200604

VSC-WITH

main47314-05130iADT251,AZT25#..LHD..(D4,DCR,DCRL)200301-200604

main47314-05130iAZT250..LHD..D4;ADT25#,AZT251,ZZT251..LHD200604

VEHICLE STABILITY CONT-WITH

47315TUBE, FRONT BRAKE, NO.5

main47315-02160iADT25#,AZT25#,ZZT25#..RHD200301-200604

main47315-05150iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200604

47317TUBE, FRONT BRAKE, NO.7

main47317-05090iZZT251..RHD200301-200604

main47317-05100iCDT250..RHD200303-200604

main47317-05110iZZT250..RHD200402-200604

VSC-WITH

main47317-05110iAZT25#..RHD200301-200604

main47317-05110iAZT25#,ZZT251..RHD200604

VEHICLE STABILITY CONT-WITH

main47317-05120iADT251..RHD200504-200604

main47317-05130iAZT250,ZZT250..LHD..HTWC200301-200604

main47317-05140iCDT250..LHD200303-200604

main47317-05150iAZT250..LHD..D4;AZT251,ZZT251..LHD200604

VEHICLE STABILITY CONT-WITH

main47317-05150iZZT251..LHD200402-200604

VSC-WITH

main47317-05150iAZT25#..LHD..D4200301-200604

main47317-05170iADT25#..LHD200504-200604

47318TUBE, FRONT BRAKE, NO.8

main47318-05090iZZT250..RHD200301-200604

main47318-05100iCDT250..RHD200303-200604

main47318-05110iAZT25#,ZZT251..RHD200604

VEHICLE STABILITY CONT-WITH

main47318-05110iZZT250..RHD200402-200604

VSC-WITH

main47318-05110iAZT25#..RHD200301-200604

main47318-05120iADT25#..RHD200504-200604

main47318-05130iZZT251..LHD200301-200604

main47318-05140iCDT250..LHD200303-200604

main47318-05150iZZT250..LHD200604

VEHICLE STABILITY CONT-WITH

main47318-05150iZZT251..LHD200402-200604

VSC-WITH

main47318-05150iAZT25#..LHD..D4200301-200604

main47318-05170iADT251..LHD200504-200604

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iADT251,AZT25#,CDT250,ZZT25#200301-200604

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iADT251,AZT25#,CDT250,ZZT25#200301-200604

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E85iADT251,AZT25#,CDT250,ZZT25#200301-200604

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E85iADT251,AZT25#,CDT250,ZZT25#200301-200604

47321TUBE, REAR BRAKE, NO.1

main47321-05070iADT251,AZT25#,CDT250,ZZT25#200301-200604

47322TUBE, REAR BRAKE, NO.2

main47322-05070iADT251,AZT25#,CDT250,ZZT25#200301-200604

47374BCLAMP, BRAKE TUBE, NO.4

main47374-13020iADT251,AZT25#..LHD..(D4,DCR,DCRL)200301-200604

main47374-13020iZZT251..LHD200402-200604

VSC-WITH

main47374-13020iAZT250..LHD..D4;ADT25#,AZT251,ZZT251..LHD200604

VEHICLE STABILITY CONT-WITH

7701

9008011529

main90080-11529

9011908C40

main90119-08C40

9046808035

main90468-08035

9046808040

main90468-08040

9048001556

main90480-01556

9048001620

main90480-01620

9048001628

main90480-01628

9094901A25

main90949-01A25

9094901B45

main90949-01B45

9094901B66

main90949-01B66

9094901C76

main90949-01C76

9094901C77

main90949-01C77

9094904032

main90949-04032

9151560645

main91515-60645

9165140616

main91651-40616

38 parts on this diagram · 6 diagrams in section
