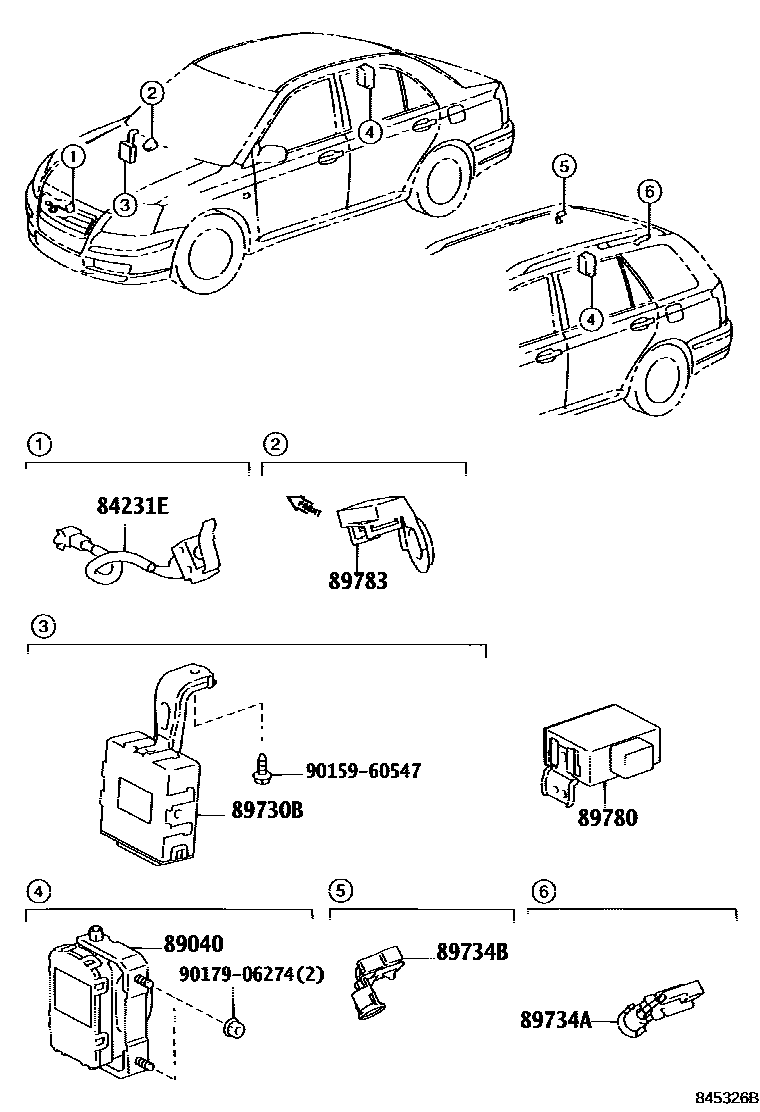

Toyota AVENSIS — ANTI-THEFT DEVICE

0001 1 0002 1

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-12040iADT251,AZT25#,CDT250..RHD..(ELEGT,TEC)200301-200604

HIGH GRADE PACKAGE(LEATHER SEAT)&ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main84231-12040iADT251,AZT25#,CDT250..RHD..(ELEGT,TEC)200301-200604

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main84231-12040iADT25#,AZT25#,ZZT25#..RHD200604

89040SIREN ASSY, THEFT WARNING

main89040-02010iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

HIGH GRADE PACKAGE(LEATHER SEAT)&ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main89040-02010iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main89040-02010iADT25#,AZT25#,ZZT25#..RHD200604

89730BCOMPUTER ASSY, THEFT WARNING

main89730-05020iADT251..RHD..DCRL200604

LEATHER & POWER SEAT,ELEGANT

main89730-05020iADT25#,AZT250..RHD..TEC200604

LEATHER & POWER SEAT,TECHNICAL

main89730-05030iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

HIGH GRADE PACKAGE(LEATHER SEAT)&ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main89730-05030iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main89730-05030iADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)200604

89734ASENSOR, AUTO DOOR SPEED CONTROL, NO.1

main89734-20010iADT251,AZT250,CDT250,ZZT251..RHD..WG200301-200604

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main89734-20010iADT25#,AZT250,ZZT251..RHD..WG200604

89734BSENSOR, AUTO DOOR SPEED CONTROL, NO.2

main89734-20020iADT251,AZT250,CDT250,ZZT251..RHD..WG200301-200604

ANTI-THEFT SYSTEM-IMMOBI+DOUBLE LOCK

main89734-20020iADT25#,AZT250,ZZT251..RHD..WG200604

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-05030iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200712

sub89780-05031

main89780-05031iADT25#,AZT25#,ZZT25#..RHD200801

main89780-05040iAZT250..HTWC200301-200712

ANTI-THEFT SYSTEM-IMMOBI

sub89780-05041

main89780-05041iAZT250..LHD..D4;ADT25#,AZT251,ZZT25#..LHD200801

ANTI-THEFT SYSTEM-IMMOBI

89783AMPLIFIER, TRANSPONDER KEY

main89783-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

9015960547

main90159-60547

9017906274

main90179-06274

9 parts on this diagram · 2 diagrams in section
