Toyota AVENSIS — ANTENNA

0001 1 0002 1 0003 1

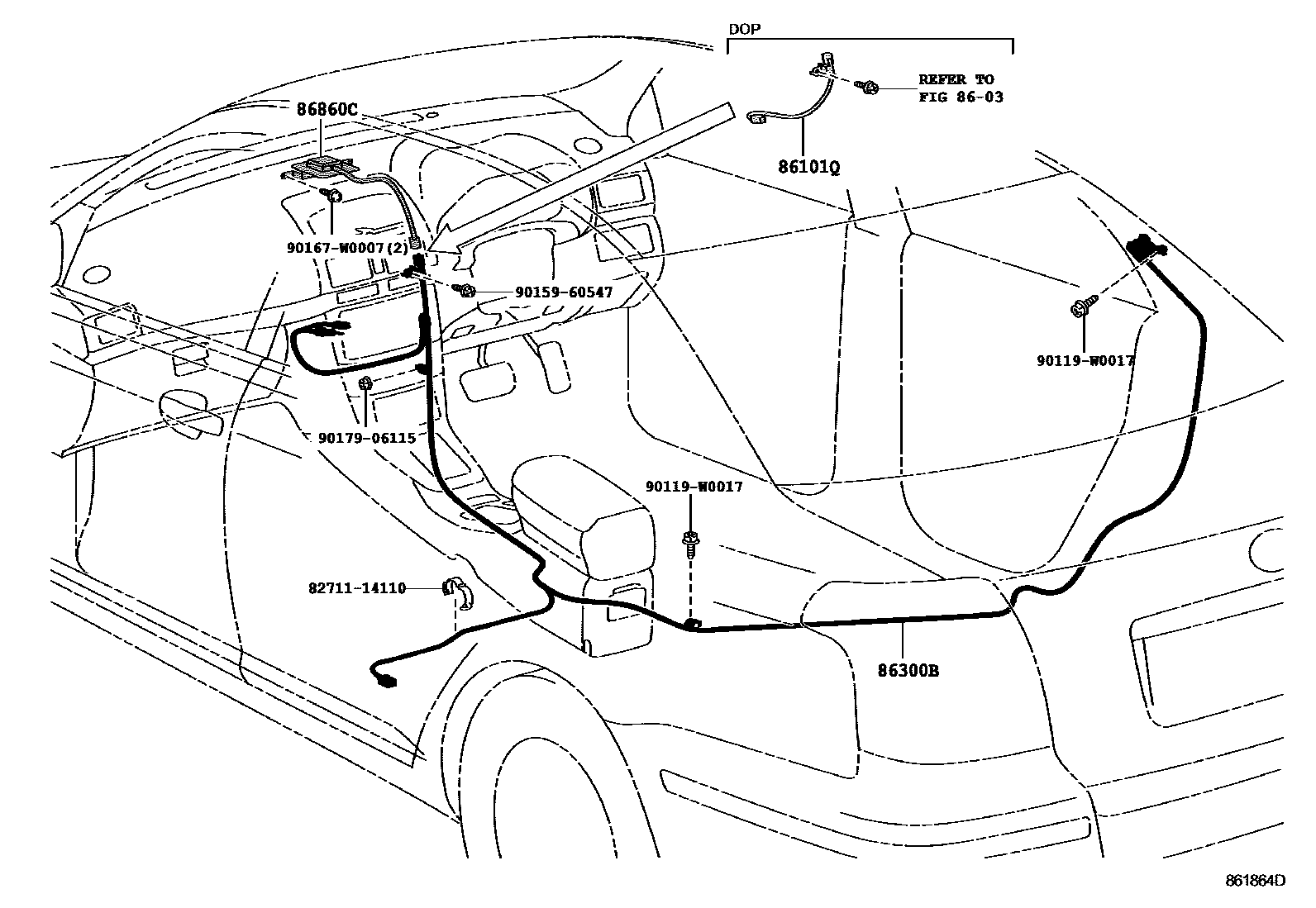

8603

86101CORD SUB-ASSY, ANTENNA

main86101-2B010iADT25#,AZT25#,ZZT25#..LB200604

MAP NAVI

main86101-2B010iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

86101QCORD SUB-ASSY, ANTENNA, NO.4

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-05080iCDT250..RHD..DCRL200301-200604

main86300-05080iADT25#,AZT25#..RHD..SED..(PAG,TEC)200604

MAP NAVI

main86300-05100iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

main86300-05100iADT25#,AZT25#,ZZT25#..LB200604

MAP NAVI

main86300-05110iAZT250,CDT250,ZZT251..RHD..WG200301-200407

sub86300-05111

main86300-05111iADT251,AZT250,CDT250,ZZT251..RHD..WG200408-200604

main86300-05111iADT25#,AZT250,ZZT251..RHD..WG200604

MAP NAVI

main86300-05130iZZT251..LHD..SED..TEC;ADT25#,AZT25#..LHD..SED..(PAG,TEC)..(D4,DCR,DCRL)200604

MAP NAVI

main86300-05130iCDT250..LHD..DCRL200301-200604

main86300-05150iAZT25#,CDT250,ZZT25#..LHD..WG200301-200407

sub86300-05151

main86300-05151iADT251,AZT25#,CDT250,ZZT25#..LHD..WG200408-200604

main86300-05151iADT25#,AZT25#,ZZT251..LHD..WG..(PAG,TEC)200604

MAP NAVI

86860CANTENNA ASSY, NAVIGATION

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

90119W0017

main90119-W0017

9015960547

main90159-60547

90167W0007

main90167-W0007

9017906115

main90179-06115

10 parts on this diagram · 3 diagrams in section
