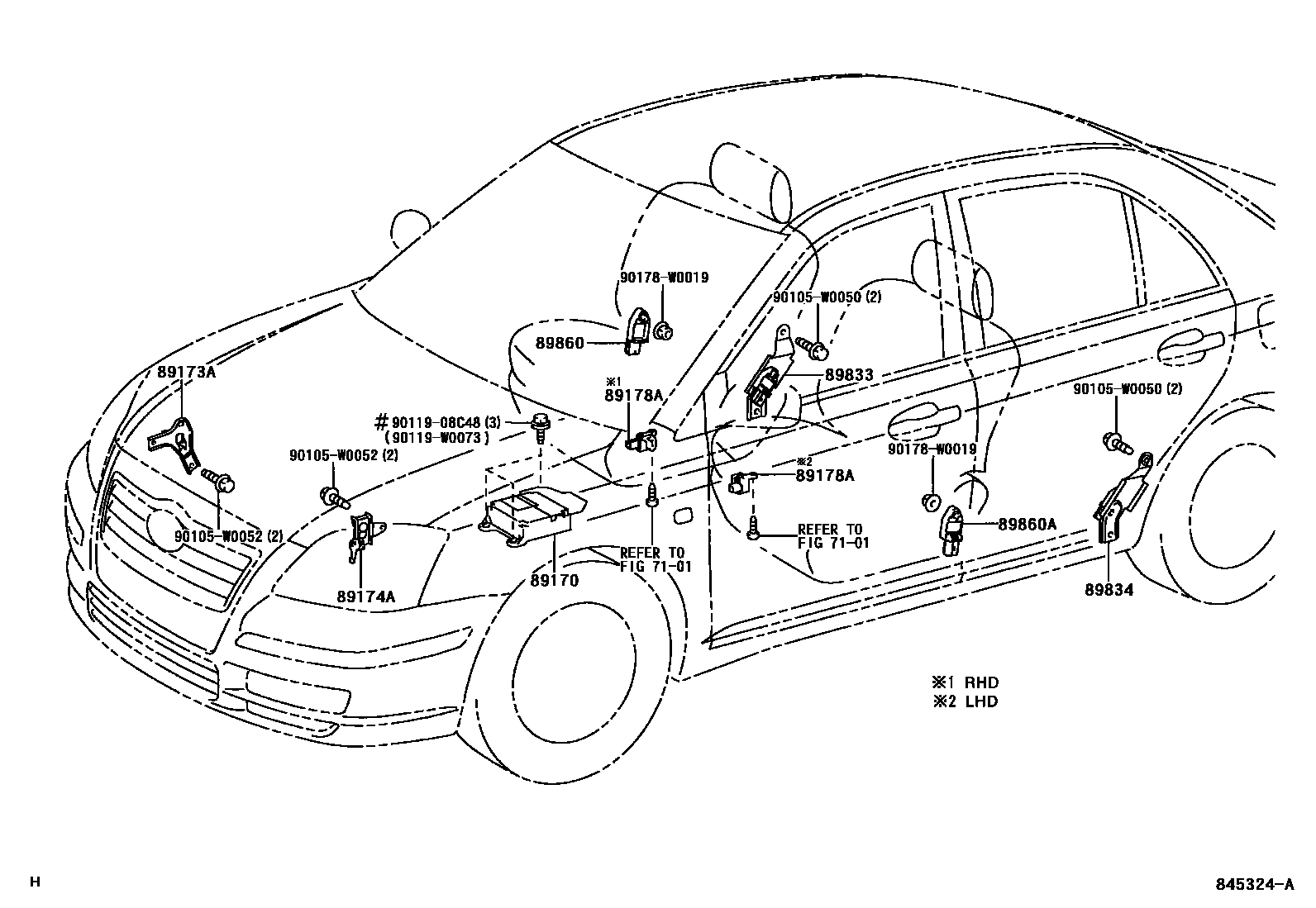

Toyota AVENSIS — AIR BAG

0001 1 0002 1

7101

89170SENSOR ASSY, AIRBAG

main89170-05110iAZT250..HTWC200301-200502

SRS AIR BAG-D,P & SIDE & KNEE

sub89170-05111

main89170-05111iCDT250,ZZT25#..LHD..ENTRY200503-200604

SRS AIR BAG-D,P & SIDE & KNEE

sub89170-05112

main89170-05120iCDT250..LHD..DCRL200301-200408

sub89170-05121

main89170-05120iAZT250..LHD..D4;AZT251,CDT250,ZZT25#..LHD..(D4,DCR,HTWC)200301-200502

SRS AIR BAG-D,P & SIDE & KNEE & CURTAIN

sub89170-05121

main89170-05121iAZT250..LHD..D4;ADT251,AZT251,CDT250,ZZT25#..LHD200503-200604

SRS AIR BAG-D,P & SIDE & KNEE & CURTAIN

sub89170-05122

main89170-05160iAZT25#,CDT250,ZZT25#..RHD..(D4,DCR,HTWC)200301-200502

sub89170-05161

main89170-05161iADT251,AZT25#,CDT250,ZZT25#..RHD200503-200604

main89170-05190iADT25#,AZT25#,ZZT25#..RHD200604

main89170-05210iAZT250..HTWC200604

ISRAEL PACKAGE

main89170-05210iAZT250..HTWC200604

SRS AIR BAG-DRIVER & PASSENGER & SIDE & KNEE

main89170-05220iAZT250..LHD..D4;ADT25#,AZT251,ZZT25#..LHD200604

SRS AIR BAG-DRIVER & PASSENGER &SIDE &KNEE& CURTAIN

89173ASENSOR, AIRBAG, FRONT RH

main89173-05030iCDT250..DCRL200301-200604

main89173-09340iADT25#,AZT25#,ZZT25#200604

89174ASENSOR, AIRBAG, FRONT LH

main89174-05010iCDT250..DCRL200301-200604

main89174-09060iADT25#,AZT25#,ZZT25#200604

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iADT25#,AZT25#,ZZT25#..LHD200301-200604

main89178-0W010iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

89833SENSOR, AIRBAG, REAR RH

main89833-05010iCDT250..DCRL200301-200408

main89833-05010iCDT250,ZZT25#..DCR,HTWC;ADT251,AZT25#..D4,DCR,DCRL200301-200604

SRS AIR BAG-D,P & SIDE & KNEE & CURTAIN

main89833-05020iAZT250..HTWC200604

SRS AIR BAG-DRIVER & PASSENGER &SIDE &KNEE& CURTAIN

89834SENSOR, AIRBAG, REAR LH

main89834-05010iCDT250,ZZT25#..DCR,HTWC;ADT251,AZT25#..D4,DCR,DCRL200301-200604

SRS AIR BAG-D,P & SIDE & KNEE & CURTAIN

main89834-05010iCDT250..DCRL200301-200408

main89834-05020iZZT25#;ADT25#,AZT25#..D4,DCR,DCRL200604

SRS AIR BAG-DRIVER & PASSENGER &SIDE &KNEE& CURTAIN

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02020iADT25#,AZT25#,ZZT25#200604

main89831-05010iCDT250..DCRL200301-200604

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02020iADT25#,AZT25#,ZZT25#200604

main89831-05010iCDT250..DCRL200301-200604

90105W0050

main90105-W0050

90105W0052

main90105-W0052

9011908C48

main90119-08C48

90119W0073

main90119-W0073

90178W0019

main90178-W0019

14 parts on this diagram · 2 diagrams in section
