Toyota AVENSIS — ACCELERATOR LINK

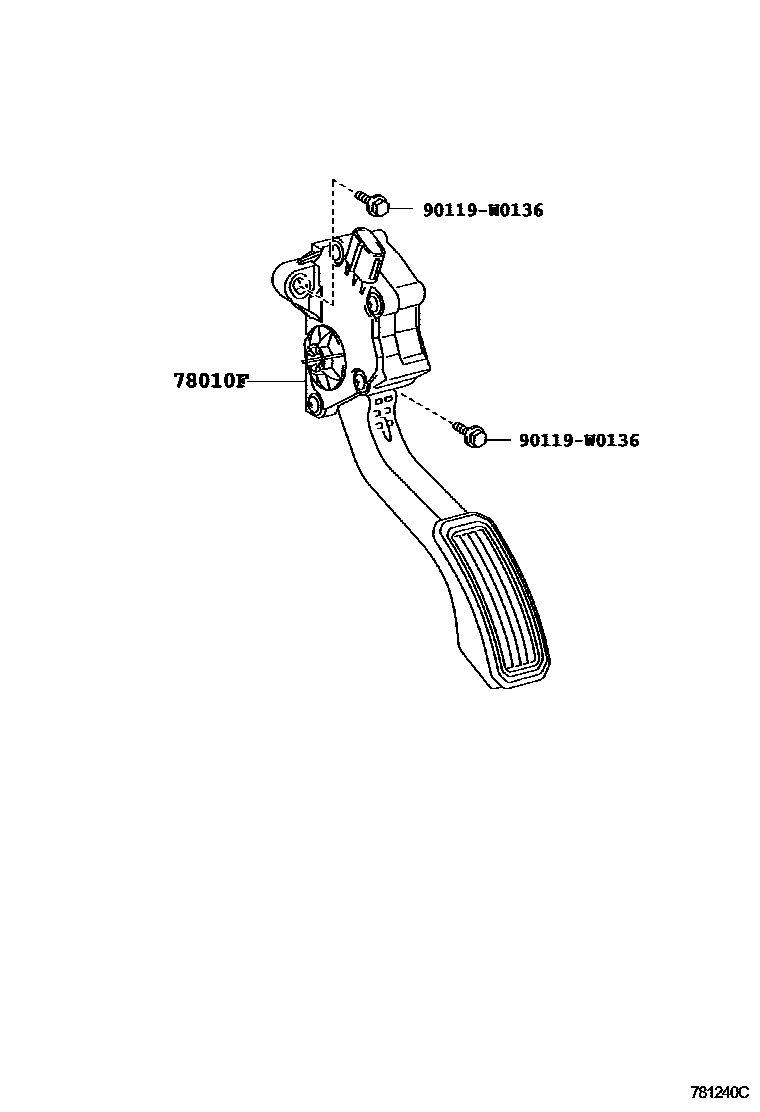

78010FPEDAL ASSY, ACCELERATOR
main78110-02010iADT27#,ZRT27#..LHD..(4FC,6F)..(E,F,N); ADT27#,ZRT271,272..LHD..6F..(E,F)..(DCR,HTWVM); ADT271,ZRT272..LHD..6F..(G,V); ADT271,ZRT272..LHD..WG..6F..G200811-200912
CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITH; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CZECH SPEC&CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&ITALY SPEC&CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&SLOVAKIA SPEC&CRUISE CONTROL-WITHOUT
main78110-02011iADT27#,ZRT27#..LHD..(4FC,6F)..(E,F,N); ADT27#,ZRT271,272..LHD..6F..(E,F)..(DCR,HTWVM); ADT271,ZRT272..LHD..6F..(G,V)201001-201104
CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITH; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITHOUT
main78110-02012iADT27#,ZRT27#..LHD..(4FC,6F)..(E,N); ADT27#,ZRT27#..LHD..6F..E..(DCR,HTWVM); ADT271,ZRT272..LHD..6F..(G,V); ADT271,ZRT272..LHD..WG..6F..G201105-201111
CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITH; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CZECH SPEC&CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&ITALY SPEC&CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&SLOVAKIA SPEC&CRUISE CONTROL-WITHOUT
main78110-02020iADT27#,ZRT271,272..LHD..6F..(E,F)..(DCR,HTWVM); ADT27#,ZRT271,272..LHD..WG..6F..E; ADT271,ZRT272..LHD..WG..6F..G; ZRT271,272..LHD..CVT;ADT271,ZRT272..LHD..(6F,6FC)..(G,V)200811-200912
CRUISE CONTROL-WITH; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CZECH SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CZECH SPEC&CRUISE CONTROL-WITH; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&ITALY SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&ITALY SPEC&CRUISE CONTROL-WITH; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&SLOVAKIA SPEC; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&SLOVAKIA SPEC&CRUISE CONTROL-WITH
main78110-02021iADT27#,ZRT271,272..LHD..6F..(E,F)..(DCR,HTWVM); ZRT271,272..LHD..CVT;ADT271,ZRT272..LHD..(6F,6FC)..(G,V)201001-201104
CRUISE CONTROL-WITH
main78110-02022iADT27#,ZRT27#..LHD..6F..(E,N); ZRT271,272..LHD..CVT;ADT27#,ZRT271,272..LHD..(6F,6FC)..G201111-201409
CRUISE CONTROL-WITH
main78110-02070iADT27#,ZRT27#..RHD..(4FC,6F)..(E,F,N); ADT27#,ZRT271,272..RHD..6F..(E,F)..(DCR,HTWVM); ADT271..RHD..6F..(G,V)200811-200908
CRUISE CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITH; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&CRUISE CONTROL-WITHOUT
main78110-02150supersedes 78110-02140iWWT270,ZRT270,271..RHD..6F..N; ZRT271..RHD..CVT;ZRT271..RHD..6F..(E,G);WWT27#,ZRT270,272..RHD..(E,G)201505
CRUISE CONTROL-WITH
main78110-05020iADT27#,ZRT271,272..RHD..6F..(E,F)..(DCR,HTWVM); ADT271..RHD..(G,V);ZRT271,272..RHD..CVT200811-200908
CRUISE CONTROL-WITH
main78110-05021iADT27#,ZRT271,272..RHD..6F..(E,F)..(DCR,HTWVM); ADT271..RHD..(G,V);ZRT271,272..RHD..CVT200909-201111
CRUISE CONTROL-WITH
main78110-05030iADT27#,ZRT27#..LHD..(4FC,6F)..(E,N); ADT27#,ZRT27#..LHD..6F..(E,N); ADT27#,ZRT271,272..LHD..6F..G201409-201505
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&CRUISE CONTROL-WITH
main78110-05040iADT27#,ZRT27#..LHD..6F..(E,N); ZRT271,272..LHD..CVT;ADT27#,ZRT271,272..LHD..(6F,6FC)..G201409-201505
CRUISE CONTROL-WITH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&CRUISE CONTROL-WITH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&CRUISE CONTROL-WITH
90119W0136
main90119-W0136
2 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota AVENSIS
This section contains 2 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota AVENSIS. Key components include: PEDAL ASSY, ACCELERATOR.
