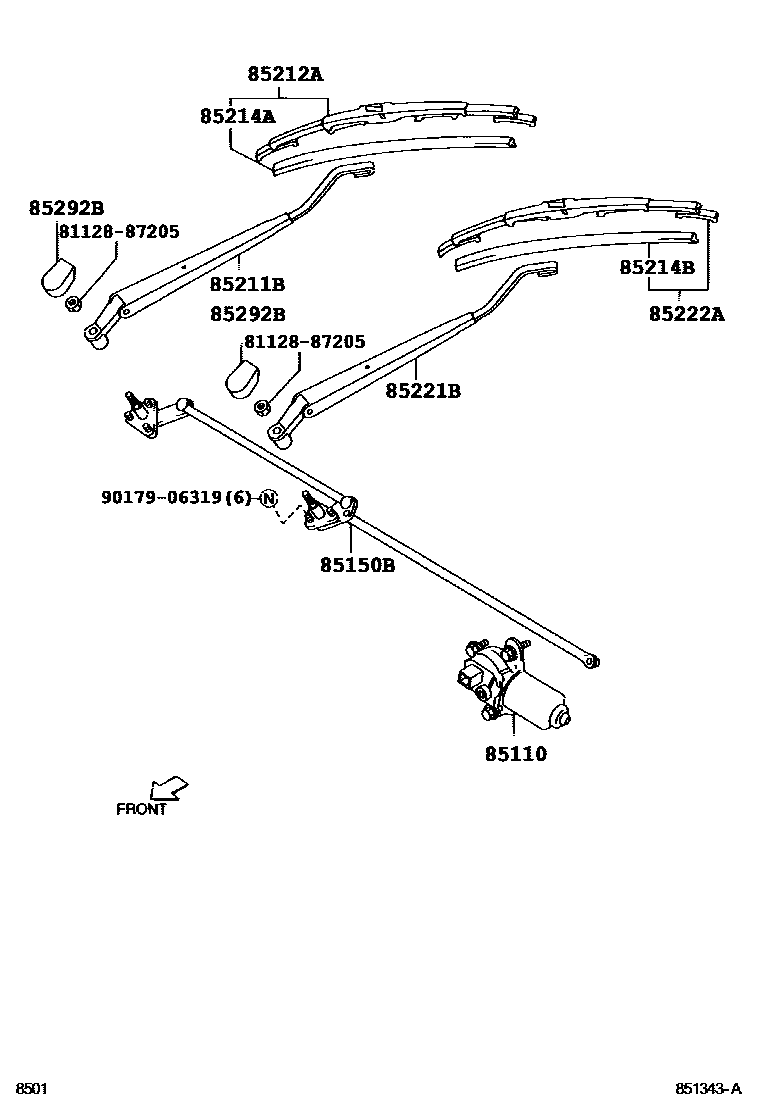

Toyota AVANZA — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ010iF601..BRU,IDN,TH200312-200608

main85110-BZ020iF601..MA200410-200608

main85110-BZ050iF60#..LHD200608

85150BLINK ASSY, WIPER

main85150-BZ010iF601..BRU,IDN,TH200312-200608

main85150-BZ030iF601..4AT200609-200911

main85150-BZ050iF60#..LHD200608

85211BARM, FRONT WIPER, RH

main85211-BZ010iF601..BRU,IDN,TH200312-200608

main85211-BZ030iF601..MA200410-200608

main85211-BZ070iF60#..LHD200608

85212ABLADE, FR WIPER, RH

main85212-BZ010iF601..BRU,IDN,TH200312-200608

main85212-BZ030iF601..4AT200609-200911

main85212-BZ050iF60#..LHD200608

85214ARUBBER, WIPER, RH

main85214-BZ020iF601..BRU,IDN,TH200312-200608

main85214-BZ050iF601..4AT200609-200911

85214BRUBBER, WIPER, LH

main85214-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200608

main85214-BZ060iF601..MA200410-200608

85221BARM, FRONT WIPER, LH

main85221-BZ010iF601..BRU,IDN,TH200312-200608

main85221-BZ040iF602..MA;F601..5F..MA200609

main85221-BZ070iF60#..LHD200608

85222ABLADE, FR WIPER, LH

main85222-BZ010iF601..BRU,IDN,TH200312-200608

main85222-BZ030iF602..MA;F601..5F..MA200609

main85222-BZ050iF60#..LHD200608

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800×2iF601200312-200608

8112887205NUT, HEADLAMP

main81128-87205

9017906319

main90179-06319

11 parts on this diagram · 2 diagrams in section
