Toyota AVANZA — WINDSHIELD WIPER

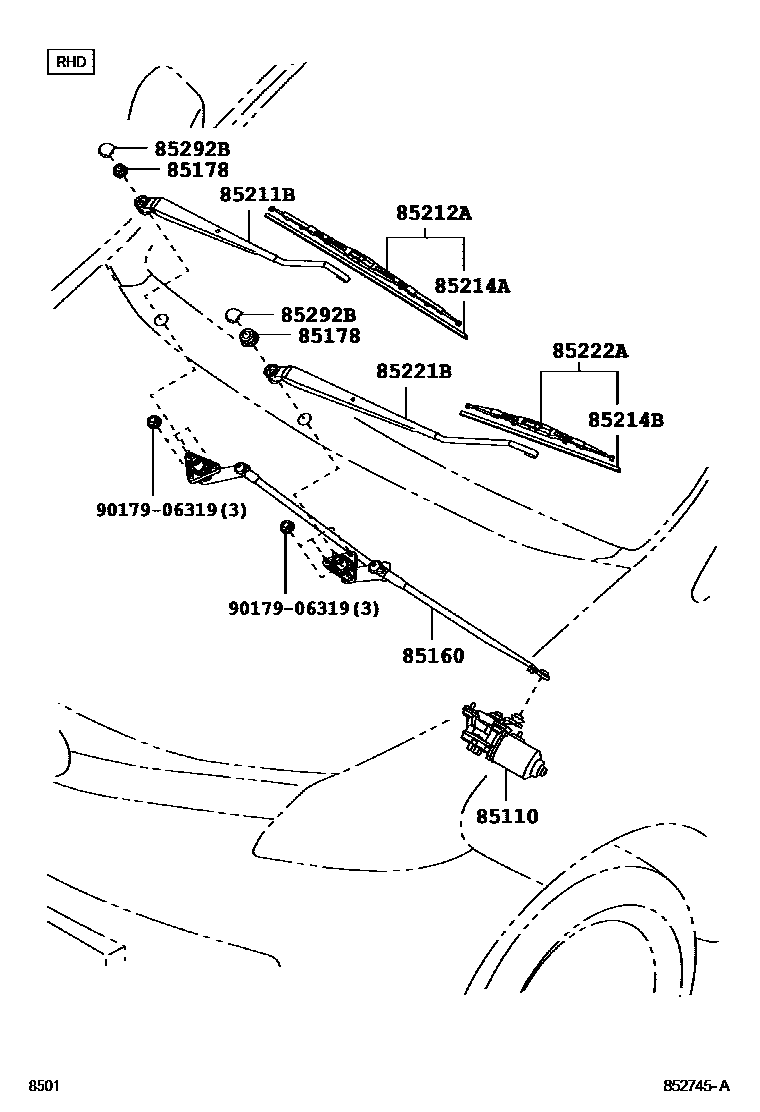

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ150i201111-201303

main85110-BZ151i201304-201507

main85110-BZ170i201112-201303

main85110-BZ171i201304-201508

main85110-BZ230i201901-202110

main85110-BZ240i201508-201904

85160LINK ASSY, WINDSHIELD WIPER

main85150-BZ150i201111-201507

main85150-BZ170i201112-201508

main85150-BZ230i201901-202110

main85150-BZ240i201508-201904

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205×2i201111-201507

main90041-79379×2i202209

85211BARM, FRONT WIPER, RH

main85211-BZ060i201111-201507

main85211-BZ250i201901-202110

main85221-BZ170i201112-201508

main85221-BZ260i201508-201904

85212ABLADE, FR WIPER, RH

main85212-BZ060i201111-201507

main85212-BZ280i201901-202110

main85222-BZ210i201112-201508

main85222-BZ300i201508-201904

85214ARUBBER, WIPER, RH

main85214-BZ090i201111-201507

main85214-BZ220i201112-201508

main85214-BZ250i201901-202110

main85214-BZ280i201508-201904

85214BRUBBER, WIPER, LH

main85214-BZ090i201112-201508

main85214-BZ220i201111-201507

main85214-BZ250i201508-201904

main85214-BZ280i201901-202110

85221BARM, FRONT WIPER, LH

main85211-BZ170i201112-201508

main85211-BZ260i201508-201904

main85221-BZ140i201111-201507

main85221-BZ250i201901-202110

85222ABLADE, FR WIPER, LH

main85212-BZ160i201112-201508

main85212-BZ290i201508-201904

main85222-BZ140i201111-201507

main85222-BZ290i201901-202110

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2i201111-201507

main85292-BZ110×2i201901-202110

9017906319

main90179-06319

11 parts on this diagram · 4 diagrams in section

WINDSHIELD WIPER for Toyota AVANZA

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota AVANZA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
