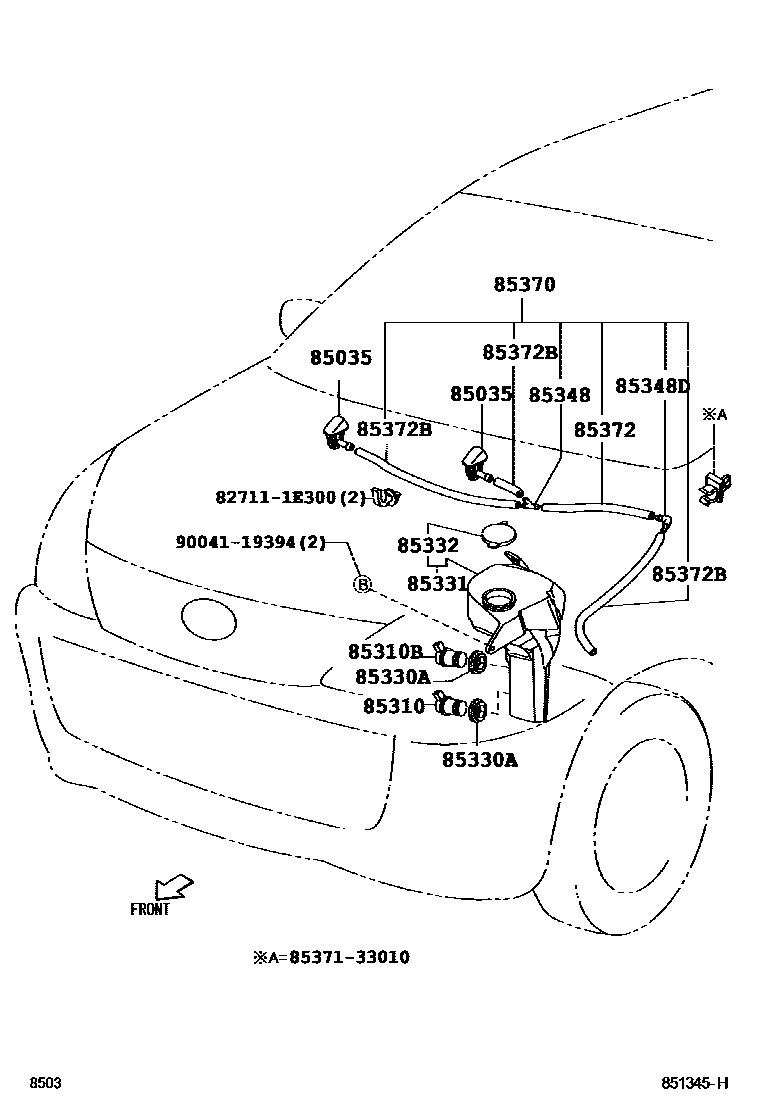

Toyota AVANZA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ010i200312-200608

main85381-BZ020i200410-200911

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ020i200312-201107

main85330-BZ060i201107

main85330-BZ070i201107

85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER

main85330-BZ010i200312-200911

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202i200312-200911

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-BZ010i200312-200911

main85315-BZ040i200610

main85315-BZ050i200608

85332CAP, WINDSHIELD WASHER JAR

main85332-87401i200312-200911

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85327-BZ010i200312-200608

main85348-87201i200410-200911

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85317-BZ010i200312-200608

main85349-87602i200410-200911

85370HOSE ASSY, WINDSHIELD WASHER

main85370-BZ040i200312-200608

main85370-BZ050i200410-200911

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZ470i200608

L=570

main9004B-44001i200410-200911

main9004B-58001i200312-200608

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85319-BZ040i200312-200608

L=420

main85329-BZ040i200312-200608

L=50

main85359-BZ040i200312-200608

L=560

main85374-BZ030i200608

L=50

main85374-BZ450i200608

L=420

main85374-BZ460i200608

L=560

main9004B-44007i200410-200911

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9004119394

main90041-19394

14 parts on this diagram · 6 diagrams in section

WINDSHIELD WASHER for Toyota AVANZA

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AVANZA. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, MOTOR & PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER.
