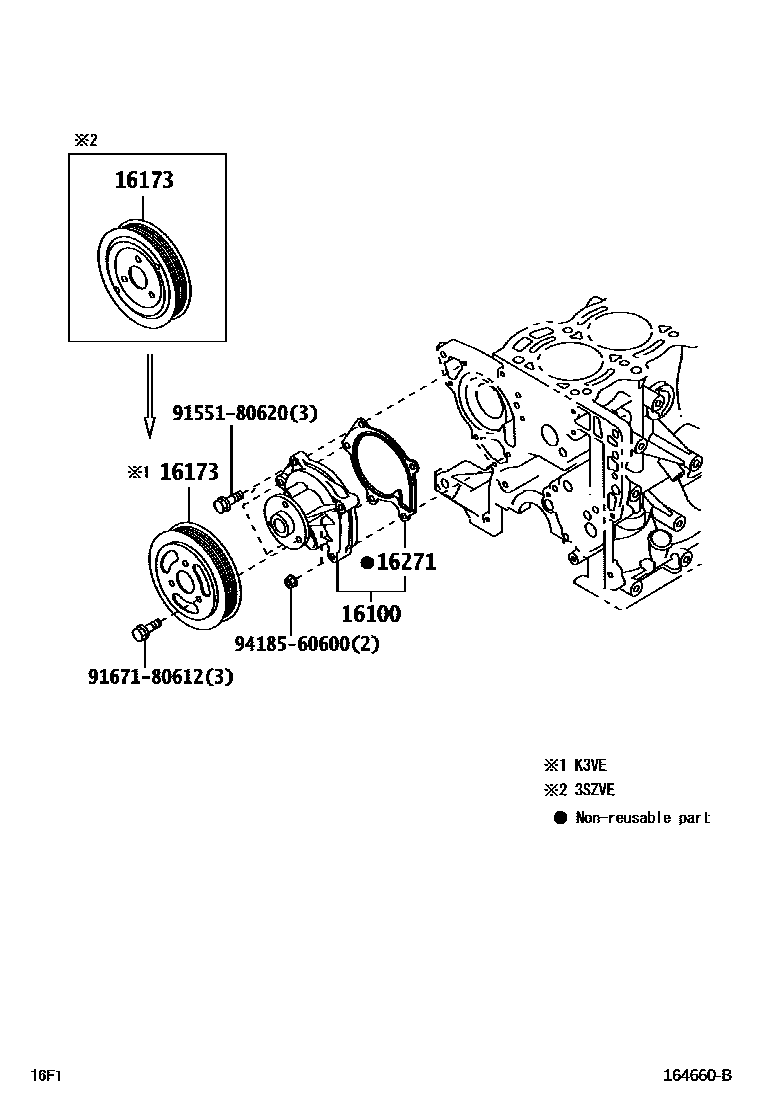

Toyota AVANZA — WATER PUMP
16100PUMP ASSY, ENGINE WATER
main16100-B9490i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904
16173PULLEY, WATER PUMP
16271GASKET, WATER PUMP
9155180620
main91551-80620
9167180612
main91671-80612
9418560600
main94185-60600
6 parts on this diagram · 3 diagrams in section
WATER PUMP for Toyota AVANZA
This section contains 14 genuine Toyota parts for the WATER PUMP system of the Toyota AVANZA. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, ENGINE WATER, PULLEY, WATER PUMP, GASKET, WATER PUMP, PULLEY SUB-ASSY, IDLER, NO.1.
