Toyota AVANZA — STEERING WHEEL

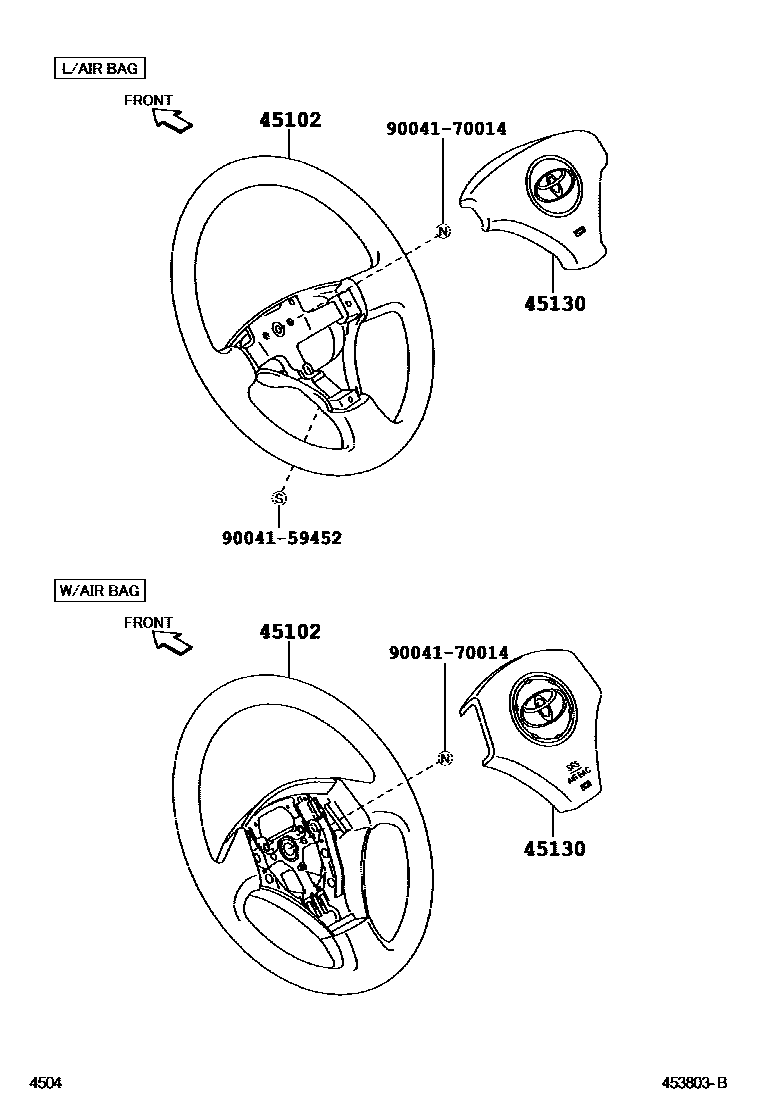

Parts diagram
45102WHEEL SUB-ASSY, STEERING
main45102-B0010-B0i200408-200608
DK.GRAY,TRIM1#
main45102-BZ010-B0i200312-200608
DK.GRAY,TRIM1#
main45102-BZ010-E0i200608-200810
SANDAL WOOD,TRIM0#
main45102-BZ010-E1i200810-200911
ASH BROWN,TRIM4#
main45102-BZ011-B0i201104
DK.GRAY,TRIM1#
main45102-BZ011-E1i201104
ASH BROWN,TRIM4#
main45102-BZ080-B0i200610
DK.GRAY,TRIM1#
main45102-BZ080-E0i200608-200811
SANDAL WOOD,TRIM0#
main45102-BZ080-E1i200811
ASH BROWN,TRIM4#
main45102-BZ170-E0i200810-201103
ASH BROWN,TRIM4#
main45102-BZ171-E0i201104
ASH BROWN,TRIM4#
45130BUTTON ASSY, HORN
main45130-B0010-B0i200408-200608
DK.GRAY,TRIM1#
main45130-BZ020-B0i200312-200608
DK.GRAY,TRIM1#
main45130-BZ020-E0i200608-200810
SANDAL WOOD,TRIM0#
main45130-BZ020-E1i200810
ASH BROWN,TRIM4#
main45130-BZ080-B0i200610
DK.GRAY,TRIM1#
main45130-BZ080-E0i200608-200811
SANDAL WOOD,TRIM0#
main45130-BZ080-E1i200811
ASH BROWN,TRIM4#
main45130-BZ240-E0i200810
ASH BROWN,TRIM4#
9004159452
main90041-59452
9004170014
main90041-70014

4 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota AVANZA

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota AVANZA. Key components include: WHEEL SUB-ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3.
