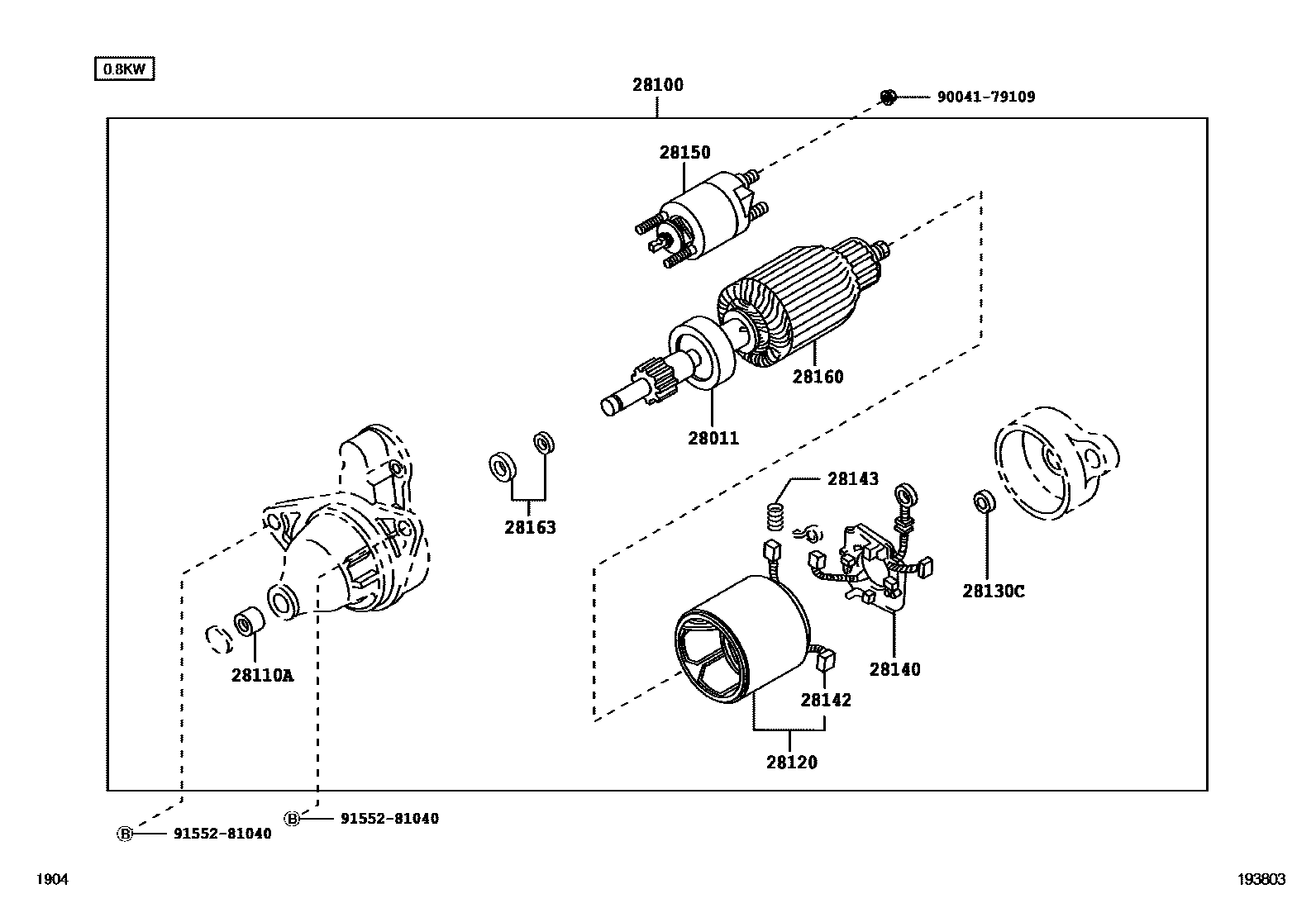

Toyota AVANZA — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 0.8KW
main28100-BZ200i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904
12V 0.9KW
28110HOUSING ASSY, STARTER DRIVE
main28110-BZ170i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
28110ABEARING(FOR STARTER HOUSING)
28120YOKE ASSY, STARTER
main28120-BZ090i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-BZ140i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
main28140-BZ140i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201901
28142BRUSH, STARTER
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
main28150-BZ030i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
28160ARMATURE ASSY, STARTER
main28160-BZ040i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
28163NUT OR COLLAR, PINION STOP, STARTER
main28163-BZ140i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-201901
9004179109
main90041-79109
9155281040
main91552-81040
15 parts on this diagram · 2 diagrams in section
