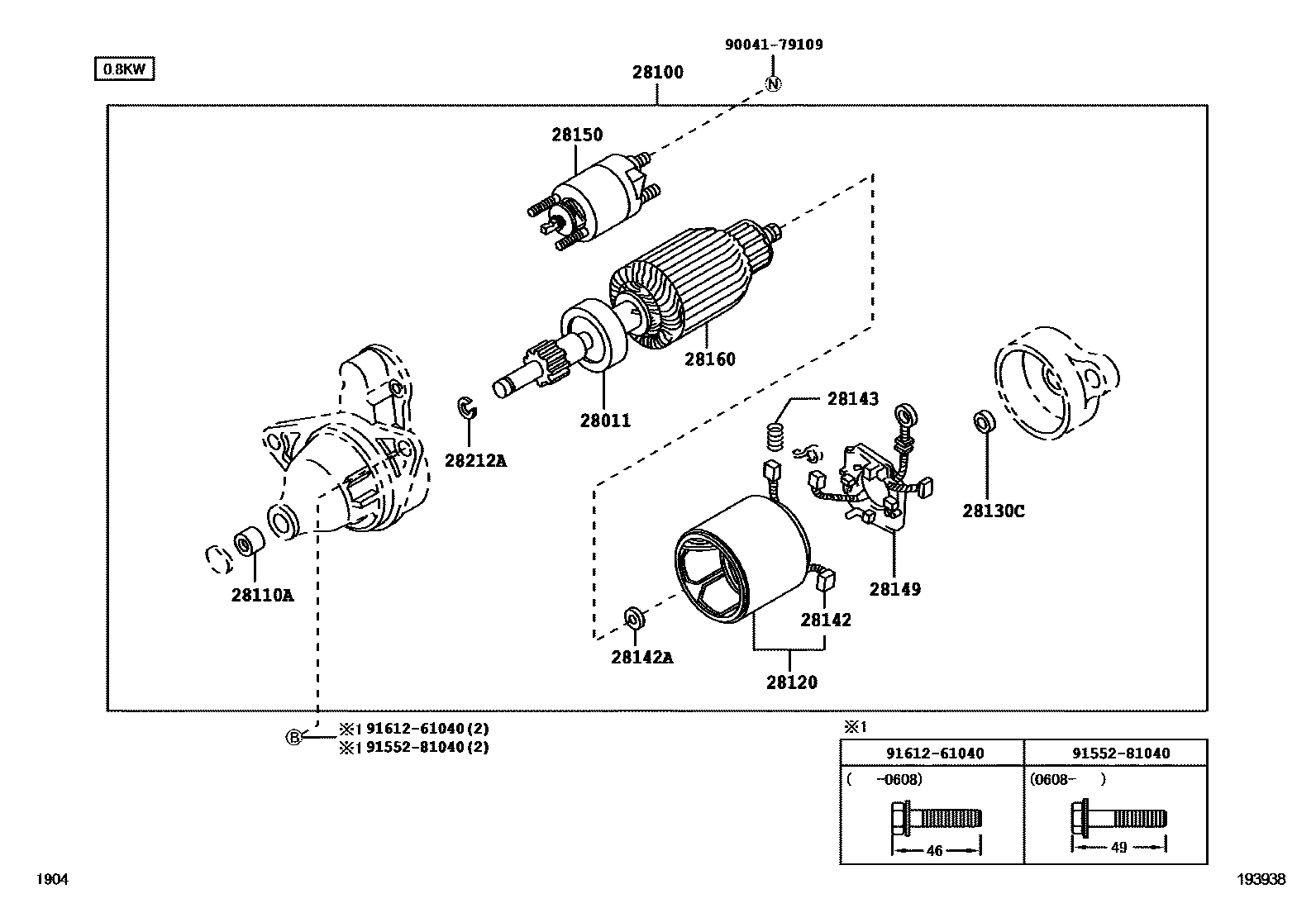

Toyota AVANZA — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-BZ020iK3VE..F601..4AT200608-200911

28100STARTER ASSY

main28100-BZ020i3SZVE..F602..MA;K3VE..F601..5F..MA201111

12V 0.8KW

main28100-BZ030i3SZVE..F602..MA;K3VE..F601..5F..MA200609-201111

12V 0.8KW

28110ABEARING(FOR STARTER HOUSING)

main9004B-03004iK3VE..F601..4AT200608-200911

28120YOKE ASSY, STARTER

main28120-BZ010iK3#..F601200312-200608

28130CBEARING, STARTER FLANGE

main9004B-03004iK3#..F601..E,G,GL,S200312-200608

28142BRUSH, STARTER

main28142-87504×4iK3VE..F601..4AT200808-200911

main28142-BZ010×4iK3VE,3SZVE..F60#200608-200808

28142ASTARTER KIT

main28142-BZ011iK3#..F601200312-200608

sub28142-87505

28143SPRING, STARTER BRUSH

main28143-BZ010×4iK3#..F601200312-200608

28149PLATE, STARTER

main28149-BZ010iK3#..F601200312-200608

28150SWITCH ASSY, MAGNET STARTER

main28150-BZ010iK3#..F601200312-200608

28160ARMATURE ASSY, STARTER

main28160-BZ020iK3#..F601200312-200608

28212ARING, SNAP, STARTER CLUTCH HOUSING DISC

main28142-BZ012iK3VE,3SZVE..F60#200608-200808

main28274-BZ010iK3#..F601..E,G,GL,S200312-200608

9004179109

main90041-79109

9155281040

main91552-81040

9161261040

main91612-61040

15 parts on this diagram · 1 diagram in section
