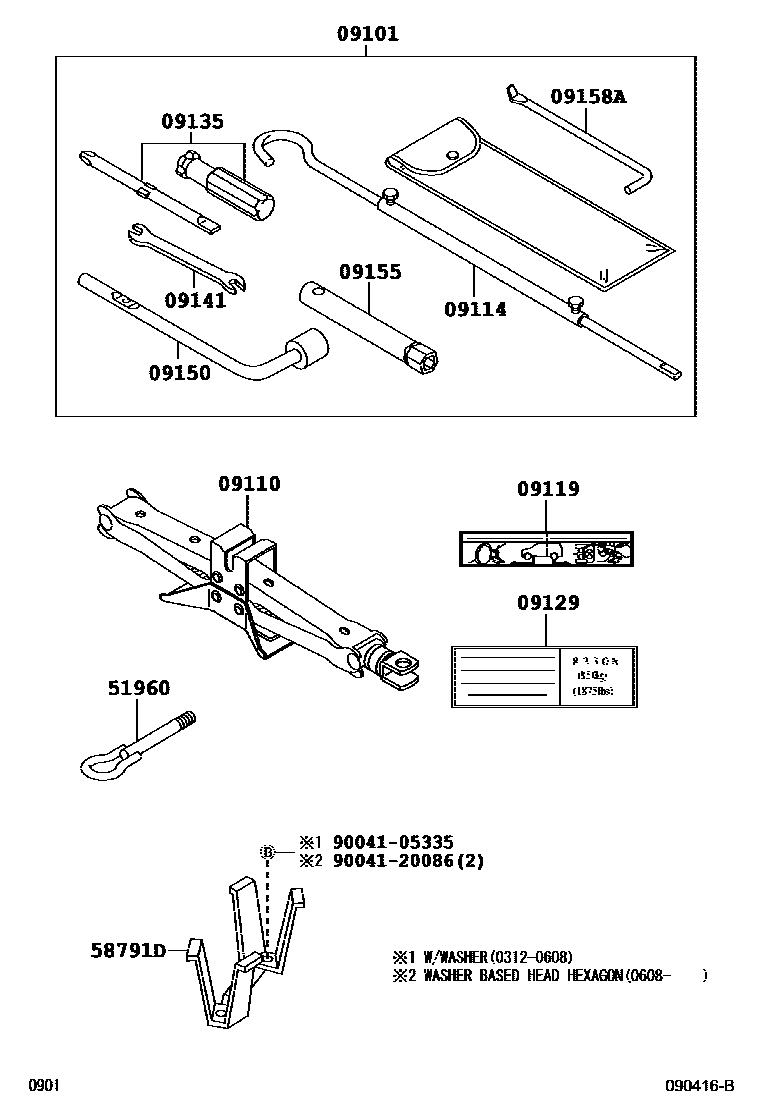

Toyota AVANZA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-BZ010iF601200312-200608

09110JACK ASSY

main09111-BZ010iF601200312-200608

main09111-BZ011iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200912

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-87Z02iF601200312-200608

09119LABEL, JACK CAUTION

main09119-BZ030iF601200603-200608

main09119-BZ040iF602..IDN,TH;F602..(G,S)..MA200608

main09119-BZ060iF602..MXC200610

main09119-BZ080iF601..GEN,PHL,SA;F602..(DLX,G)..(GEN,SA)200608

main09119-BZ090iF602..PHL;F602..(GL,S)..(GEN,SA)200608

09129LABEL, JACK CAUTION

main09119-BZ020iF601200603-200608

main09119-BZ050iF602..MXC200610

main09119-BZ070iF60#..GEN,PHL,SA200608

09135DRIVER, SCREW

main09135-87Z10iF601200312-200608

09141SPANNER

main09141-87Z11iF601200312-200608

10 X 12

09150WRENCH, HUB NUT BOX

main09150-87Z01iF601200312-200608

sub09150-BZ040

09155WRENCH, SPARK PLUG

main09155-BZ010iF601200312-200608

09158AHANDLE, SPARK PLUG WRENCH

main09158-87Z04iF601200312-200608

51960HOOK ASSY, FRONT

main51960-BZ020iF601200312-200608

main51960-BZ050iF601..4AT200608-200911

58791DCARRIER, JACK

main58791-BZ010iF601200312-200608

9004105335

main90041-05335

9004120086

main90041-20086

14 parts on this diagram · 1 diagram in section
