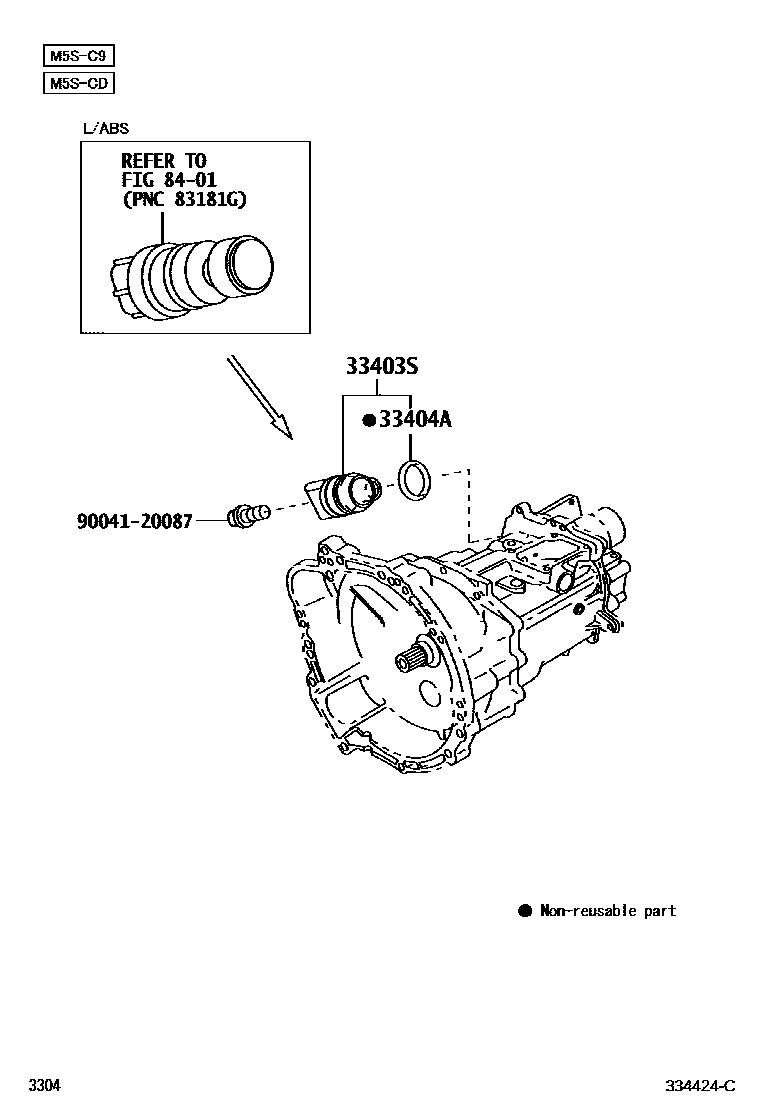

Toyota AVANZA — SPEEDOMETER DRIVEN GEAR (MTM)

33403SPLUG(FOR MTM SPEEDOMETER DRIVEN HOLE)

main35136-BZ010i201901

main90043-39134i201111-201508

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main9004A-30049i201901

main96723-24020i201111-201508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004120087

main90041-20087

4 parts on this diagram · 2 diagrams in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota AVANZA

This section contains 6 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota AVANZA. Key components include: PLUG(FOR MTM SPEEDOMETER DRIVEN HOLE), RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE), SWITCH & RELAY & COMPUTER.
