Toyota AVANZA — SHORT BLOCK ASSEMBLY

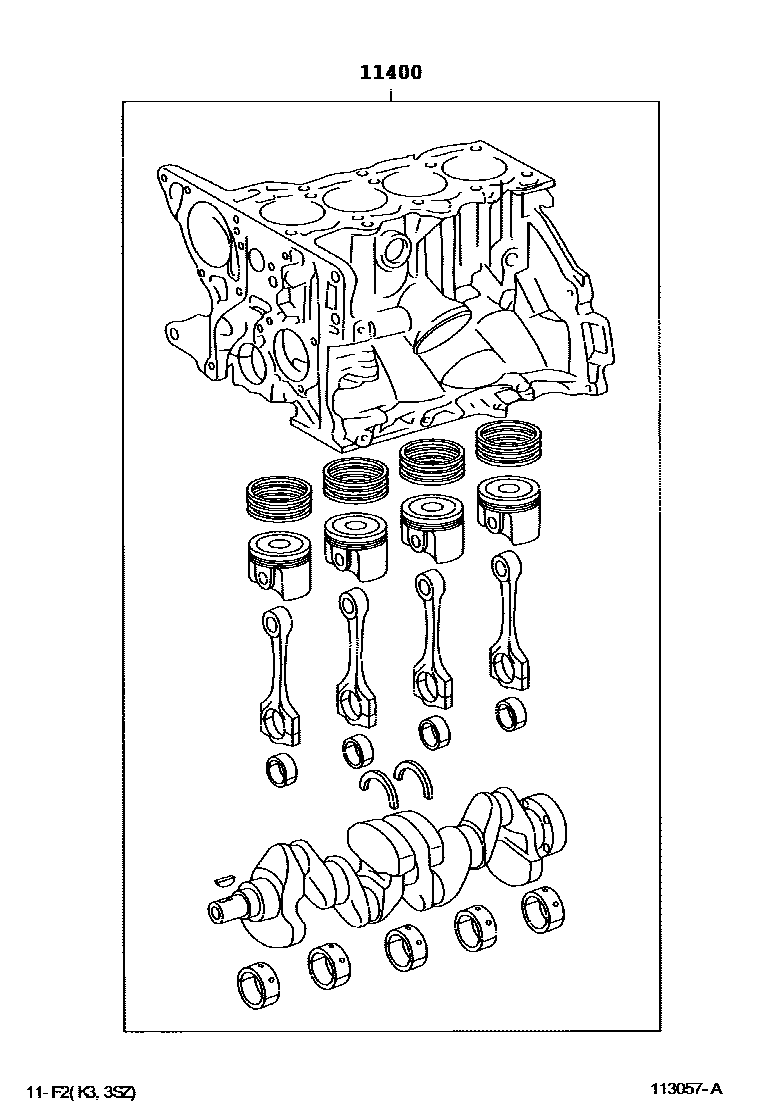

Parts diagram

11400BLOCK ASSY, SHORT

main11400-BZ060i200312-200512

main11400-BZ070i200405-200512

main11400-BZ080i200504-200511

main11400-BZ480i200511-200512

main11400-BZ570i200512-200604

main11400-BZ580i200512-200604

main11400-BZ590i200512-200605

main11400-BZ600i200512-200604

main11400-BZ630i200605-200608

main11400-BZ640i200605-200608

main11400-BZ650i200605-200608

main11400-BZ660i200605-200608

main11400-BZ780i200608-200609

main11400-BZ861i200811

main11400-BZD40i200801-200808

main11400-BZD42i200808

main11400-BZD50i200609-200808

main11400-BZD52i200808

main11400-BZD60i200609-200808

main11400-BZD70i200609-200808

main11400-BZD71i200808

main11400-BZD80i200706-200801

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota AVANZA

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota AVANZA. Key components include: BLOCK ASSY, SHORT.
