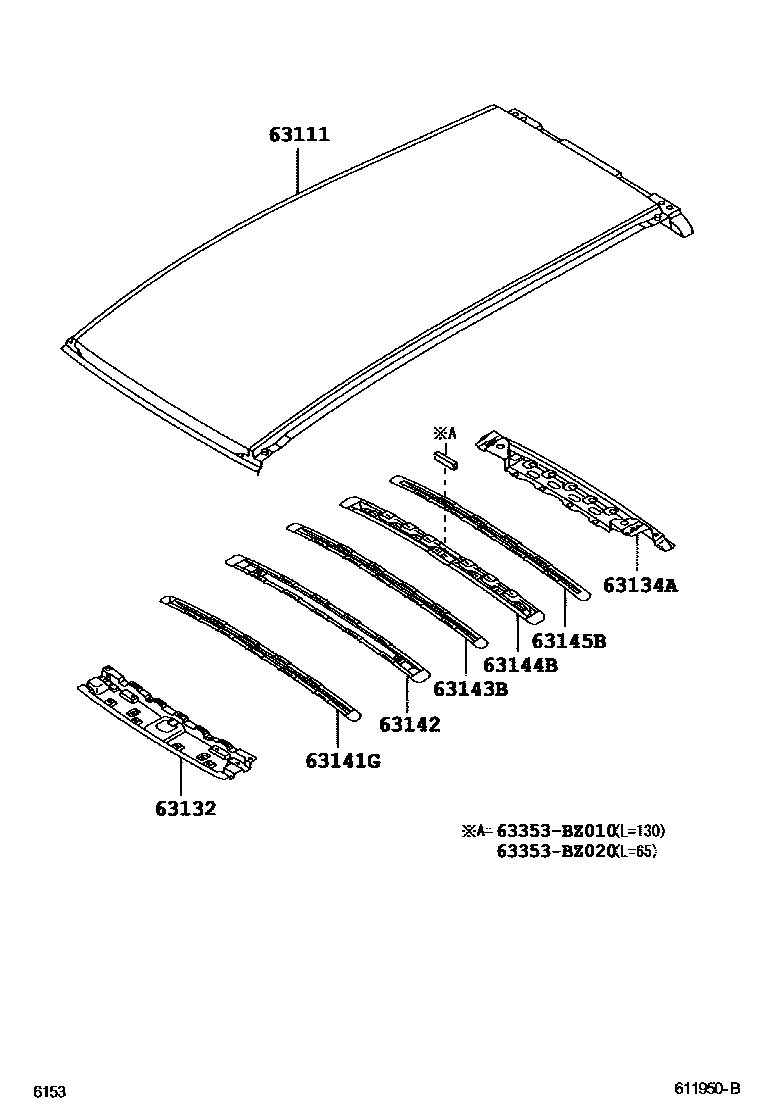

Toyota AVANZA — ROOF PANEL & BACK PANEL

63111PANEL, ROOF

main63111-BZ010iF601200312-200608

main63111-BZ011iF601..4AT200810-200911

63132PANEL, WINDSHIELD HEADER, INNER

main63132-BZ010iF601200312-200608

main63132-BZ120iF60#..GEN,IDN,MXC,PHL,SA,TH201009

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-BZ010iF601200312-200608

main63134-BZ140iF60#..GEN,IDN,MXC,PHL,SA,TH201009

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-BZ010iF601200312-200608

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-BZ010iF601200312-200608

main63142-BZ011iF601..4AT200810-200911

main63142-BZ110iF60#..GEN,IDN,MXC,PHL,SA,TH201104

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-BZ010iF601200312-200608

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-BZ010iF601200312-200608

main63144-BZ011iF601..4AT200810-200911

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-BZ010iF601200312-200608

63353BZ010PAD, WINDSHIELD HEADER PANEL

main63353-BZ010

63353BZ020PAD, WINDSHIELD HEADER PANEL

main63353-BZ020

10 parts on this diagram · 1 diagram in section
