Toyota AVANZA — REAR WIPER

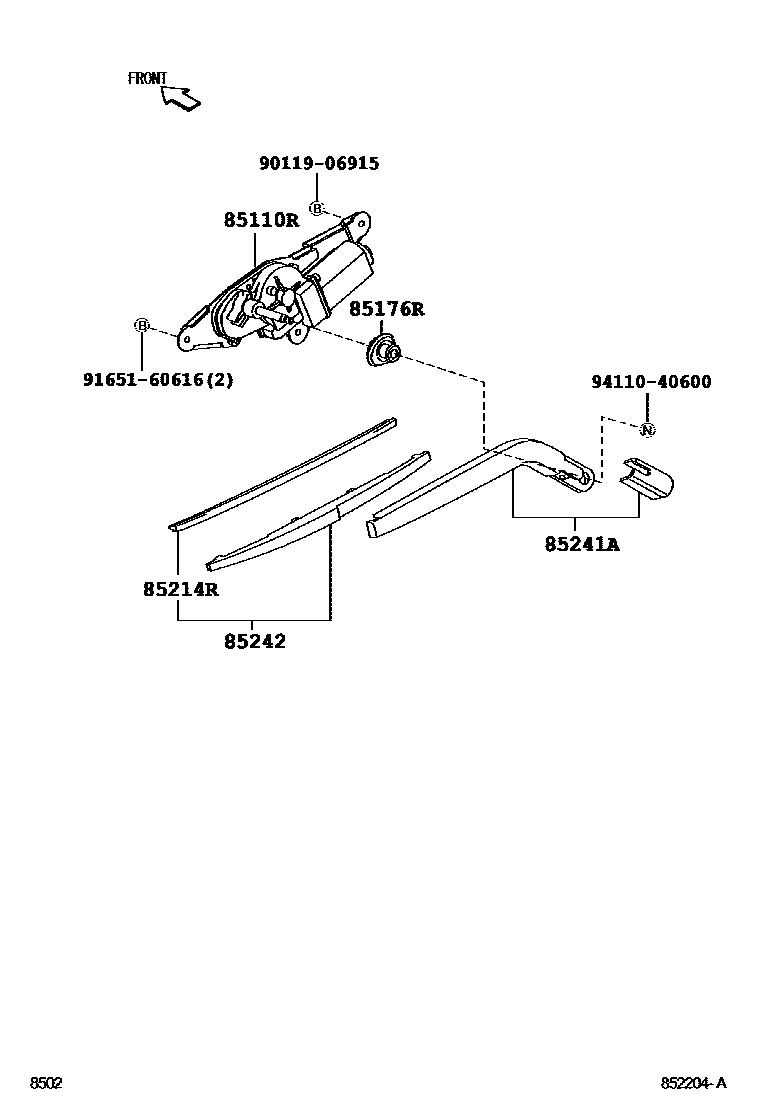

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-BZ010i200312-200608

main85130-BZ020i200410-200608

85176RCAP, REAR WIPER LINK

main85176-BZ010i200312-200608

main85176-BZ020i200609-200911

85214RRUBBER, REAR WIPER

main85243-BZ020i200608

main85243-BZ030i200412-200608

85241AARM, REAR WIPER

main85241-BZ020i200312-200412

main85241-BZ030i200412-200608

85242BLADE, RR WIPER

main85242-BZ010i200312-200412

main85242-BZ030i200609-200911

main85242-BZ070i200911

9011906915

main90119-06915

9165160616

main91651-60616

9411040600

main94110-40600

8 parts on this diagram · 2 diagrams in section

REAR WIPER for Toyota AVANZA

This section contains 11 genuine Toyota parts for the REAR WIPER system of the Toyota AVANZA. Key components include: MOTOR ASSY, REAR WIPER, CAP, REAR WIPER LINK, RUBBER, REAR WIPER, ARM, REAR WIPER, BLADE, RR WIPER.
