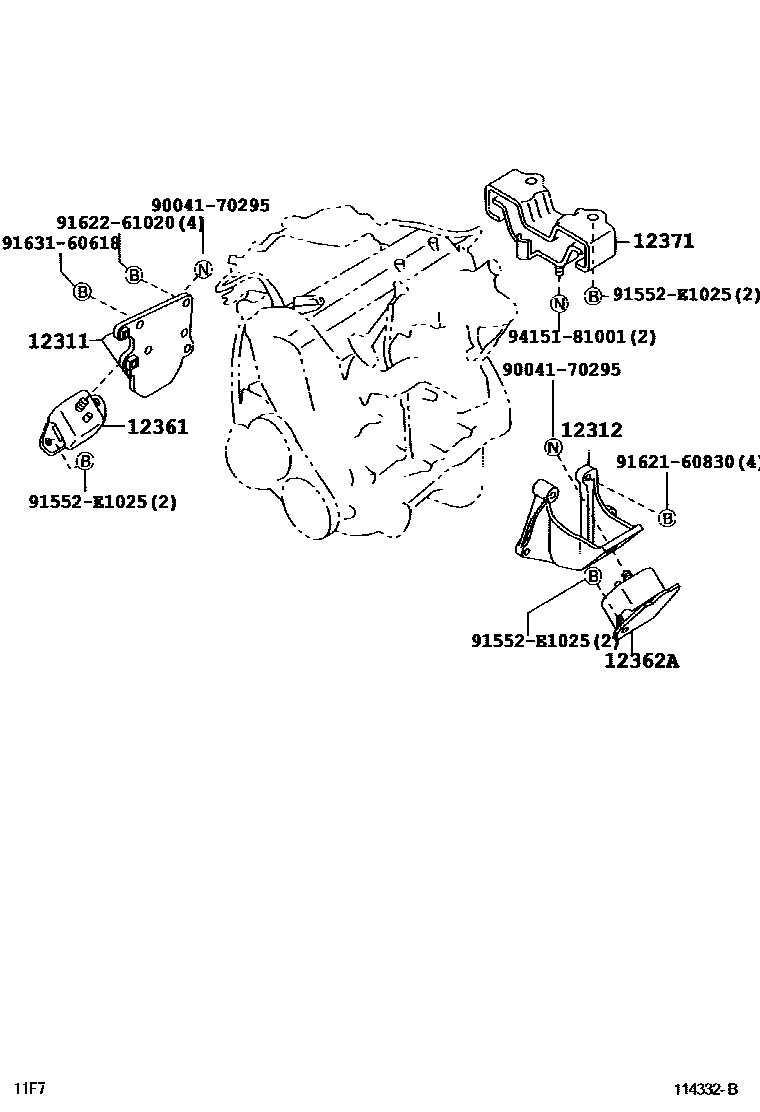

Toyota AVANZA — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-BZ020iK3#..F601200312-200608

main12311-BZ080i3SZVE..F602200608

12312BRACKET, ENGINE MOUNTING, FRONT NO.2

main12312-BZ020iK3#..F601200312-200608

main12312-BZ040i3SZVE..F602200608

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-BZ030iK3#..F601..5F200312-200608

main12361-BZ040iK3VE..F601..4AT200404-200608

main12361-BZ050iK3VE..F601..5F200608

sub12361-BZ130

main12361-BZ060iK3VE..F601..4AT200609-200911

sub12361-BZ140

main12361-BZ070i3SZVE..F602..5F200608

sub12361-BZ151

main12361-BZ080i3SZVE..F602..4AT200608

sub12361-BZ161

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-BZ020iK3#..F601200312-200608

main12362-BZ060iK3VE..F601..4AT200608-200911

sub12362-BZ130

main12362-BZ070i3SZVE..F602200608

sub12362-BZ141

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-BZ010iK3#..F601200312-200608

main12371-BZ050iK3VE,3SZVE..F60#200608-200610

main12371-BZ051iK3VE..F601..IDN200611-200812

sub12371-BZ110

main12371-BZ052iK3VE..F601..5F..IDN200812

sub12371-BZ120

9004170295

main90041-70295

91552E1025

main91552-E1025

9162160830

main91621-60830

9162261020

main91622-61020

9163160618

main91631-60618

9415181001

main94151-81001

11 parts on this diagram · 1 diagram in section
