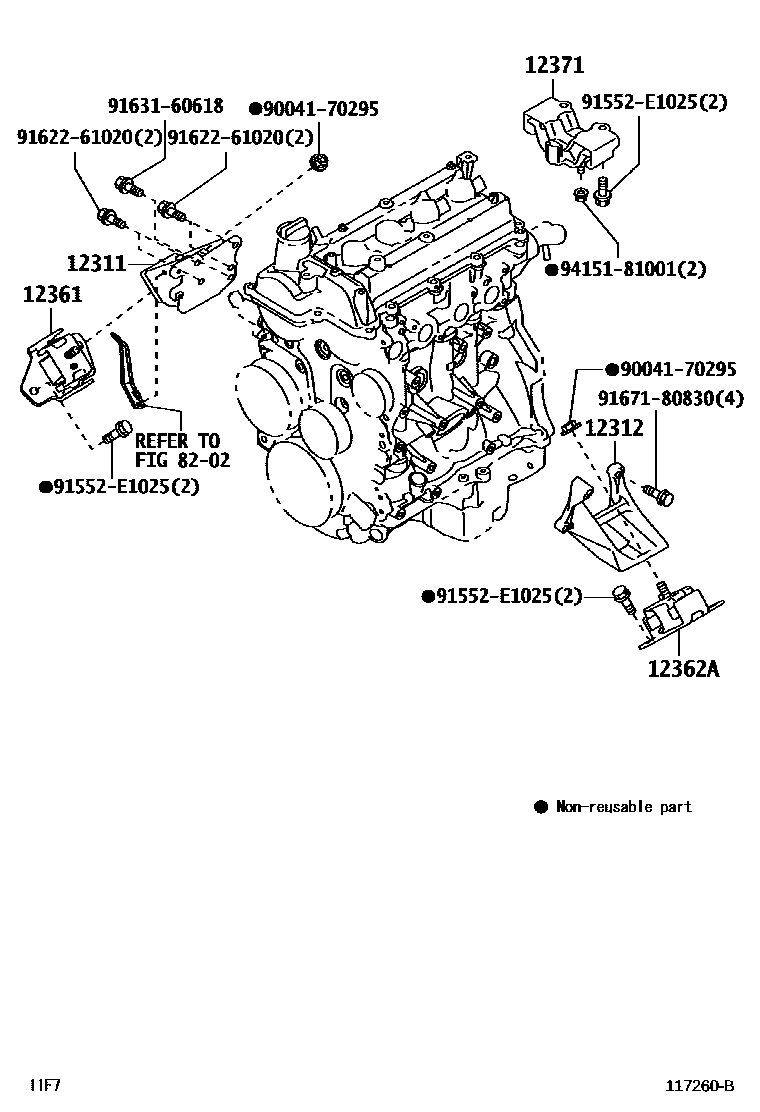

Toyota AVANZA — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12312BRACKET, ENGINE MOUNTING, FRONT NO.2
12361INSULATOR, ENGINE MOUNTING, FRONT
12362AINSULATOR, ENGINE MOUNTING, FRONT LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
8202WIRING & CLAMP
9004170295
main90041-70295
91552E1025
main91552-E1025
9162261020
main91622-61020
9163160618
main91631-60618
9167180830
main91671-80830
9415181001
main94151-81001
12 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota AVANZA
This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota AVANZA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.2, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, DAMPER, ENGINE MOUNTING, INSULATOR, ENGINE MOUNTING, FRONT.
