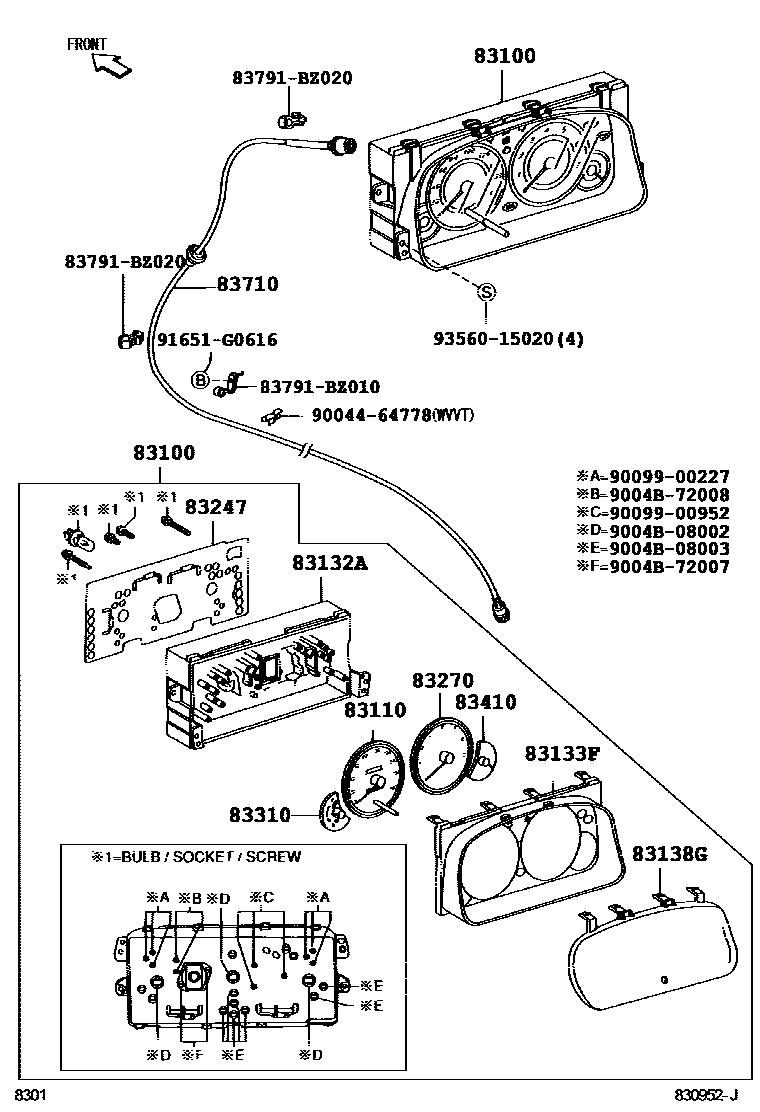

Toyota AVANZA — METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100METER ASSY, COMBINATION

main83800-BZ010iF601..5F..(BRU,IDN,TH)200312-200608

main83800-BZ050iF601..4AT..(E,G,LIMD)200404-200608

main83800-BZ060iF601..S200408-200608

main83800-BZ120iF601..5F..MA200410-200608

main83800-BZ130iF601..4AT..MA200410-200608

main83800-BZ240iF601..RHD..(GEN,IDN)200608-200810

main83800-BZ260iF601..4AT200609-200811

main83800-BZ270iF601..5F..MA200609-200811

main83800-BZ280iF601..DLX..SA200608-200810

main83800-BZ290iF602..S..TH;F602..4AT..G..GEN200610-200810

main83800-BZ310iF602..5F..S200608-200810

main83800-BZ320iF602..4AT..S..(GEN,IDN)200610-200810

main83800-BZ330iF602..MA200609-200811

main83800-BZ340iF602..5F..MXC200610-200810

main83800-BZ350iF602..4AT..PHL200610-200705

main83800-BZ360iF602..SA200608-200810

main83800-BZ370iF601..PHL200608-200705

main83800-BZ380iF602..5F..G..GEN200610-200810

main83800-BZ390iF602..E200608-200810

main83800-BZ400iF602..J200608-200810

main83800-BZD60iF601..PHL200705-200810

main83800-BZG90iF601..RHD..5F..(GEN,IDN)200810

main83800-BZJ00iF601..4AT200811-200911

main83800-BZJ10iF601..5F..MA200811

main83800-BZJ20iF601..DLX..SA200810

main83800-BZJ30iF602..4AT..G..GEN;F602..4AT..(G,S)..(PHL,TH)200810

main83800-BZJ50iF602..5F..S200810

main83800-BZJ60iF602..4AT..S..(GEN,IDN)200810

main83800-BZJ70iF602..(G,S)..MA200811

main83800-BZJ80iF602..5F..MXC200810

main83800-BZJ90iF602..4AT..MXC200810

main83800-BZK00iF602..5F..G201101

main83800-BZK10iF601..CTM,STD;F601..DLX..GEN200810

main83800-BZK20iF602..5F..G200810-201101

main83800-BZK30iF602..E..TH200810

main83800-BZK40iF602..J200810

main83800-BZK50iF601..PHL200810

main83800-BZK60iF602..E..MA200811

main83800-BZP90iF601..4AT..IDN200911

main83800-BZU10iF602..4AT..G..GEN201101

EGYPT SPEC

83110SPEEDOMETER ASSY

main83220-BZ010iF601..5F200312-200608

main83220-BZ030iF60#..RHD..5F..(GEN,IDN)200608-200810

main83220-BZ040iF60#..(CTM,DLX,GL,STD)..(GEN,SA)200608-200810

main83220-BZ050iF602..J200610-200810

main83220-BZ130iF602..5F..G200810-201101

main83220-BZ140iF60#..(CTM,DLX,GL,STD)..(GEN,SA)200810

83132ACASE, METER

main83841-BZ010iF601..5F200312-200608

main83841-BZ030iF601..DLX..SA;F602..5F..(GEN,IDN,SA)200608

83133FPLATE, METER

main83811-BZ010iF60#..5F..(GEN,IDN,MA,MXC,PHL,SA)200608

83138GGLASS, COMBINATION METER

main83852-BZ010iF60#..5F..(GEN,IDN,MA,MXC,PHL,SA)200608

main83852-BZ030iF601..4AT200404-200608

main83852-BZ070iF602..4AT;F601..4AT..IDN200608

83247PLATE, METER CIRCUIT

main83861-BZ010iF601..5F..(BRU,IDN,TH)200312-200608

main83861-BZ030iF601..5F..MA200410-200608

main83861-BZ040iF601..RHD..5F..(GEN,IDN)200608

main83861-BZ050iF602..J200610

main83861-BZ060iF601..5F..MA200609

main83861-BZ070iF602..5F..PHL200610-200705

main83861-BZ080iF601..DLX..SA;F602..5F..(DLX,G,GL)..(GEN,SA)200608

main83861-BZ090iF602..5F..S200608

83270TACHOMETER ASSY, ENGINE

main83881-BZ010iF601..5F200312-200608

main83881-BZ040iF601..RHD..(GEN,IDN)200608-200810

main83881-BZ050iF601..PHL200608-200705

main83881-BZ060iF601..DLX..SA200608-200810

main83881-BZ070iF602..J200610-200810

main83881-BZ080iF602..5F..S200608-200810

main83881-BZ090iF602..5F..(DLX,G,GL)200608-200810

main83881-BZ110iF601..5F..(GEN,IDN,PHL,SA)200810

main83881-BZ120iF602..5F200810

83310GAGE ASSY, FUEL RECEIVER

main83882-BZ010iF601..5F200312-200608

main83882-BZ030iF602..J200610-200810

main83882-BZ050iF60#..5F..(GEN,IDN,MXC,PHL,SA,TH)200810

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83883-BZ010iF601..5F200312-200608

main83883-BZ030iF602..J200610-200810

main83883-BZ050iF601..5F..MA200811

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-BZ010iF601..5F200312-200608

main83710-BZ011iF60#..RHD..5F200912

main83710-BZ020iF60#..LHD..5F200608-200911

main83710-BZ021iF60#..LHD..5F200912

83791BZ010

main83791-BZ010

83791BZ020

main83791-BZ020

9004464778

main90044-64778

9004B08002

main9004B-08002

9004B08003

main9004B-08003

9004B72007

main9004B-72007

9004B72008

main9004B-72008

9009900227

main90099-00227

9009900952

main90099-00952

91651G0616

main91651-G0616

9356015020

main93560-15020

21 parts on this diagram · 5 diagrams in section
