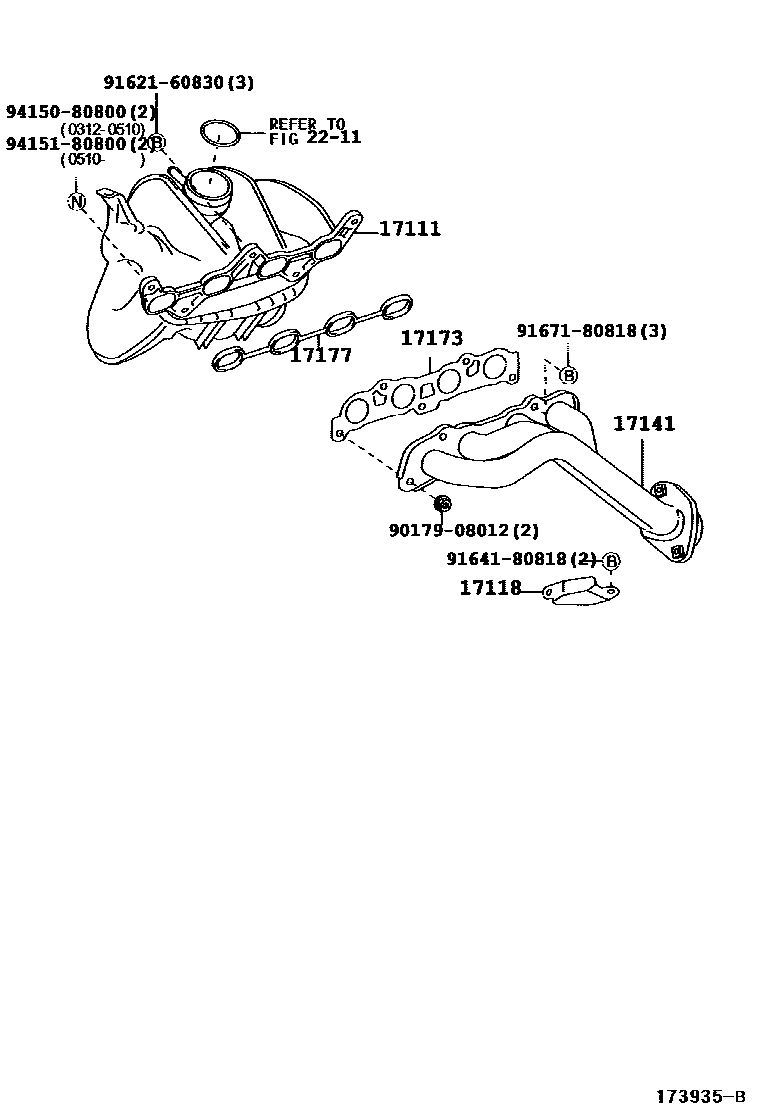

Toyota AVANZA — MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
T=3.2
17141MANIFOLD, EXHAUST
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211FUEL INJECTION SYSTEM
9017908012
main90179-08012
9162160830
main91621-60830
9164180818
main91641-80818
9167180818
main91671-80818
9415080800
main94150-80800
9415180800
main94151-80800
12 parts on this diagram · 3 diagrams in section
MANIFOLD for Toyota AVANZA
This section contains 20 genuine Toyota parts for the MANIFOLD system of the Toyota AVANZA. Key components include: MANIFOLD, INTAKE, PLUG, NO.1, STAY, MANIFOLD, STAY, MANIFOLD, NO.2, MANIFOLD, EXHAUST.
