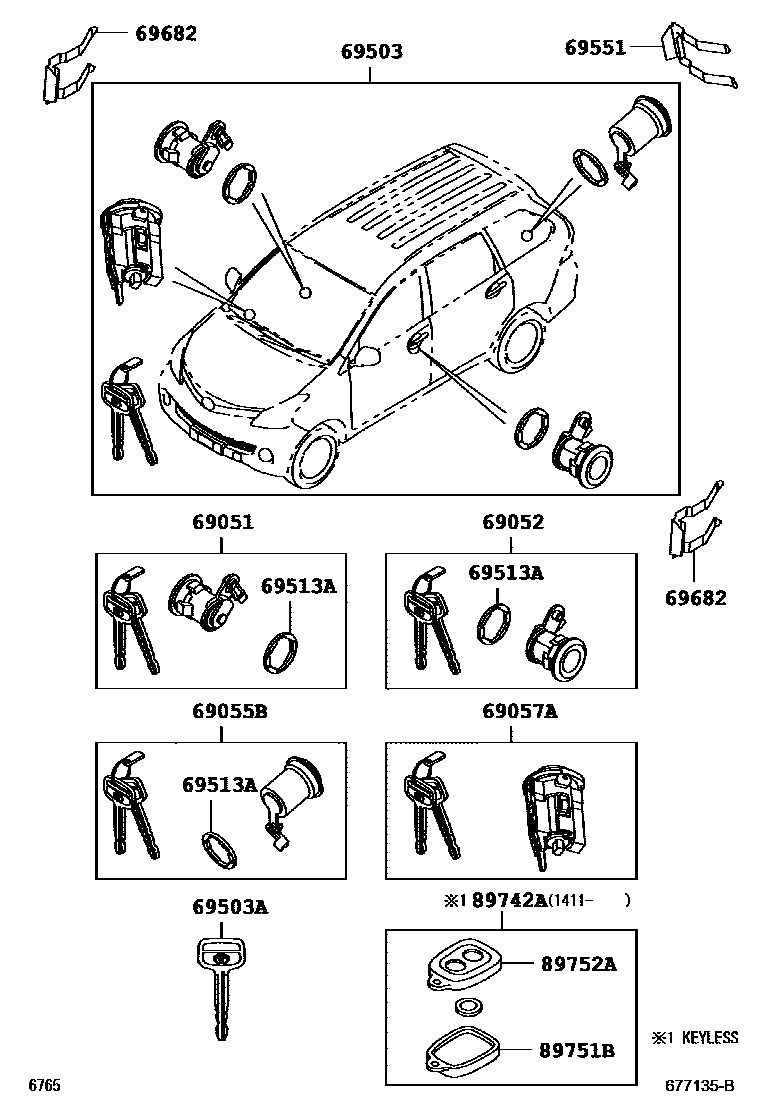

Toyota AVANZA — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
G+THATCHAM
69052CYLINDER & KEY SET, DOOR LOCK, LH
G+THATCHAM
69055BCYLINDER & KEY SET, BACK DOOR LOCK
G+THATCHAM
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
G+THATCHAM
69503CYLINDER SET, LOCK
RHD GENERAL COUNTRIES,TYPE A; TYPE A
TYPE B
main69005-BZ730supersedes 69005-BZ720iF654..5F..GCC;F654..SPO..PHL;F654..4AT..(MID,STD)..(GCC,TH)201507-201904
TYPE C
TYPE C
COSTA RICA
69503AKEY, BLANK
BLANK KEY; BLANK KEY,G+THATCHAM
BLANK KEY; BLANK KEY,G+THATCHAM
69513APAD, DOOR CYLINDER
69551RETAINER, BACK DOOR LOCK CYLINDER
main61317-BZ020iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901
69682RETAINER, LOCK CYLINDER
G+THATCHAM
89742ATRANSMITTER, DOOR CONTROL
G+THATCHAM
RHD GENERAL COUNTRIES
89751BCOVER, TRANSMITTER HOUSING
main89751-BZ060iF651,652..GCC,MA,SA,TH; F651,652..MA; F652..GEN,MXC,PHL;F651..(MID,STD)..GEN; F652..MXC201411-201508
DESTINATION PACKAGE(ALL)-PERU; G+THATCHAM
RHD GENERAL COUNTRIES
89752ACASE, TRANSMITTER HOUSING
main89752-BZ070iF651,652..GCC,MA,SA,TH; F651,652..MA; F652..GEN,MXC,PHL;F651..(MID,STD)..GEN; F652..MXC201411-201508
DESTINATION PACKAGE(ALL)-PERU; G+THATCHAM
12 parts on this diagram · 3 diagrams in section
LOCK CYLINDER SET for Toyota AVANZA
This section contains 22 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota AVANZA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
