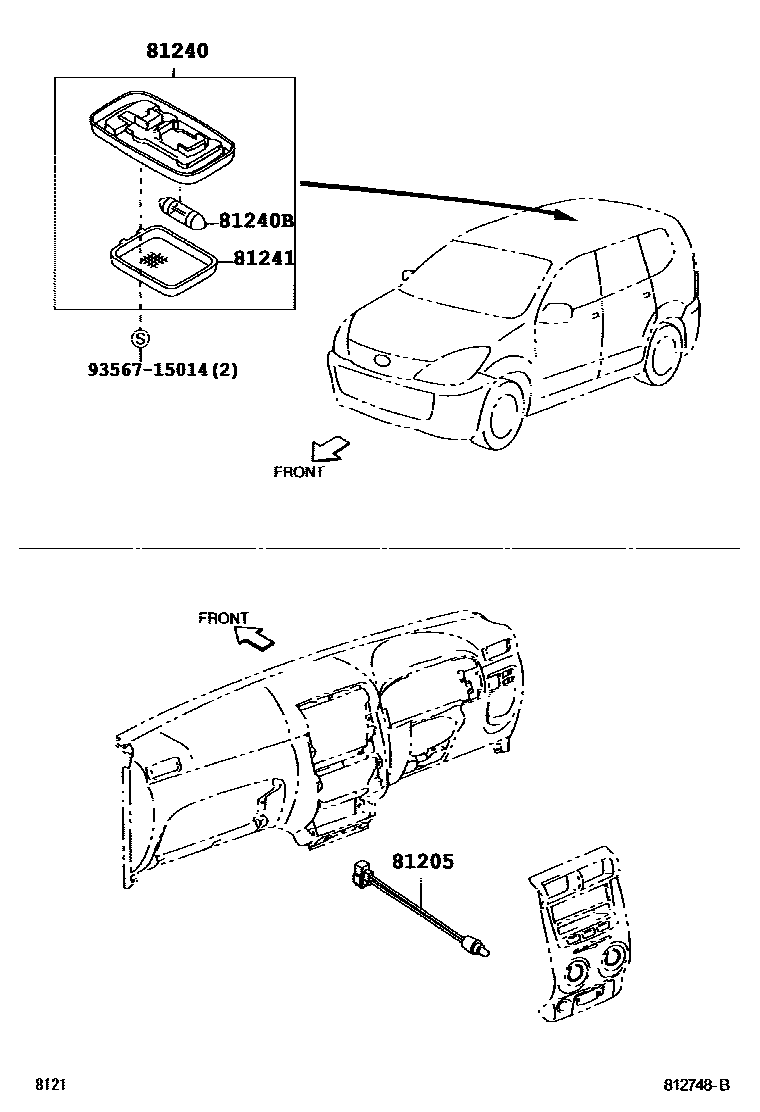

Toyota AVANZA — INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81240LAMP ASSY, ROOM, NO.1
main81240-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810
IVORY,TRIM0#
LT.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#
LT.GRAY,TRIM1#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
12V 8W
12V 8W
9356715014
main93567-15014
5 parts on this diagram · 2 diagrams in section
INTERIOR LAMP for Toyota AVANZA
This section contains 7 genuine Toyota parts for the INTERIOR LAMP system of the Toyota AVANZA. Key components include: LAMP SUB-ASSY, ASH RECEPTACLE, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2.
