Toyota AVANZA — INSTRUMENT PANEL & GLOVE COMPARTMENT

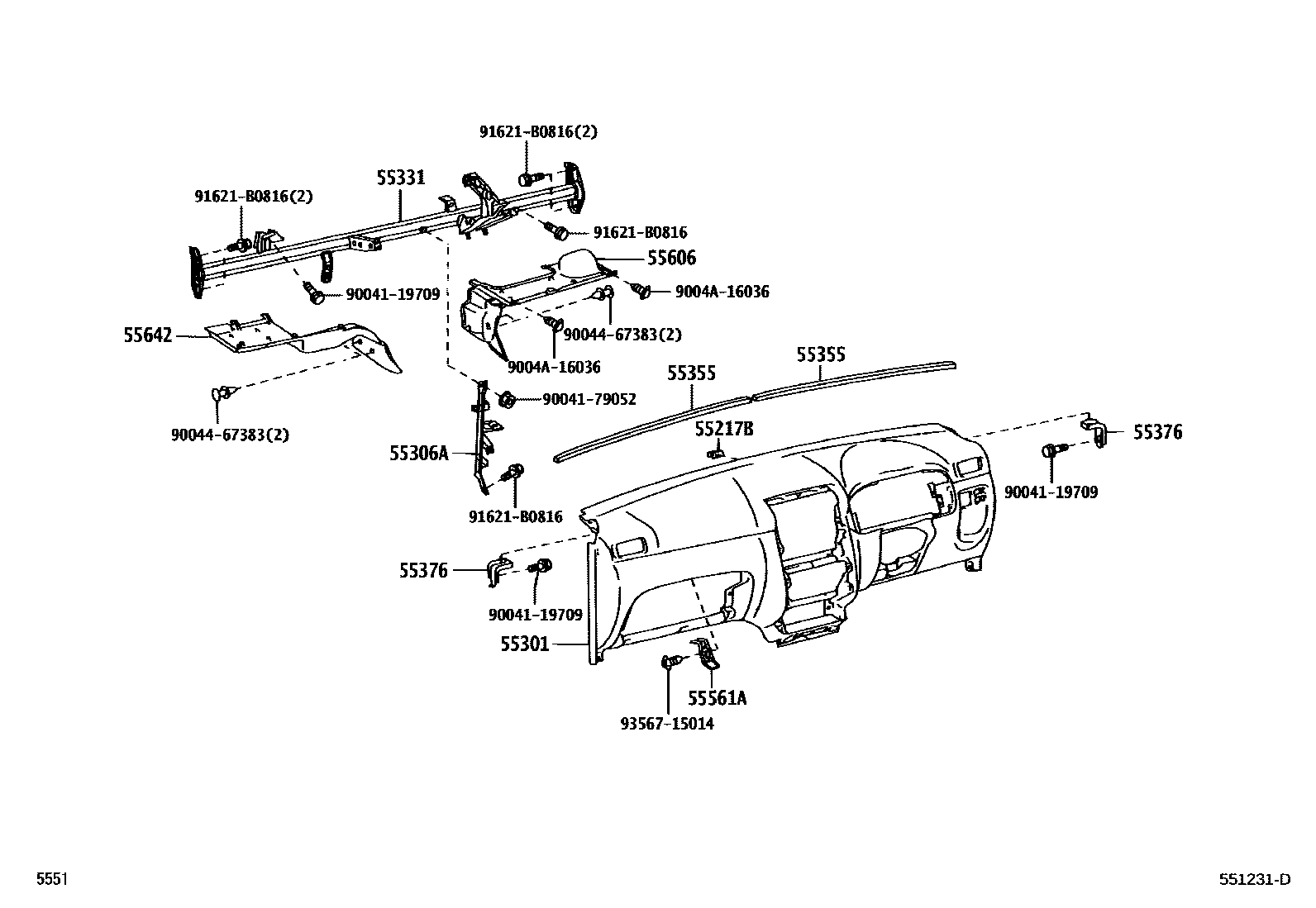

Parts diagram

55217BRETAINER, DASH PANEL SILENCER

main55217-97201×3i200312-200608

main55217-BZ030×3i200802

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ010-B0i200312-200608

DK.GRAY,TRIM1#

main55311-BZ080-B0i200810

DK.GRAY,TRIM1#

main55311-BZ080-E0i200608-200810

SANDAL WOOD,TRIM0#

main55311-BZ090-B0i201011

DK.GRAY,TRIM1#

main55311-BZ090-E0i200609-200811

SANDAL WOOD,TRIM0#

main55311-BZ090-E1i200811-201011

ASH BROWN,TRIM4#

main55311-BZ100-B0i200706

DK.GRAY,TRIM1#

main55311-BZ100-E0i200608-200810

SANDAL WOOD,TRIM0#

main55311-BZ110-B0i200610

DK.GRAY,TRIM1#

main55311-BZ110-E0i200610-200705

SANDAL WOOD,TRIM0#

main55311-BZ120-E0i200610-200810

SANDAL WOOD,TRIM0#

main55311-BZ120-E1i200810

ASH BROWN,TRIM4#

main55311-BZ130-B0i200610

DK.GRAY,TRIM1#

main55311-BZ130-E0i200610-200810

SANDAL WOOD,TRIM0#

main55311-BZ130-E1i200810

ASH BROWN,TRIM4#

main55311-BZ150-B0i200610

DK.GRAY,TRIM1#

main55311-BZ150-E0i200608-200810

SANDAL WOOD,TRIM0#

main55311-BZ150-E1i200810

ASH BROWN,TRIM4#

main55311-BZ180-B0i201011

DK.GRAY,TRIM1#

main55311-BZ180-E0i200609-200811

SANDAL WOOD,TRIM0#

main55311-BZ180-E1i200811-201011

ASH BROWN,TRIM4#

main55311-BZ260-E0i200705-200810

SANDAL WOOD,TRIM0#

main55311-BZ260-E1i200810

ASH BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-BZ010i200312-200608

main55306-BZ020i200608-200911

main55306-BZ040i200608

main55306-BZ050i200608

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZ010i200312-200608

main55305-BZ020i200404-200608

main55305-BZ050i200610-201101

main55305-BZ051i201101

main55305-BZ060i200609

main55305-BZ070i200608-201009

main55305-BZ071i201009-201101

main55305-BZ072i201101

main55305-BZ080i200608-201101

main55305-BZ081i201101

main55305-BZ090i200609

main55305-BZ100i200608

main55305-BZ110i200610

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-BZ010×2i200312-200608

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-BZ010×2i200312-200608

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-BZ010i200608-200911

main55561-BZ040i200608

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55641-BZ010-B0i200312-200608

DK.GRAY,TRIM1#

main55641-BZ010-E0i200608-200810

SANDAL WOOD,TRIM0#

main55641-BZ010-E1i200810-200911

ASH BROWN,TRIM4#

main55641-BZ050-B0i200706

DK.GRAY,TRIM1#

main55641-BZ050-E0i200608-200810

SANDAL WOOD,TRIM0#

main55641-BZ060-B0i200608

DK.GRAY,TRIM1#

main55641-BZ060-E0i200610-200810

SANDAL WOOD,TRIM0#

main55641-BZ060-E1i200810

ASH BROWN,TRIM4#

55642COVER, INSTRUMENT PANEL UNDER, NO.2

main55642-BZ010-B0i200312-200608

DK.GRAY,TRIM1#

main55642-BZ020-B0i200404-200608

DK.GRAY,TRIM1#

main55642-BZ020-E0i200608-200810

SANDAL WOOD,TRIM0#

main55642-BZ020-E1i200810-200911

ASH BROWN,TRIM4#

main55642-BZ040-B0i200706

DK.GRAY,TRIM1#

main55642-BZ040-E0i200608-200810

SANDAL WOOD,TRIM0#

main55642-BZ050-B0i200608

DK.GRAY,TRIM1#

main55642-BZ050-E0i200610-200810

SANDAL WOOD,TRIM0#

main55642-BZ050-E1i200810

ASH BROWN,TRIM4#

9004119709

main90041-19709

9004179052

main90041-79052

9004467383

main90044-67383

9004A16036

main9004A-16036

91621B0816

main91621-B0816

9356715014

main93567-15014

15 parts on this diagram · 9 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota AVANZA

This section contains 54 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota AVANZA. Key components include: REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, RETAINER, DASH PANEL SILENCER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, REINFORCEMENT, INSTRUMENT PANEL.
