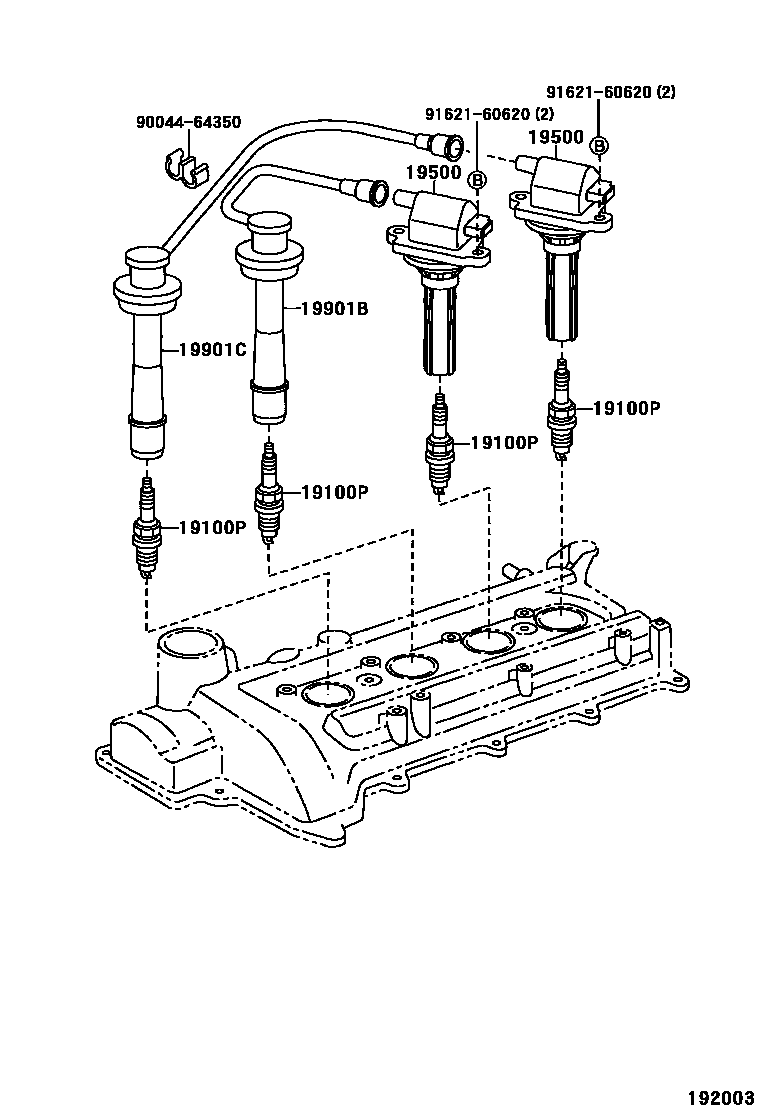

Toyota AVANZA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90048-51163×4i200404-200608

K20R-U11

main9004A-91011×4i200410-200608

BKR6EY

main9004A-91016×4i200312-200608

K20PR-U

main9004A-91020×4i200312-200608

BKR6E

main9004A-91031×4i200609-200911

XU22PR9

main9004A-91032×4i200608

XU22PR9

main9004A-91039×4i200608

DCPR7EA-9

main9004A-91041×4i200609-200911

DCPR7EA-9

19500COIL ASSY, IGNITION

main19070-B1020×4i200811

main19070-BZ040×4i200609

main19070-BZ060×4i200410-200608

main19500-B0010×2i200312-200608

main90048-52130×4i200404-200410

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90048-58297i200312-200608

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90048-58298i200312-200608

9004464350

main90044-64350

9162160620

main91621-60620

6 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota AVANZA

This section contains 9 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota AVANZA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, CORD, SPARK PLUG RESISTIVE, NO.1, CORD, SPARK PLUG RESISTIVE, NO.2.
