Toyota AVANZA — HOOD LOCK & HINGE

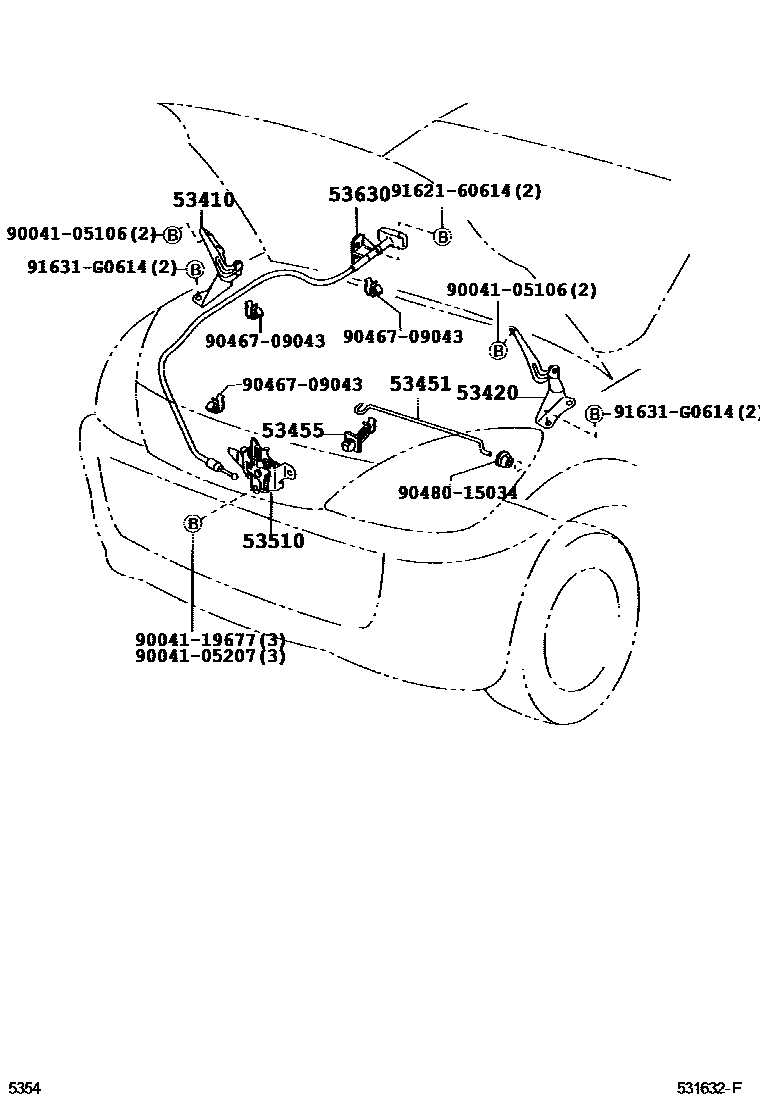

Parts diagram

53410HINGE ASSY, HOOD, RH

main53410-BZ010i200312-200608

53420HINGE ASSY, HOOD, LH

main53420-BZ010i200312-200608

53451ROD, HOOD SUPPORT

main53451-BZ010i200312-200608

53455CLAMP, HOOD SUPPORT ROD

main53455-97401i200312-200608

main53455-BZ080i200812

53510LOCK ASSY, HOOD

main53510-BZ010i200312-200608

main53510-BZ011i200608-200911

main53510-BZ040i200608

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ010i200312-200608

main53630-BZ040i200608-200911

L=1465

main53630-BZ041i201011

L=1475

main53630-BZ050i200608

9004105106

main90041-05106

9004105207

main90041-05207

9004119677

main90041-19677

9046709043

main90467-09043

9048015034

main90480-15034

9162160614

main91621-60614

91631G0614

main91631-G0614

13 parts on this diagram · 2 diagrams in section

HOOD LOCK & HINGE for Toyota AVANZA

This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota AVANZA. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, CLAMP, HOOD SUPPORT ROD, LOCK ASSY, HOOD.
