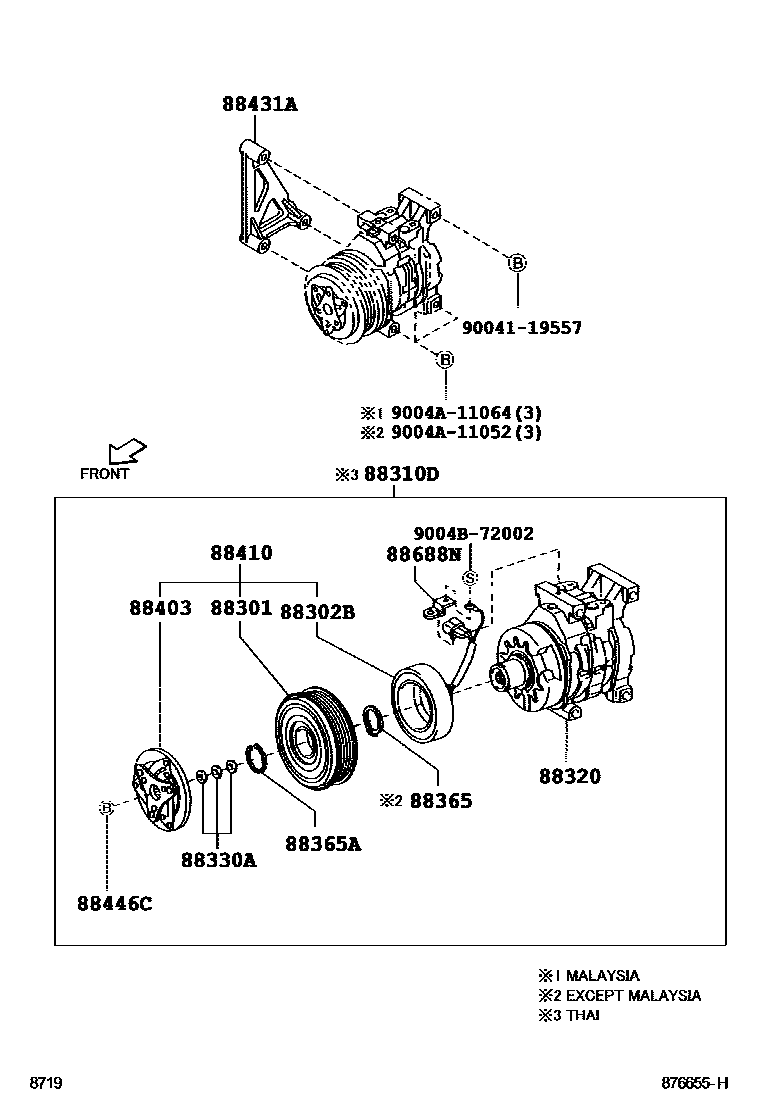

Toyota AVANZA — HEATING & AIR CONDITIONING - COMPRESSOR
88301ROTOR SUB-ASSY, MAGNET CLUTCH
SINGLE
88302BSTATOR, MAGNET CLUTCH
SINGLE
88310DCOMPRESSOR ASSY, W/PULLEY
88320COMPRESSOR ASSY, COOLER
DUAL
SINGLE
88330AWASHER (FOR MAGNET CLUTCH)
T=0.1
T=0.3
T=0.5
T=0.1
T=0.1,DUAL
T=0.1,SINGLE
T=0.3,SINGLE
T=0.3
T=0.3,DUAL
T=0.5,SINGLE
T=0.5
T=0.5,DUAL
88365RING, SNAP
88365ARING, SNAP (FOR COMPRESSOR)
DUAL
SINGLE
88403HUB SUB-ASSY, MAGNET CLUTCH
DUAL
SINGLE
88410CLUTCH ASSY, MAGNET
SINGLE
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88431ABRACKET, COMPRESSOR MOUNTING, NO.2
88446CBOLT, MAGNET CLUTCH SETTING
SINGLE
DUAL
88688NBRACKET, COOLER
SINGLE
9004119557
main90041-19557
9004A11052
main9004A-11052
9004A11064
main9004A-11064
9004B72002
main9004B-72002
17 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota AVANZA
This section contains 25 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota AVANZA. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR, MAGNET CLUTCH, COMPRESSOR ASSY, W/PULLEY, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
