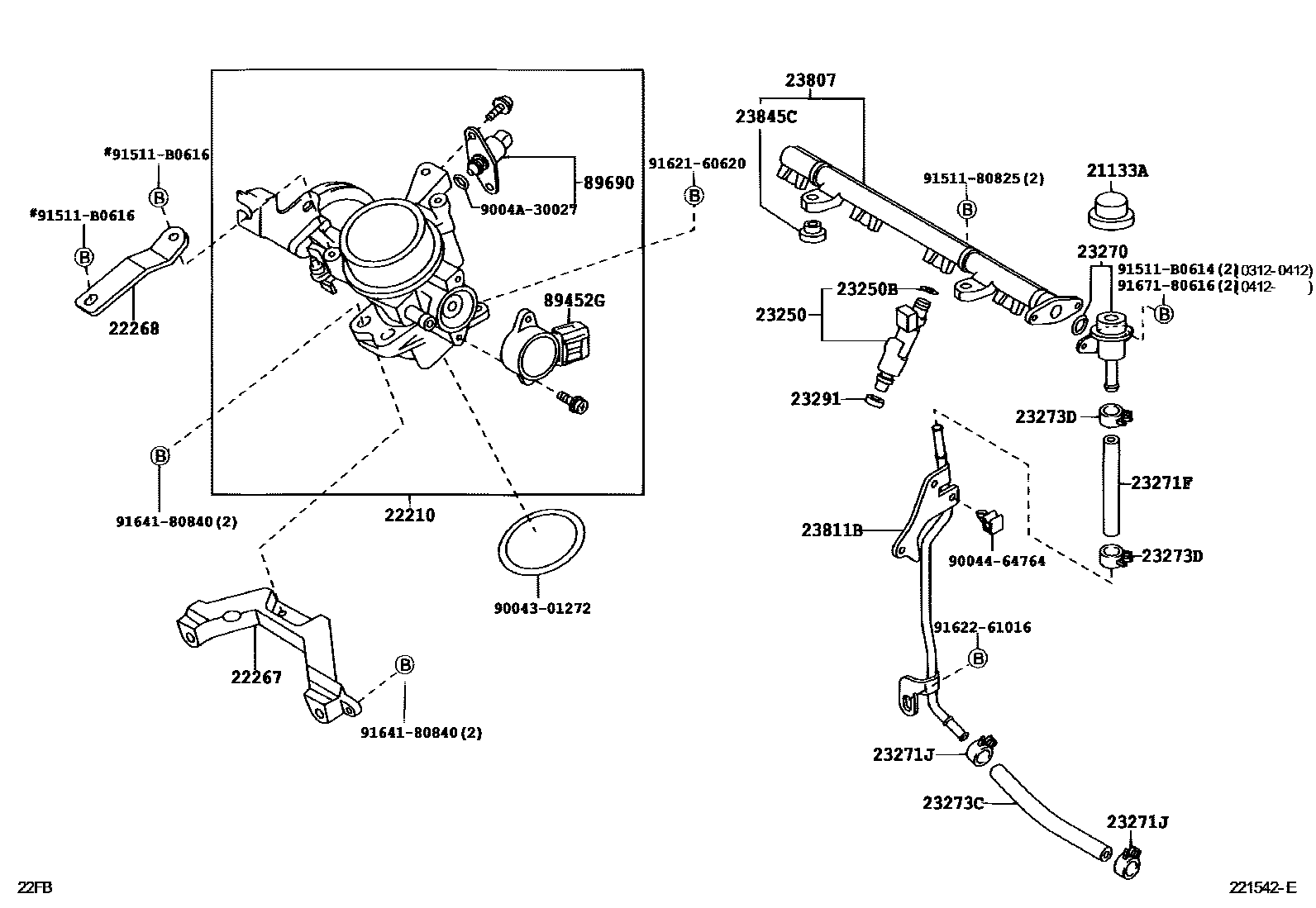

Toyota AVANZA — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1K3,3SZ 0006 1 0007 1K3,3SZ

21133ACOVER, DUST

main21133-B0010iK3#..F601200312-200608

main21133-BZ020iK3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH200905

22210BODY ASSY, THROTTLE

main22210-97401iK3VE..F601..TH200404-200410

main22210-BZ020iK3DE..F601200312-200608

main22210-BZ040iK3VE..F601..TH200410-200608

main22210-BZ080iK3VE..F601..4AT200608-200911

sub22210-BZ081

main22210-BZ090iK3VE..F601..CTM,DLX,STD;3SZVE..F602..(DLX,G,GL)..(GEN,MXC,SA)200608

sub22210-BZ091

22267BRACKET, THROTTLE BODY

main22267-BZ010iK3#..F601200312-200608

main22267-BZ020iK3VE..F601..4AT200608-200911

22268BRACKET, THROTTLE BODY, NO.2

main22268-BZ010iK3#..F601200312-200608

23250INJECTOR ASSY, FUEL

main23250-97401×4iK3VE..F601..BRU,IDN,MA200404-200608

main23250-BZ010×4iK3DE..F601;K3VE..F601..LIMD200312-200608

main23250-BZ030×4iK3VE..F601..4AT200609-200911

23250BRING, O(FOR FUEL INJECTOR)

main90043-01136×4i3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA200608

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-97501iK3VE..F601..4AT200608-200911

23271FHOSE, FUEL

main23271-B0020iK3#..F601200312-200608

L=95 OD=14.3 ID=7.5

23271JCLAMP, NO.2(FOR FUEL HOSE)

main90044-67190×2iK3#..F601200312-200608

main90044-67234×2iK3VE..F601..4AT200608-200911

23273CHOSE, FUEL, NO.2

main23273-B0020iK3#..F601200312-200608

main23273-B0021i3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA201003

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67190×2iK3#..F601200312-200608

main90044-67234×2iK3VE..F601..4AT200608-200911

23291INSULATOR, INJECTOR VIBRATION

main23291-BZ010×4iK3#..F601200312-200608

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-97403iK3VE..F601..MA200410-200608

main23807-BZ030iK3#..F601..BRU,IDN,TH200312-200608

23811BPIPE, FUEL, NO.1

main23811-BZ020iK3#..F601200312-200608

main23811-BZ030i3SZVE..F602200608-201003

main23811-BZ031i3SZVE..F602201003

main23811-BZ070iK3VE..F601..4AT200608-200911

main23811-BZ071iK3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA201003

23845CINSULATOR, FUEL PIPE

main23845-97401×2iK3VE..F601..4AT200609-200911

main23845-BZ010×2iK3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH200608

89452GSENSOR, THROTTLE POSITION

main89452-87Z01iF60#200608-200902

main89452-97401iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200902

89690ACTUATOR ASSY, IDLE SPEED CONTROL

main89690-87Z01iF601..LVVT;F601..LIMD200312-200608

main89690-97202iF601..4AT200608-200911

sub89690-B1010

9004301272

main90043-01272

9004464764

main90044-64764

9004A30027

main9004A-30027

9151180825

main91511-80825

91511B0614

main91511-B0614

91511B0616

main91511-B0616

9162160620

main91621-60620

9162261016

main91622-61016

9164180840

main91641-80840

9167180616

main91671-80616

27 parts on this diagram · 7 diagrams in section
