Toyota AVANZA — FRONT STEERING GEAR & LINK

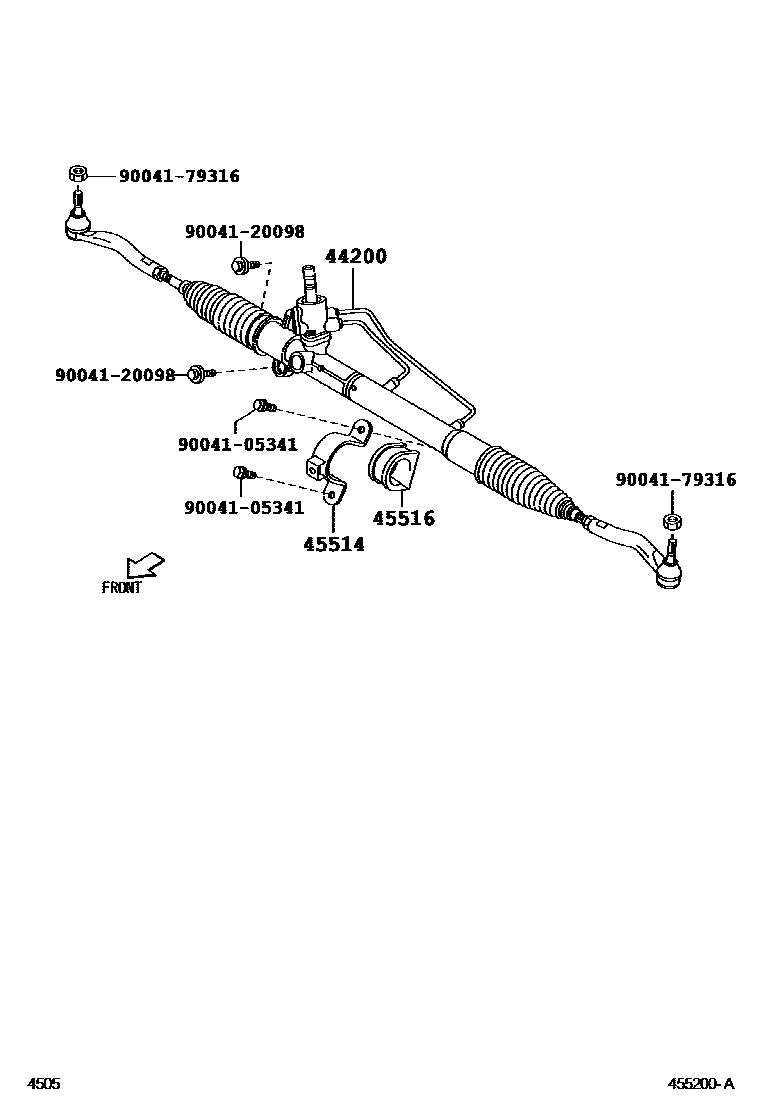

Parts diagram

44200LINK ASSY, POWER STEERING

main44200-BZ010i200312-200608

main44200-BZ011i200608-200708

main44200-BZ040i200608-201111

main44200-BZ041i201202

main44200-BZ050i200608-201111

main44200-BZ051i201202

main44200-BZ060i200708-200709

main44200-BZ061i200709-201110

main44200-BZ062i201111

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-BZ010i200608

main45514-BZ020i200608-200911

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-BZ010i200312-200608

9004105341

main90041-05341

9004120098

main90041-20098

9004179316

main90041-79316

6 parts on this diagram · 4 diagrams in section

FRONT STEERING GEAR & LINK for Toyota AVANZA

This section contains 31 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota AVANZA. Key components include: RING, SEAL, NO.2, LINK ASSY, POWER STEERING, RACK SUB-ASSY, POWER STEERING, STOPPER SUB-ASSY, CYLINDER END, VALVE ASSY, POWER STEERING CONTROL.
