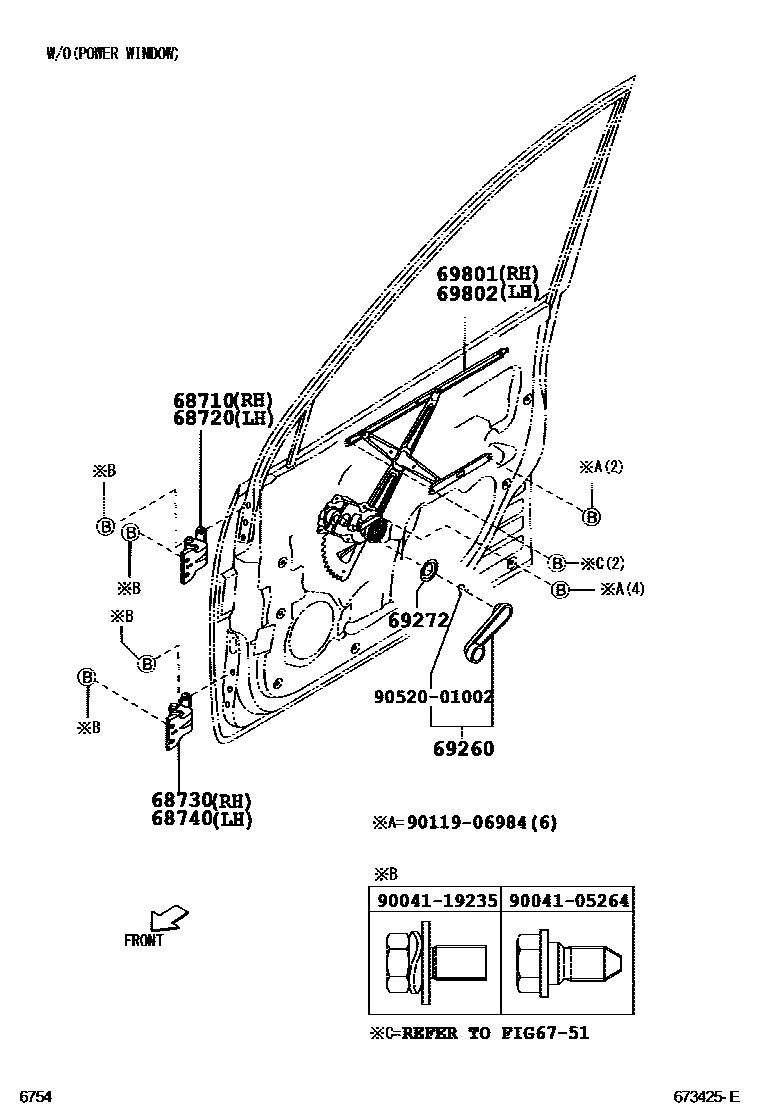

Toyota AVANZA — FRONT DOOR WINDOW REGULATOR & HINGE
6751FRONT DOOR PANEL & GLASS
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
DK.GRAY,TRIM1#
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
9004105264
main90041-05264
9004119235
main90041-19235
9011906984
main90119-06984
9052001002
main90520-01002
13 parts on this diagram · 2 diagrams in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota AVANZA
This section contains 17 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota AVANZA. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
