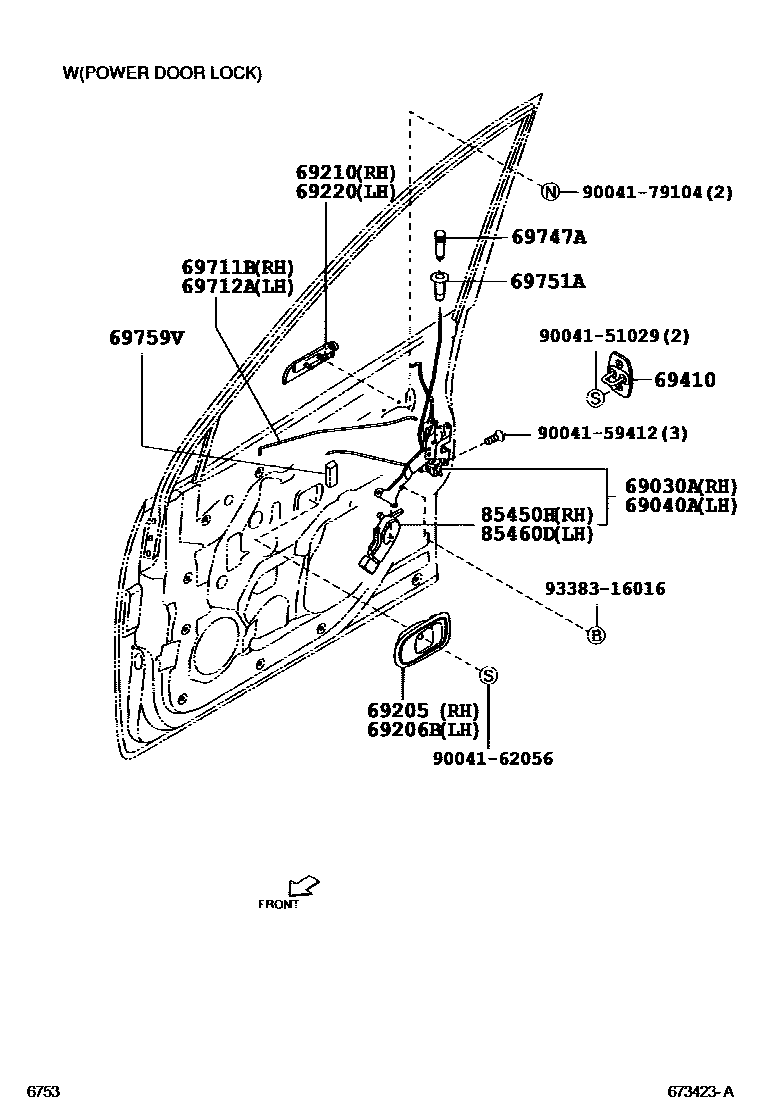

Toyota AVANZA — FRONT DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-BZ010iF601..LVVT200312-200608

main69030-BZ020iF601..WVVT200404-200608

main69030-BZ040iF602..LHD200610

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-BZ010iF601200312-200608

main69040-BZ030iF602..LHD200610

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main69270-BZ010-B0iF601200312-200608

DK.GRAY,TRIM1#

main69270-BZ010-E0iF601..4AT..IDN200810-200912

GREGE,TRIM4#

main69270-BZ011-B0iF602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA)200912

DK.GRAY,TRIM1#

sub69270-BZ012

sub90041-67041

main69270-BZ011-E0iF602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200912

GREGE,TRIM4#

sub69270-BZ012

sub90041-67041

main69270-BZ050-A0iF602..MXC200610-200810

IVORY,TRIM0#

main69270-BZ050-E0iF602..MXC200810-200911

GREGE,TRIM4#

main69270-BZ051-E0iF602..MXC200912

GREGE,TRIM4#

sub69270-BZ052

sub90041-67041

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main69280-BZ010-B0iF601200312-200608

DK.GRAY,TRIM1#

main69280-BZ010-E0iF601..4AT..IDN200810-200912

GREGE,TRIM4#

main69280-BZ011-B0iF602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA)200912

DK.GRAY,TRIM1#

sub69280-BZ012

sub90041-67041

main69280-BZ011-E0iF602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200912

GREGE,TRIM4#

sub69280-BZ012

sub90041-67041

main69280-BZ050-A0iF602..MXC200610-200810

IVORY,TRIM0#

main69280-BZ050-E0iF602..MXC200810-200911

GREGE,TRIM4#

main69280-BZ051-E0iF602..MXC200912

GREGE,TRIM4#

sub69280-BZ052

sub90041-67041

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-BZ020iF601..DLX..SA200710-200810

NO PAINT REQ.

main69210-BZ040iF601..CTM,DLX,J,STD200608-200710

NO PAINT REQ.

main69210-BZ080iF601..LVVT200312-200411

PAINT REQ.

main69210-BZ130iF602..(GL,S)..(SA,TH)200810

PLATED

sub69210-BZ230

main69210-BZ160iF601..DLX..SA200810

PAINT REQ.

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-BZ020iF601..DLX..GEN;F601..CTM,J,STD200710

NO PAINT REQ.

main69220-BZ040iF601..CTM,DLX,J,STD200608-200710

NO PAINT REQ.

main69220-BZ080iF601..LVVT200312-200411

PAINT REQ.

main69220-BZ130iF602..RHD..(GEN,IDN,MA)200608

PLATED

sub69220-BZ230

main69220-BZ160iF602..DLX;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200608

PAINT REQ.

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-BZ010×2iF601200312-200608

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-BZ010iF601..4AT200608-200911

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-BZ010iF601200312-200608

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69743-B0010×2iF601..S200512-200608

main69743-BZ030-A0×2iF60#..MA200610-200611

IVORY,TRIM0#

main69743-BZ030-B0×2iF601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH)200610-200803

DK.GRAY,TRIM1#

main69743-BZ040-B0×2iF601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH)200804

GRAY,TRIM1#

main69743-BZ040-E0×2iF60#..RHD..(GEN,IDN);F602..(E,G,J)..(GEN,PHL,TH)200804

GREGE,TRIM4#

main69747-87103×2iF602..MXC200610

main69747-87103-B0×2iF601..S200408-200512

DK.GRAY,TRIM1#

main69747-87703-A0×2iF60#..MA200608-200610

IVORY,TRIM0#

main69747-87703-B2×2iF602..MA;F601..5F..MA201011

DK.GRAY,TRIM1#

main69747-87703-E1×2iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-87703-A0×2iF60#..MA200608-200811

IVORY,TRIM0#

main69751-87703-B0×2iF601..E,G,GL,LIMD200312-200608

DK.GRAY,TRIM1#

main69751-87703-E1×2iF602..(E,S)..MA200810-201011

GREGE,TRIM4#

main69751-87704-B0×2iF601..CTM,J;F601..DLX..GEN200608

DK.GRAY,TRIM1#

main69751-B0010×2iF601..S200404-200608

main69751-BZ040-B0×2iF60#..(DLX,GL,S,STD)..(SA,TH)200907

DK.GRAY,TRIM1#

main69751-BZ040-E0×2iF60#..RHD..(GEN,IDN);F602..(E,G,J)..(GEN,PHL,TH)200907

GREGE,TRIM4#

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-87Z03×2iF601200312-200608

85450HMOTOR ASSY, DOOR CONTROL, FRONT RH

main85450-BZ010iF601..LVVT200312-200608

main85450-BZ020iF601..WVVT200404-200608

main85450-BZ050iF602..LHD200610

85460DMOTOR ASSY, DOOR CONTROL, FRONT LH

main85460-BZ010iF601200312-200608

main85460-BZ040iF602..LHD200610

9004151029

main90041-51029

9004159412

main90041-59412

9004162056

main90041-62056

9004179104

main90041-79104

9338316016

main93383-16016

19 parts on this diagram · 3 diagrams in section
