Toyota AVANZA — FRONT BUMPER & BUMPER STAY

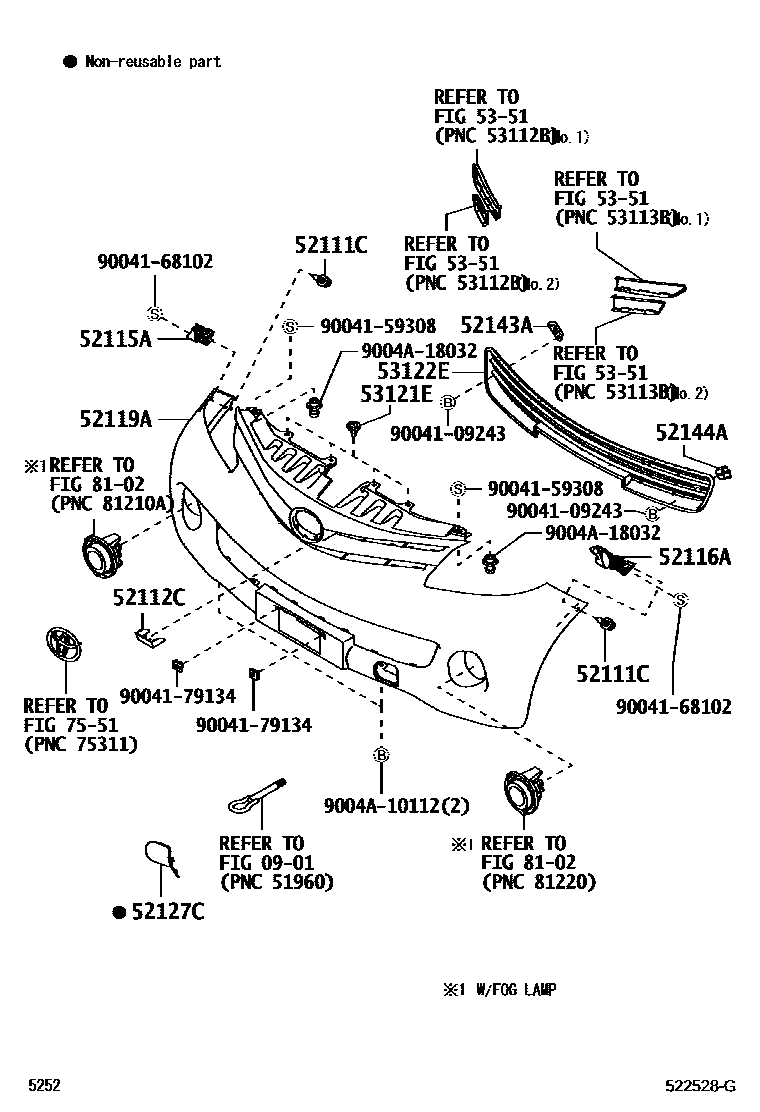

Parts diagram
0901STANDARD TOOL
→ Go to FIG 09-01
52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
main55394-60050×2i201111-201508
52112CEXTENSION, FRONT BUMPER
main52112-BZ080i201111-201507
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-BZ120i201901-202110
main52115-BZ150i201111-201507
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-BZ140i201111-201507
main52116-BZ150i201901-202110
52119ACOVER, FRONT BUMPER
main52119-BZA70i201111-201507
main52119-BZA80i201111-201508
main52119-BZB00i201111-201507
main52119-BZB10i201111-201507
main52119-BZD10i201507-201801
L(FOG LAMP)
main52119-BZD11i201801-201901
L(FOG LAMP)
main52119-BZD20i201507-201801
W(FOG LAMP)
main52119-BZD21i201801-201901
W(FOG LAMP)
main52119-BZD50i201507-201801
main52119-BZD51i201801-201901
main52119-BZN60supersedes 52119-BZD21i201901-202110
W(FOG LAMP)
main52119-BZN70i201901-202201
L(FOG LAMP)
52127CCOVER, FRONT BUMPER HOLE
main52127-BZ370i201111-201507
main52127-BZ390i201111-201507
52143AARM, FRONT BUMPER, INNER RH
main52143-BZ060i201111-201507
52144AARM, FRONT BUMPER, INNER LH
main52144-BZ060i201111-201507
53121ECLIP(FOR FRONT BUMPER), NO.1
main90044-68320×4i201111-201302
main9004A-46323×6i201507-201904
53122EMOULDING, RADIATOR GRILLE, LOWER
main53123-BZ060i201111-201508
main53123-BZ070i201111-201508
5351RADIATOR GRILLE
→ Go to FIG 53-51
7551EMBLEM & NAME PLATE
→ Go to FIG 75-51
8102FOG LAMP
→ Go to FIG 81-02
9004109243
main90041-09243
9004159308
main90041-59308
9004168102
main90041-68102
9004179134
main90041-79134
9004A10112
main9004A-10112
9004A18032
main9004A-18032

20 parts on this diagram · 6 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota AVANZA

This section contains 34 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota AVANZA. Key components include: STANDARD TOOL, BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER), EXTENSION, FRONT BUMPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH.
