Toyota AVANZA — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
main43211-BZ040iF602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)200608
43212KNUCKLE, STEERING, LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
9004101659
main90041-01659
9004116472
main90041-16472
9004170367
main90041-70367
9004A20020
main9004A-20020
8 parts on this diagram · 1 diagram in section

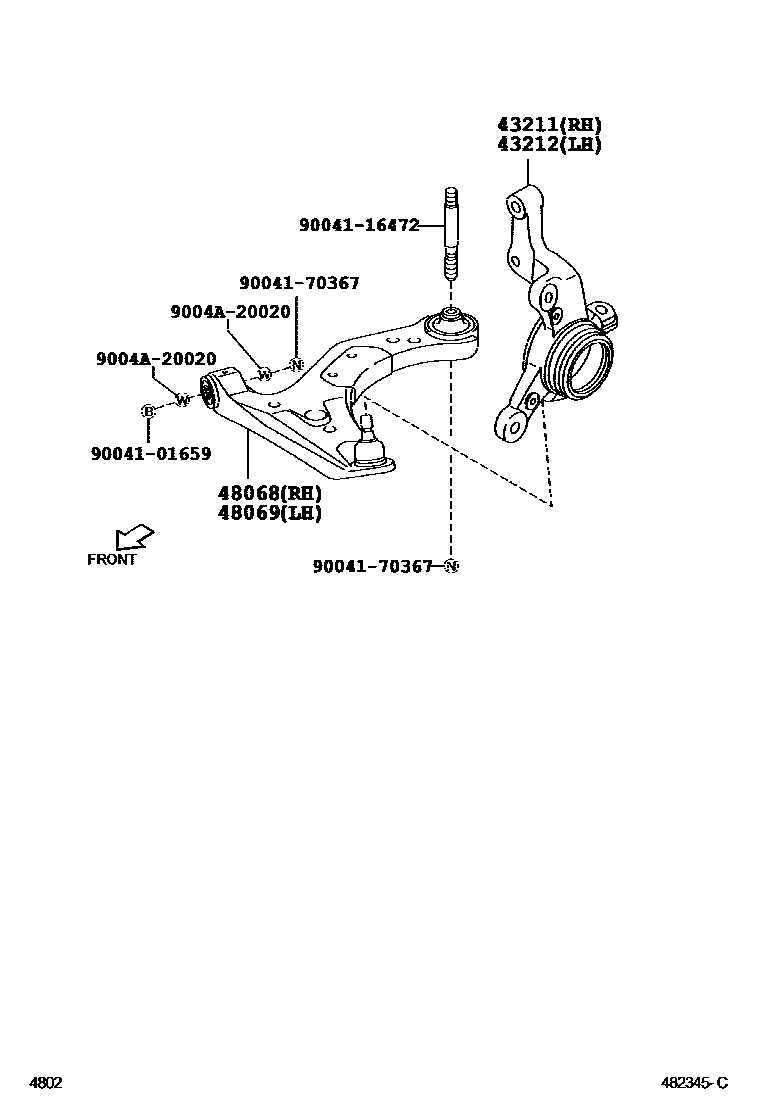

FRONT AXLE ARM & STEERING KNUCKLE for Toyota AVANZA
This section contains 8 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota AVANZA. Key components include: KNUCKLE, STEERING, RH, KNUCKLE, STEERING, LH, ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH, ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH.
