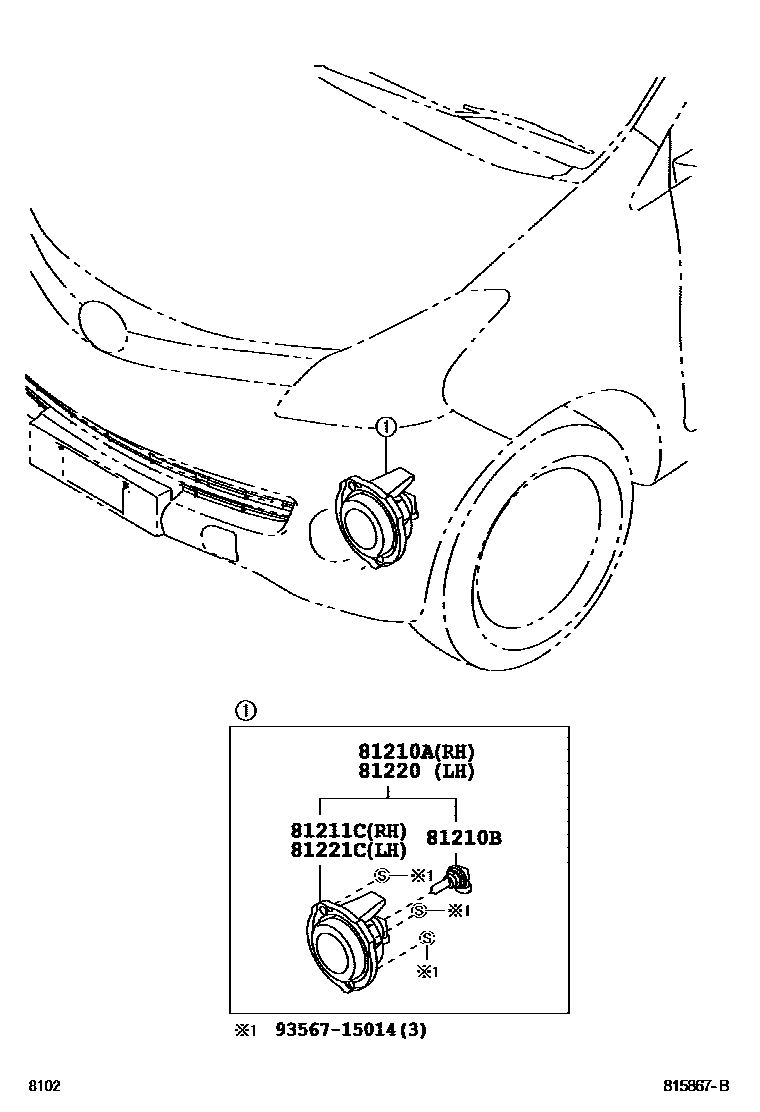

Toyota AVANZA — FOG LAMP

81210ALAMP ASSY, FOG, RH

main81210-BZ160i201111-201507

81210BBULB, FOG LAMP

main90049-51185×2i201111-201507

12V 19W H16

81211CLAMP UNIT, FOG LAMP, RH

main81211-BZ060i201111-201507

81220LAMP ASSY, FOG, LH

main81220-BZ160i201111-201507

81221CLAMP UNIT, FOG LAMP, LH

main81221-BZ060i201111-201507

9356715014

main93567-15014

6 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota AVANZA

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota AVANZA. Key components include: LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH, LAMP UNIT, FOG LAMP, LH.
