Toyota AVANZA — ELECTRONIC FUEL INJECTION SYSTEM

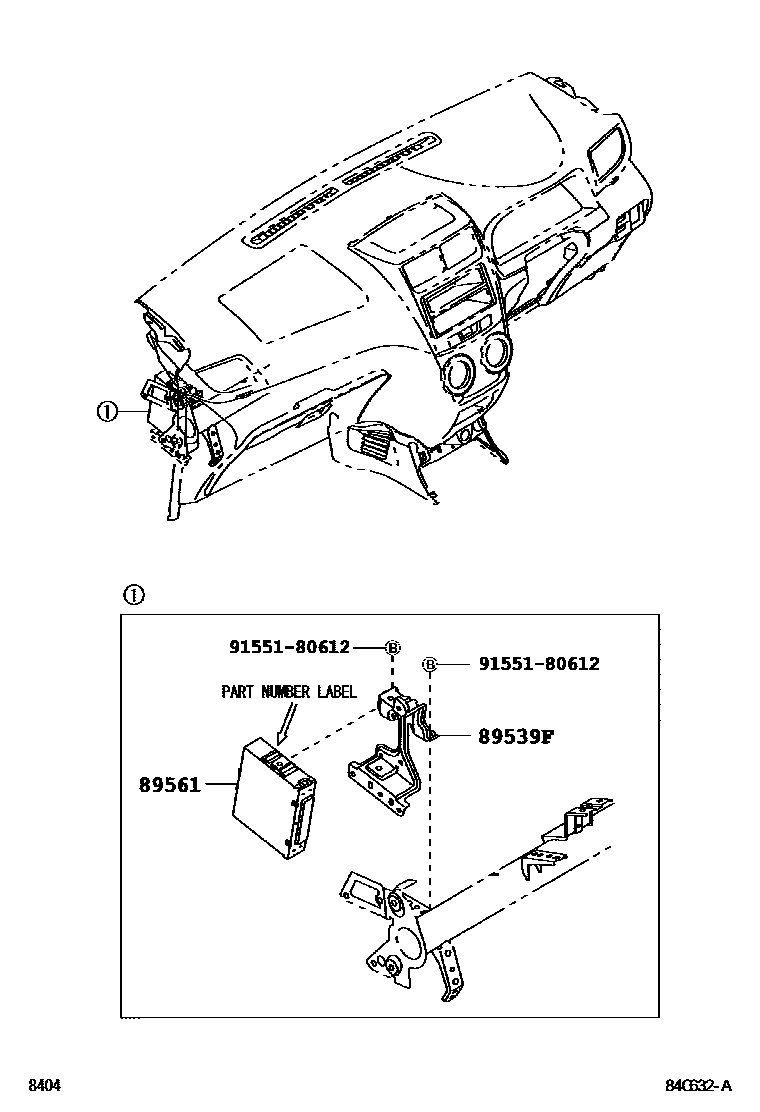

Parts diagram
89539FBRACKET, COMPUTER
main89539-BZ130i201507-201904
main89539-BZ310i201111-201508
D-OPT KIT
main89539-BZ320i201112-201508
89561COMPUTER, FUEL INJECTION
main89560-BY050i201810-201901
FUJITSU TEN,W/PART NUMBER LABEL
main89560-BY060i201810-201901
FUJITSU TEN,W/PART NUMBER LABEL
main89560-BY070i201810-201904
FUJITSU TEN,W/PART NUMBER LABEL
main89560-BY080i201810-201901
FUJITSU TEN,W/PART NUMBER LABEL
main89560-BY090i201901-202110
FUJITSU TEN
main89560-BY110i201901-202110
DENSO
main89560-BY120i201901-202110
DENSO
main89560-BY130i201901-202110
DENSO
main89560-BY200i201807-201904
FUJITSU TEN
main89560-BY210i201807-201904
FUJITSU TEN
main89560-BY220i201904-202201
FUJITSU TEN
main89560-BY260i201904
FUJITSU TEN
main89560-BY270i201807-201904
FUJITSU TEN,COSTA RICA
main89560-BY280i201904-202201
FUJITSU TEN
main89560-BY290i201807-201904
FUJITSU TEN
main89560-BZ770i201112-201211
W/PART NUMBER LABEL
main89560-BZ771i201211-201508
W/PART NUMBER LABEL
main89560-BZ780i201112-201211
W/PART NUMBER LABEL
main89560-BZ781i201211-201508
W/PART NUMBER LABEL
main89560-BZ840i201111-201211
W/PART NUMBER LABEL
main89560-BZ841i201211-201507
W/PART NUMBER LABEL
main89560-BZ850i201111-201211
W/PART NUMBER LABEL
main89560-BZ851i201211-201507
W/PART NUMBER LABEL
main89560-BZA10i201112-201211
W/PART NUMBER LABEL
main89560-BZA11i201211-201508
W/PART NUMBER LABEL
main89560-BZA20i201112-201211
W/PART NUMBER LABEL
main89560-BZA21i201211-201508
W/PART NUMBER LABEL
main89560-BZA30i201112-201211
W/PART NUMBER LABEL
main89560-BZA31i201211-201508
W/PART NUMBER LABEL
main89560-BZC20i201111-201211
SINGLE AIRCON (D-OPT),W/PART NUMBER LABEL
main89560-BZC21i201211-201508
SINGLE AIRCON (D-OPT),W/PART NUMBER LABEL
main89560-BZC30i201111-201211
W/PART NUMBER LABEL
main89560-BZC31i201211-201508
W/PART NUMBER LABEL
main89560-BZD00i201112-201211
W/PART NUMBER LABEL
main89560-BZD01i201211-201508
W/PART NUMBER LABEL
main89560-BZF90i201512-201603
main89560-BZF91i201604-201701
main89560-BZF92i201702-201807
main89560-BZJ70i201404-201410
W/PART NUMBER LABEL
main89560-BZJ71i201411-201508
W/PART NUMBER LABEL
sub89560-BZT90
main89560-BZK20i201507-201603
main89560-BZK21i201604-201701
main89560-BZK22i201702-201810
W/PART NUMBER LABEL
main89560-BZK30i201507-201603
main89560-BZK31i201604-201701
main89560-BZK32supersedes 89560-BY060i201702-201810
W/PART NUMBER LABEL
main89560-BZK40i201507-201603
main89560-BZK41i201604-201701
main89560-BZK42i201702-201810
W/PART NUMBER LABEL
main89560-BZK50i201507-201603
main89560-BZK51i201604-201701
main89560-BZK52i201702-201810
W/PART NUMBER LABEL
main89560-BZK70i201507-201603
main89560-BZK71i201604-201701
main89560-BZK72i201702-201810
W/PART NUMBER LABEL
main89560-BZK91i201604-201701
AIR CONDITIONER KIT(D-OPT)
main89560-BZK92supersedes 89560-BZK90i201702-201807
AIR CONDITIONER KIT(D-OPT)
main89560-BZL01i201604-201701
AIR CONDITIONER KIT(D-OPT)
main89560-BZL02supersedes 89560-BZL00i201702-201807
AIR CONDITIONER KIT(D-OPT)
main89560-BZL22supersedes 89560-BZL22i201904-202201
FUJITSU TEN
main89560-BZL30i201508-201604
SINGLE AIR CONDITIONER(D-OPT)
main89560-BZL31i201609-201701
SINGLE AIR CONDITIONER(D-OPT)
main89560-BZL32i201904-202201
FUJITSU TEN
main89560-BZL40i201508-201604
main89560-BZL41i201609-201701
main89560-BZL42i201702-201904
main89560-BZL50i201508-201604
main89560-BZL51i201609-201701
main89560-BZL52i201904-202201
FUJITSU TEN
main89560-BZL60i201508-201512
main89560-BZM00i201508-201603
main89560-BZM01i201604-201701
main89560-BZM02i201702-201807
main89560-BZM10i201508-201603
main89560-BZM11i201604-201701
main89560-BZM12supersedes 89560-BZM42i201702-201807
main89560-BZM20i201508-201603
main89560-BZM21i201604-201701
main89560-BZM22i201702-201904
main89560-BZM30i201508-201603
main89560-BZM31i201604-201701
main89560-BZM32i201904-202201
FUJITSU TEN,MYANMAR
main89560-BZM50i201508-201604
main89560-BZM51i201609-201701
main89560-BZM52i201702-201801
main89560-BZM60i201508-201604
main89560-BZM61i201609-201701
main89560-BZM62i201702-201801
main89560-BZR00i201508-201603
main89560-BZR01i201604-201701
main89560-BZR02i201904-202201
FUJITSU TEN
main89560-BZT70i201604-201609
main89560-BZT80i201604-201609
main89560-BZV10i201604-201609
SINGLE AIR CONDITIONER(D-OPT)
main89560-BZV20i201604-201609
main89560-BZV30i201604-201609
main89560-BZX20i201801-201807
FUJITSU TEN
main89560-BZX30i201801-201807
FUJITSU TEN
main89560-BY230i201904-202201
FUJITSU TEN,VIETNAM
main89560-BY240supersedes 89560-BZR92i201807-201904
FUJITSU TEN,VIETNAM
main89560-BY250supersedes 89560-BZL90i201807-201904
FUJITSU TEN,VIETNAM
main89560-BZK60supersedes 89560-BY080i201507-201603
RHD GENERAL COUNTRIES
main89560-BZK61supersedes 89560-BY080i201604-201701
RHD GENERAL COUNTRIES
main89560-BZK62supersedes 89560-BY080i201702-201901
RHD GENERAL COUNTRIES
main89560-BZL61i201604-201701
CAMBODIA/LAOS
main89560-BZL62i201702-201904
CAMBODIA/LAOS
main89560-BZL81supersedes 89560-BZL80i201604-201701
CAMBODIA/LAOS
main89560-BZL82supersedes 89560-BZL80i201904-202201
FUJITSU TEN,CAMBODIA/LAOS
main89560-BZQ80supersedes 89560-BZK82i201507-201603
RHD GENERAL COUNTRIES
main89560-BZQ81supersedes 89560-BZK82i201604-201701
RHD GENERAL COUNTRIES
main89560-BZQ82supersedes 89560-BZK82i201901-202110
FUJITSU TEN,RHD GENERAL COUNTRIES
main89560-BZQ90supersedes 89560-BZL90i201508-201603
CAMBODIA/LAOS
main89560-BZQ91supersedes 89560-BZL90i201604-201701
CAMBODIA/LAOS
main89560-BZQ92supersedes 89560-BZL90i201904-202201
FUJITSU TEN,CAMBODIA/LAOS
main89560-BZY20i201801-201807
FUJITSU TEN,VIETNAM
main89560-BZY30supersedes 89560-BZR92i201801-201807
FUJITSU TEN,VIETNAM
main89560-BZY40supersedes 89560-BZL90i201801-201807
FUJITSU TEN,VIETNAM
9155180612
main91551-80612

3 parts on this diagram · 3 diagrams in section
