Toyota AVANZA — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25,REPAIR
U/S 0.25,REPAIR
11711BEARING, CRANKSHAFT
MARK 2,MARK 2
MARK 3,MARK 3
MARK 4,MARK 4
MARK 5,MARK 5
MARK2
MARK3
MARK4
MARK5
MARK2
MARK3
MARK4
MARK5
13011RING SET, PISTON
STD
STD
STD
STD
STD
STD
O/S 0.50,REPAIR
O/S 0.50,REPAIR
O/S 0.50,REPAIR
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
O/S 0.50,REPAIR
O/S 0.50,REPAIR
O/S 0.50
13201ROD SUB-ASSY, CONNECTING
LOCAL SOURCED PARTS
ADM ONLY
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25,REPAIR
U/S 0.25,JAPAN SOURCED PARTS
U/S 0.25
U/S 0.25,LOCAL SOURCED PARTS
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
13457RING, FLYWHEEL SPACER
13471PULLEY, CRANKSHAFT
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
9004105255
main90041-05255
9004250196
main90042-50196
9004801037
main90048-01037

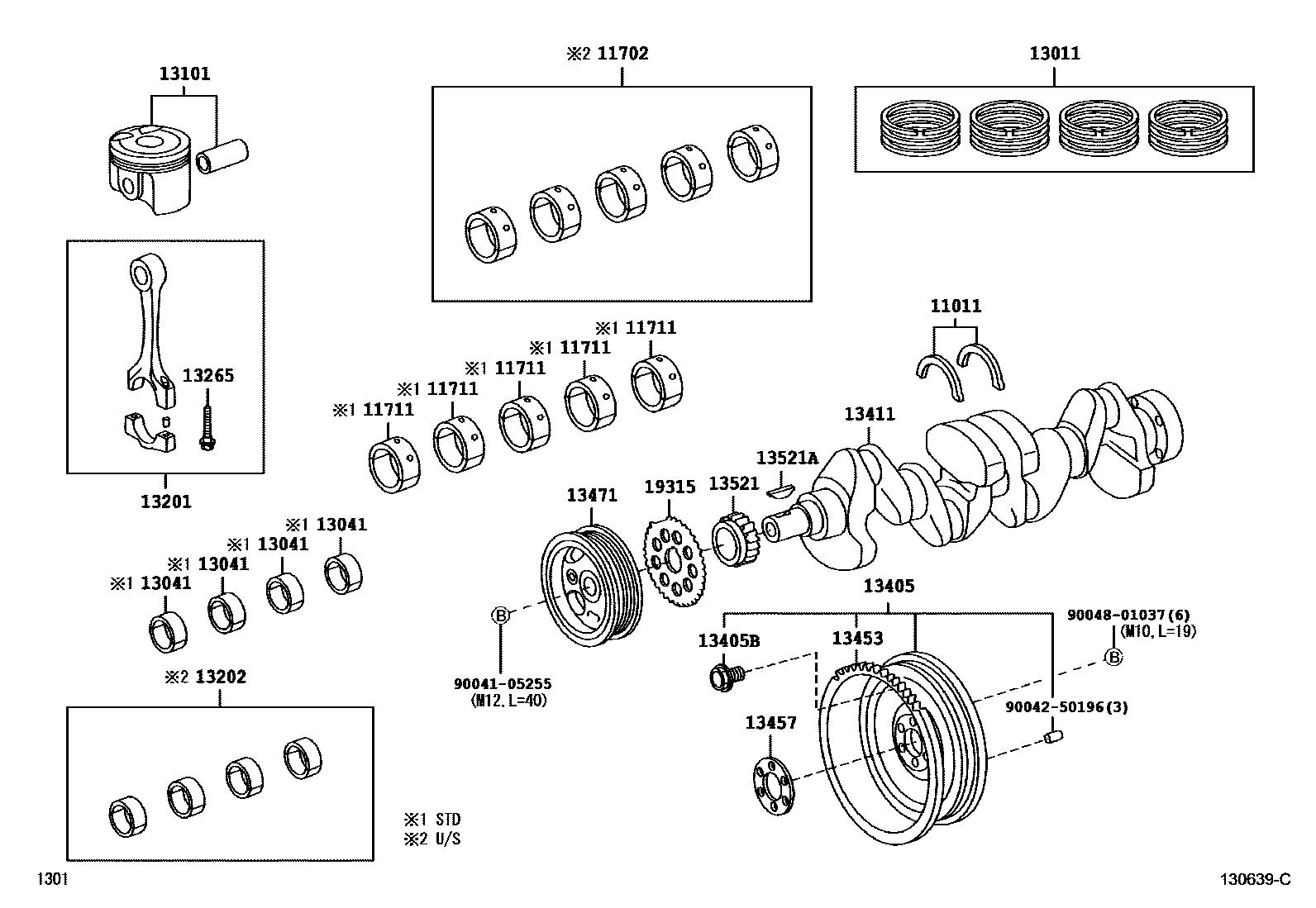

21 parts on this diagram · 3 diagrams in section
CRANKSHAFT & PISTON for Toyota AVANZA
This section contains 25 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota AVANZA. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON.
