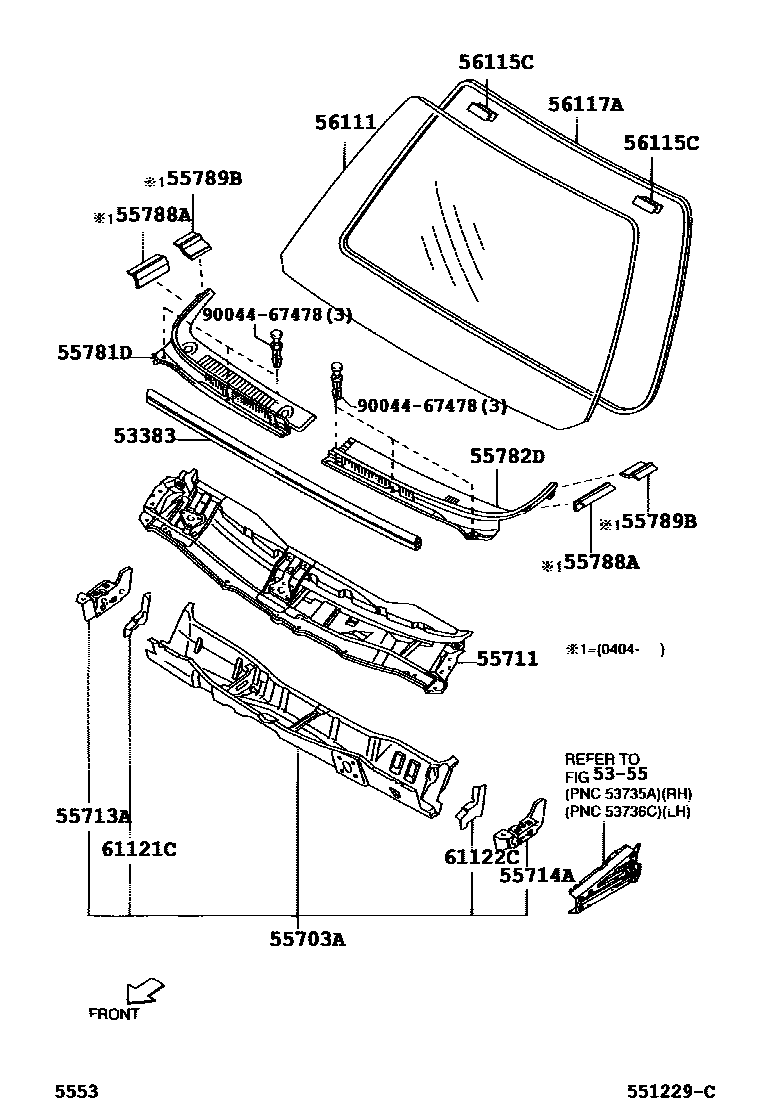

Toyota AVANZA — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-BZ010iF601200312-200608

5355

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ010iF601..LVVT200312-200608

main55703-BZ011iF60#..RHD..(GEN,IDN)200610

main55703-BZ020iF601..WVVT200404-200608

main55703-BZ021iF601..4AT200608-200911

main55703-BZ081iF60#..SA200608

main55703-BZ091iF602..LHD200611

main55703-BZ330iF602..TH201104

55711PANEL, COWL TOP, OUTER

main55701-BZ010iF601200312-200608

main55701-BZ050iF60#..LHD200608

main55701-BZ180iF60#..RHD..(GEN,IDN,SA,TH)201104

55713APANEL, COWL TOP SIDE, RH

main55713-BZ010iF601200312-200608

main55713-BZ011iF602..J200610-201104

main55713-BZ120iF60#..GEN,IDN,MXC,PHL,SA,TH201104

55714APANEL, COWL TOP SIDE, LH

main55714-BZ010iF601200312-200608

main55714-BZ011iF601..4AT200608-200911

main55714-BZ130iF60#..GEN,IDN,MXC,PHL,SA,TH201104

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-BZ010iF601200312-200404

main55781-BZ020iF601200404-200608

main55781-BZ040iF60#..LHD200608

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-BZ010iF601200312-200404

main55782-BZ020iF601..4AT200608-200911

main55782-BZ040iF60#..LHD200608

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-BZ010×2iF601..BRU,MA,TH200404-200608

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-BZ010×2iF601..4AT200608-200911

56111GLASS, WINDSHIELD

main56111-BZ010iF601..LVVT200312-200608

ASAHIMAS

main56111-BZ020iF602..PHL;F601..GEN,IDN,PHL;F602..S..(GEN,IDN)200608-200710

MULIA

main56111-BZ040iF601..MA200410-200608

MCIS

main56111-BZ050iF601..WVVT..(BRU,IDN,TH)200404-200608

ASAHIMAS

main56111-BZ090iF602..MA;F601..5F..MA200609

main56111-BZ250iF60#..IDN200710

MULIA GLASS

56115CSTOPPER, WINDSHIELD GLASS

main56115-87401×2iF601200312-200607

main56115-BZ050×2iF60#..GEN,IDN,MXC,PHL,SA,TH200608

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B0010iF601..5F;F602..G..MA;F602..GEN,IDN,MXC,PHL,SA,TH200809

61121CPANEL, COWL SIDE, OUTER RH

main61121-BZ010iF601200312-200608

61122CPANEL, COWL SIDE, OUTER LH

main61122-BZ010iF601200312-200608

9004467478

main90044-67478

16 parts on this diagram · 2 diagrams in section
