Toyota AVANZA — BATTERY & BATTERY CABLE

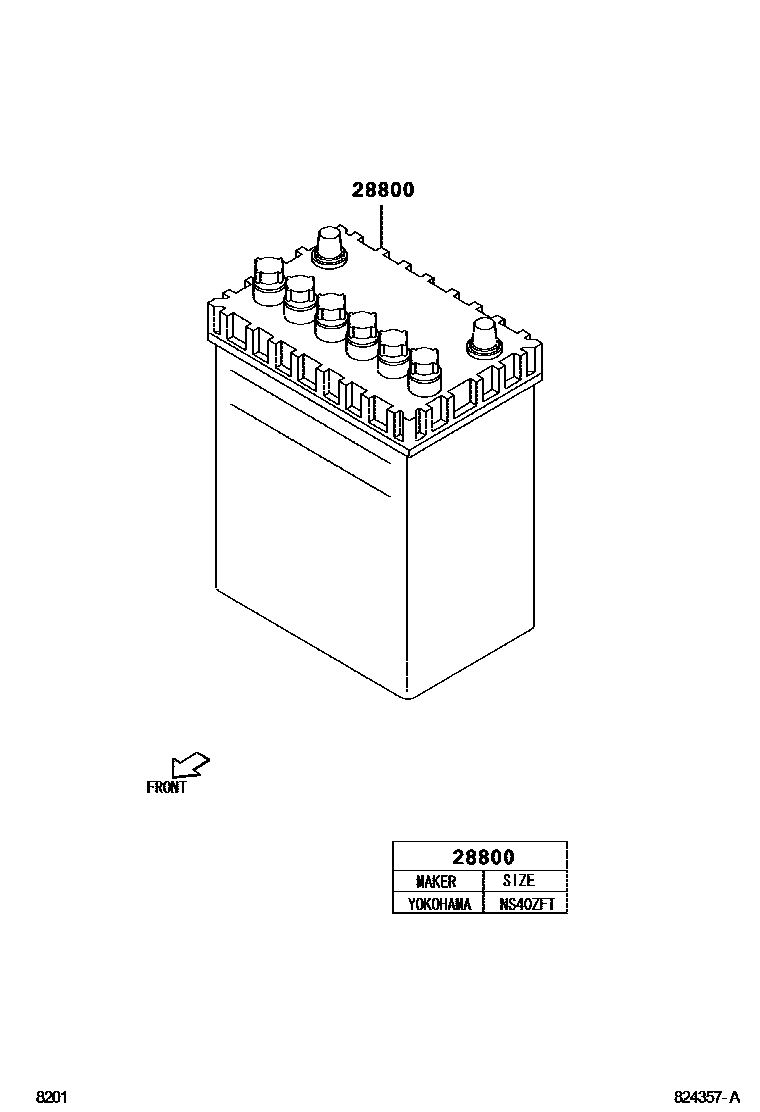

Parts diagram
28800BATTERY
main28800-BZ010i200410-200608
NS40ZFT
main28800-BZ011i201110
NS40ZFT

1 parts on this diagram · 2 diagrams in section

BATTERY & BATTERY CABLE for Toyota AVANZA

This section contains 2 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota AVANZA. Key components include: BATTERY, COVER ASSY, ENGINE, REAR.
