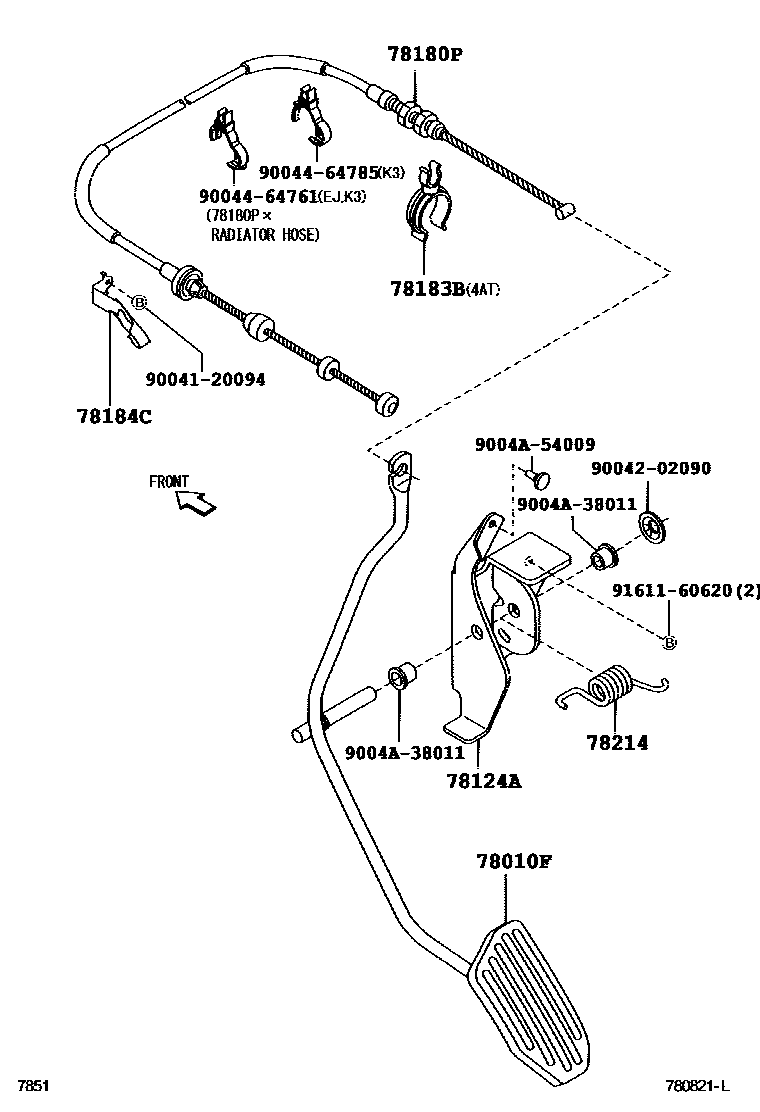

Toyota AVANZA — ACCELERATOR LINK

0001 1 0002 1 0003 1

78010FPEDAL ASSY, ACCELERATOR

main78101-BZ010iF601200312-200608

main78101-BZ050iF60#..LHD200608

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-BZ010iF602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA)200608

main78124-BZ040iF60#..LHD200608

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-BZ020iF601..5F..MA;F601..BRU,IDN,TH200312-200608

main78180-BZ050iF601..4AT..MA200410-200608

main78180-BZ080iF602..MA200608-201012

L=1458

main78180-BZ081iF601..4AT..IDN;F602..RHD..(GEN,IDN,SA,TH)201011

L=1473

main78180-BZ090iF601..DLX..GEN200608-200609

main78180-BZ091iF60#..LHD200610

main78180-BZ130iF601..5F..MA200608-201012

L=1468

main78180-BZ131iF601..RHD..5F..(GEN,IDN,SA)201011

L=1483

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-87401iF601..4AT200404-200608

78184CBRACKET, ACCELERATOR CONTROL CABLE

main31341-BZ010iF601200312-200608

78214SPRING, ACCELERATOR LINK ROD RETURN

main78214-BZ010iF601200312-200608

main78214-BZ030iF60#..LHD200608

9004120094

main90041-20094

9004202090

main90042-02090

9004464761

main90044-64761

9004464785

main90044-64785

9004A38011

main9004A-38011

9004A54009

main9004A-54009

9161160620

main91611-60620

13 parts on this diagram · 3 diagrams in section
