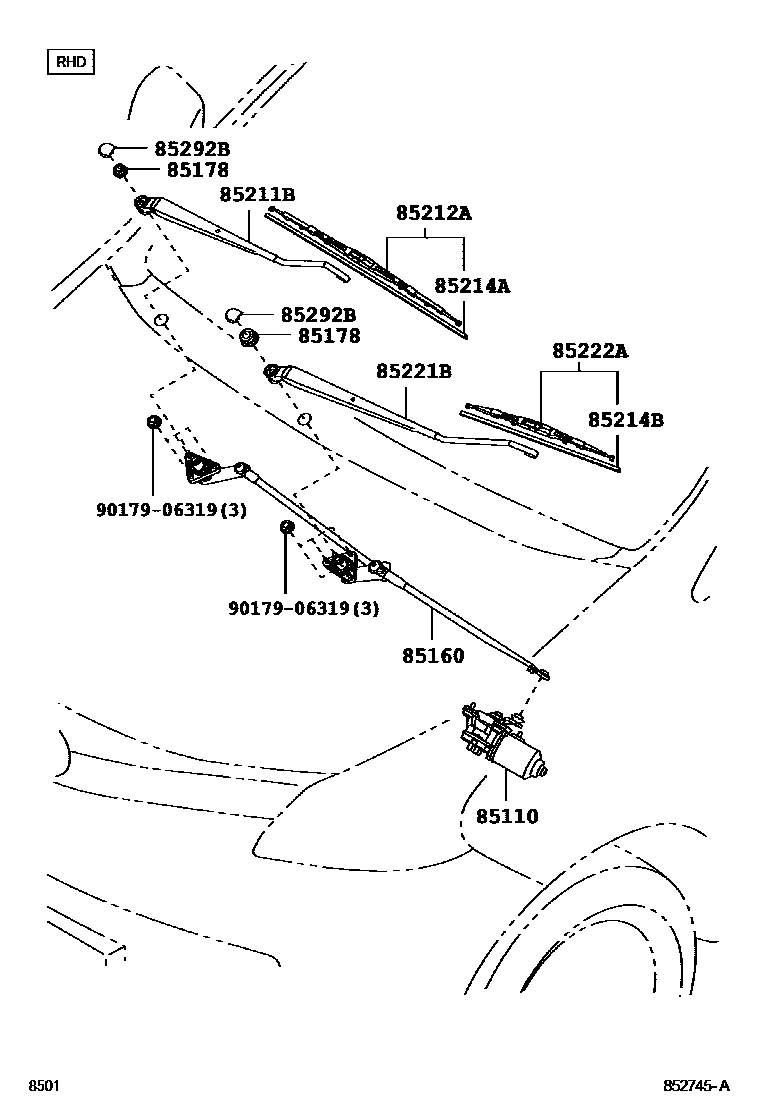

Toyota AVANZA — WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ150iF65#..RHD201111-201303

main85110-BZ151iF65#..IDN201304-201507

main85110-BZ170iF65#..LHD201112-201303

main85110-BZ171iF651,652..LHD201304-201508

main85110-BZ230iF65#..(MID,SPO)..IDN201901-202110

main85110-BZ240iF65#..LHD201904

85160LINK ASSY, WINDSHIELD WIPER

main85150-BZ150iF651,652..MA,SA,TH201111-201508

main85150-BZ170iF651,652..LHD201112-201508

main85150-BZ230iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

main85150-BZ240iF65#..LHD201508-201904

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205×2iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main90041-79379×2iF65#202209

85211BARM, FRONT WIPER, RH

main85211-BZ060iF65#..IDN201111-201507

main85211-BZ250iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901

main85221-BZ170iF651,652..LHD201112-201508

main85221-BZ260iF65#..LHD201508-201904

85212ABLADE, FR WIPER, RH

main85212-BZ060iF65#..IDN201111-201507

main85212-BZ280iF65#..(MID,SPO)..IDN201901-202110

main85222-BZ210iF651,652..LHD201112-201508

main85222-BZ300iF65#..LHD201904

85214ARUBBER, WIPER, RH

main85214-BZ090iF651,652..MA,SA,TH201111-201508

main85214-BZ220iF651,652..LHD201112-201508

main85214-BZ250iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main85214-BZ280iF65#..LHD201904

85214BRUBBER, WIPER, LH

main85214-BZ090iF651,652..LHD201112-201508

main85214-BZ220iF65#..IDN201111-201507

main85214-BZ250iF65#..LHD201508-201904

main85214-BZ280iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

85221BARM, FRONT WIPER, LH

main85211-BZ170iF651,652..LHD201112-201508

main85211-BZ260iF65#..LHD201904

main85221-BZ140iF651,652..MA,SA,TH201111-201508

main85221-BZ250iF65#..(MID,SPO)..IDN201901-202110

85222ABLADE, FR WIPER, LH

main85212-BZ160iF651,652..LHD201112-201508

main85212-BZ290iF65#..LHD201904

main85222-BZ140iF65#..IDN201111-201507

main85222-BZ290iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2iF65#..IDN201111-201507

main85292-BZ110×2iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201608-201901

9017906319

main90179-06319

11 parts on this diagram · 4 diagrams in section
