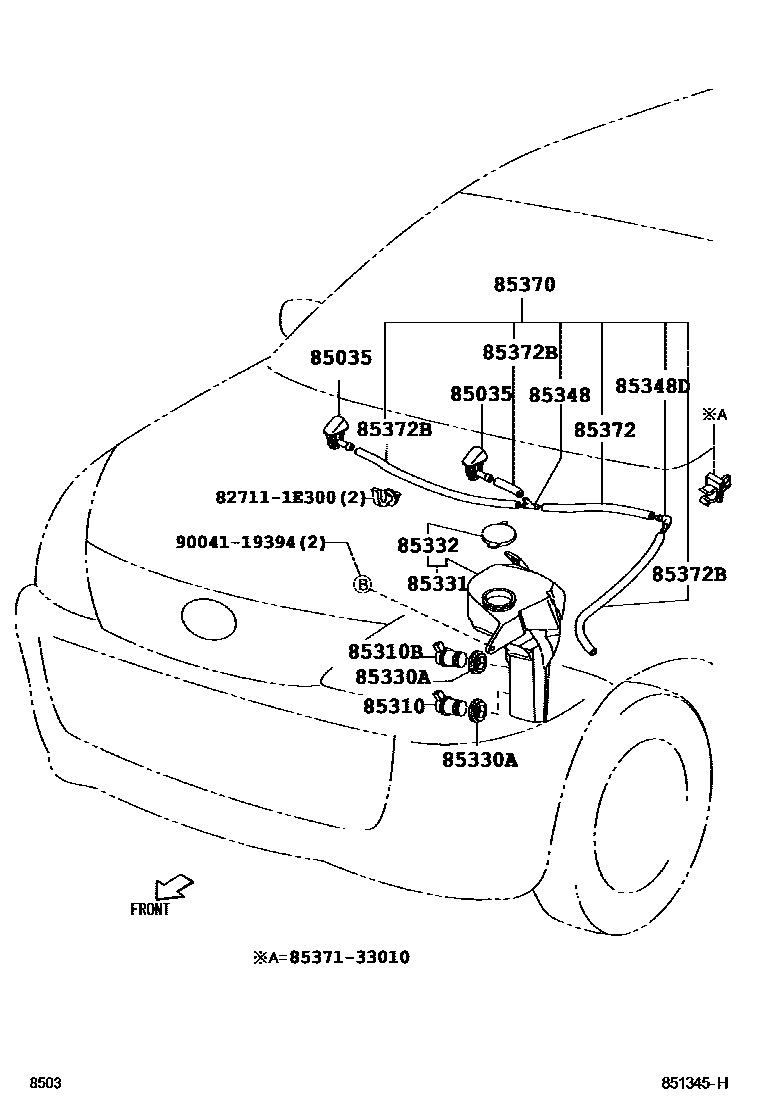

Toyota AVANZA — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ010×2iF601..BRU,IDN,TH200312-200608

main85381-BZ020×2iF601..MA200410-200608

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ020iF601..4AT200608-200911

main85330-BZ060iF60#..GEN,IDN,MXC,PHL,SA,TH201107

main85330-BZ070iF602..MA;F601..5F..MA201107

85310BMOTOR & PUMP ASSY, WINDSHIELD WASHER

main85330-BZ010iF601200312-200608

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202×2iF601200312-200608

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-BZ010iF602..MA;F601..5F..MA200609

main85315-BZ040iF602..MXC200610

main85315-BZ050iF60#..GEN,IDN,PHL,SA,TH200608

85332CAP, WINDSHIELD WASHER JAR

main85332-87401iF601200312-200608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85327-BZ010iF601..BRU,IDN,TH200312-200608

main85348-87201iF601..MA200410-200608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85317-BZ010iF601..BRU,IDN,TH200312-200608

main85349-87602iF601..MA200410-200608

85370HOSE ASSY, WINDSHIELD WASHER

main85370-BZ040iF601..BRU,IDN,TH200312-200608

main85370-BZ050iF601..4AT200609-200911

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZ470iF60#..GEN,IDN,MXC,PHL,SA,TH200608

L=570

main9004B-44001iF602..MA;F601..5F..MA200609

main9004B-58001iF601..BRU,IDN,TH200312-200608

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85319-BZ040iF601..BRU,IDN,TH200312-200608

L=420

main85329-BZ040iF601..BRU,IDN,TH200312-200608

L=50

main85359-BZ040iF601..BRU,IDN,TH200312-200608

L=560

main85374-BZ030iF60#..GEN,IDN,MXC,PHL,SA,TH200608

L=50

main85374-BZ450iF60#..GEN,IDN,MXC,PHL,SA,TH200608

L=420

main85374-BZ460iF60#..GEN,IDN,MXC,PHL,SA,TH200608

L=560

main9004B-44007×3iF601..MA200410-200608

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9004119394

main90041-19394

14 parts on this diagram · 6 diagrams in section
