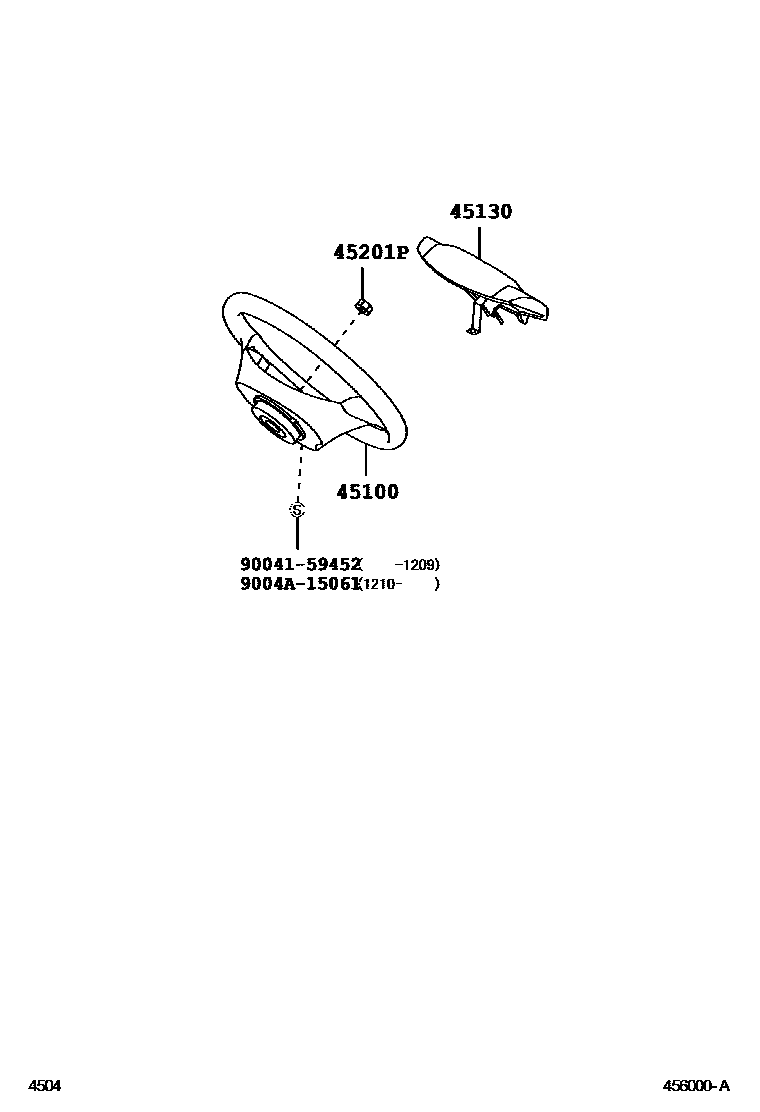

Toyota AVANZA — STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW); 3-SPOKE,URETHANE,BLACK,TRIM4#,W/O(AUDIO SW)
3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)
3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW)
3-SPOKE,URETHANE,BLACK,TRIM1#,W(AUDIO SW LH ONLY)
3-SPOKE,URETHANE,BLACK,TRIM1#,W(AUDIO SW LH ONLY); 3-SPOKE,URETHANE,BLACK,TRIM4#,W(AUDIO SW LH ONLY)
3-SPORK,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW); 3-SPORK,URETHANE,BLACK,TRIM4#,W/O(AUDIO SW)
3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW); 3-SPOKE,URETHANE,BLACK,TRIM4#,W/O(AUDIO SW)
3-SPORK,URETHANE,BLACK,TRIM1#,W(AUDIO SW LH ONLY)
3-SPOKE,URETHANE,BLACK,TRIM1#; 3-SPOKE,URETHANE,BLACK,TRIM1#,4#
main45102-BZ510-C0iF653..MID..GEN;F654..STD..GCC;F653,654..(MID,STD)..IDN; F653..SPO;F654..MID..(MXC,TH);F653,654..(LO,STD,VB)..(GEN,MA,PHL,SA,TH)201507-201809
3-SPOKE,URETHANE,BLACK,TRIM1#,W/O(AUDIO SW); 3-SPOKE,URETHANE,BLACK,TRIM4#,W/O(AUDIO SW)
main45102-BZ510-C1iF653..MID..GEN;F654..STD..GCC;F65#..(MID,STD)..IDN; F653..SPO;F654..MID..(MXC,TH);F65#..(LO,STD,VB)..(GEN,MA,PHL,SA,TH)201809-201904
3-SPOKE,URETHANE,SILVER,TRIM1#,W/O(AUDIO SW); 3-SPOKE,URETHANE,SILVER,TRIM4#,W/O(AUDIO SW)
3-SPOKE,URETHANE,BLACK,TRIM1#,W(AUDIO SW LH ONLY); 3-SPOKE,URETHANE,BLACK,TRIM4#,W(AUDIO SW LH ONLY)
3-SPOKE,URETHANE,SILVER,TRIM1#; 3-SPOKE,URETHANE,SILVER,TRIM4#
3-SPOKE,LEATHER,BLACK,TRIM1#,W(AUDIO SW LH ONLY)
3-SPOKE,LEATHER,SILVER,TRIM1#,W(AUDIO SW LH ONLY)
3-SPOKE,LEATHER,SILVER,TRIM1#
3-SPOKE,URETHANE,INDONESIA TAXI,BLACK,TRIM4#,W/O(AUDIO SW)
45130BUTTON ASSY, HORN
BLACK,TRIM1#; BLACK,TRIM4#
BLACK,TRIM1#; BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM1#,BARCODE:*********X2W; BLACK,TRIM4#,BARCODE:*********X2W
main45130-BZ362-C0iF651..MID..GEN;F652..GCC,GEN,PHL; F652..MA,MXC,SA,TH;F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201305-201508
BLACK,TRIM1#,BARCODE:*********X3N; BLACK,TRIM4#,BARCODE:*********X3N
BLACK,TRIM1#
BLACK,TRIM1#
main45130-BZ530-C0iF654..4AT..STD..TH;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA); F654..GCC;F65#..MID..GEN; F654..MID..PHL201901
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#
45201PNUT, STEERING WHEEL SET
9004159452
main90041-59452
9004A15061
main9004A-15061
5 parts on this diagram · 2 diagrams in section
STEERING WHEEL for Toyota AVANZA
This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota AVANZA. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, BUTTON ASSY, HORN, NUT, STEERING WHEEL SET, SWITCH & RELAY & COMPUTER.
