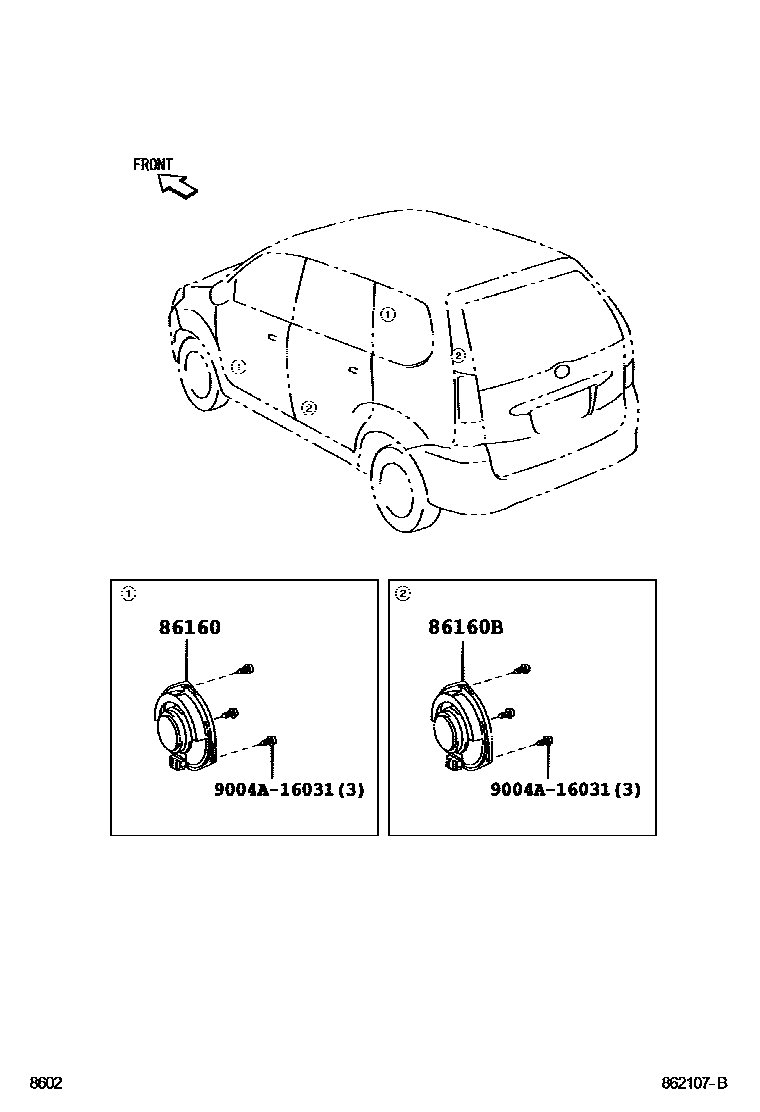

Toyota AVANZA — SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-BZ010×2iF60#..GEN,IDN,MXC,PHL,SA,TH200608-200708

main86160-BZ060×2iF601..4AT200609-200911

main86160-BZ120×2iF60#..GEN,IDN,MXC,PHL,SA,TH200709

sub86160-BZ180

86160BSPEAKER ASSY, REAR

main86160-BZ010×2iF60#..(E,G,GL,J,S)..(GEN,IDN,MXC,PHL,SA,TH)200608-200708

main86160-BZ060×2iF601..MA200412-200608

main86160-BZ120×2iF60#..(E,G,GL,J,S,XI)..(GEN,IDN,MXC,PHL,SA,TH)200709

sub86160-BZ180

9004A16031

main9004A-16031

3 parts on this diagram · 2 diagrams in section
