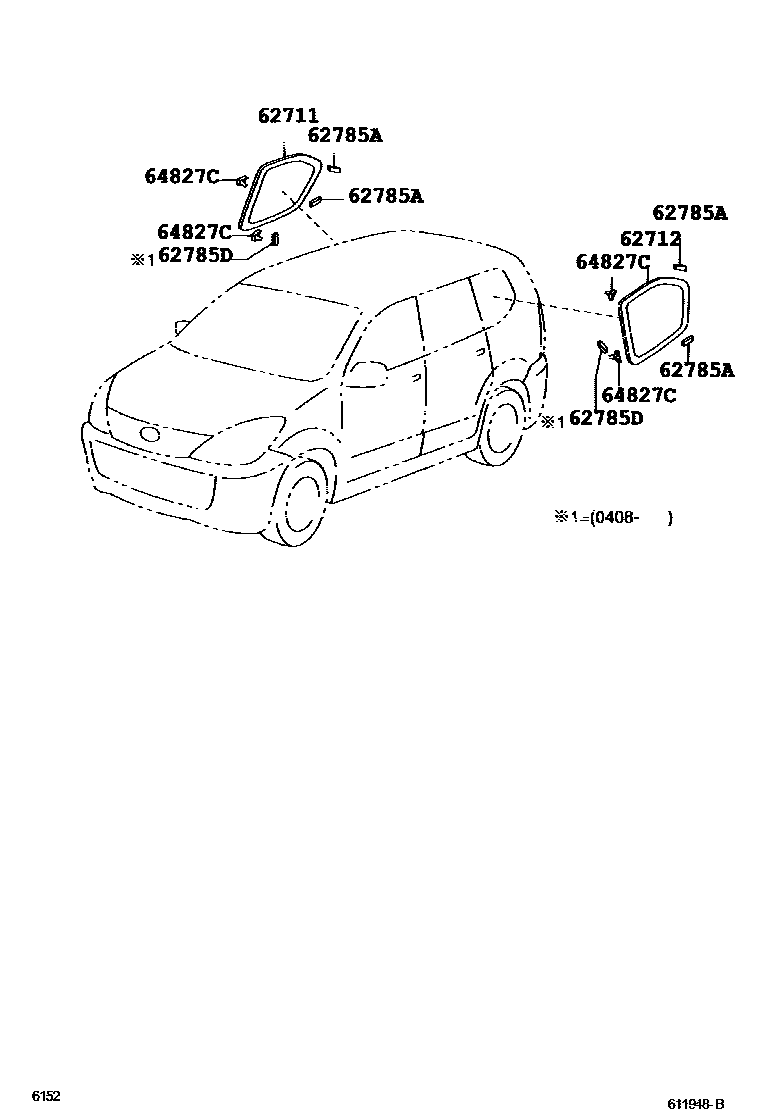

Toyota AVANZA — SIDE WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-BZ010i200608-200810

ASAHIMAS

main62711-BZ020i200608-200710

MULIA

main62711-BZ030i200609

MSG

main62711-BZ040i200608

ASAHIMAS

main62711-BZ050i200608-200902

ASAHIMAS

main62711-BZ051i200903

SMOKE

main62711-BZ190i200710

MULIA GLASS

62712GLASS, QUARTER WINDOW, LH

main62712-BZ010i200608-200810

ASAHIMAS

main62712-BZ020i200608-200710

MULIA

main62712-BZ030i200410-200608

MSG

main62712-BZ040i200710

ASAHIMAS

main62712-BZ050i200608-200902

ASAHIMAS

main62712-BZ051i200903

SMOKE

main62712-BZ190i200710

MULIA GLASS

62785ASPACER, QUARTER WINDOW GLASS

main64818-BZ010×4i200312-200608

62785DSPACER, QUARTER WINDOW GLASS

main61777-BZ010×2i200312-200608

64827CCLIP, QUARTER WINDOW GLASS

main62775-B0010×4i200312-200608

main62775-BZ020×4i200608

5 parts on this diagram · 2 diagrams in section

SIDE WINDOW for Toyota AVANZA

This section contains 5 genuine Toyota parts for the SIDE WINDOW system of the Toyota AVANZA. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, SPACER, QUARTER WINDOW GLASS, CLIP, QUARTER WINDOW GLASS.
