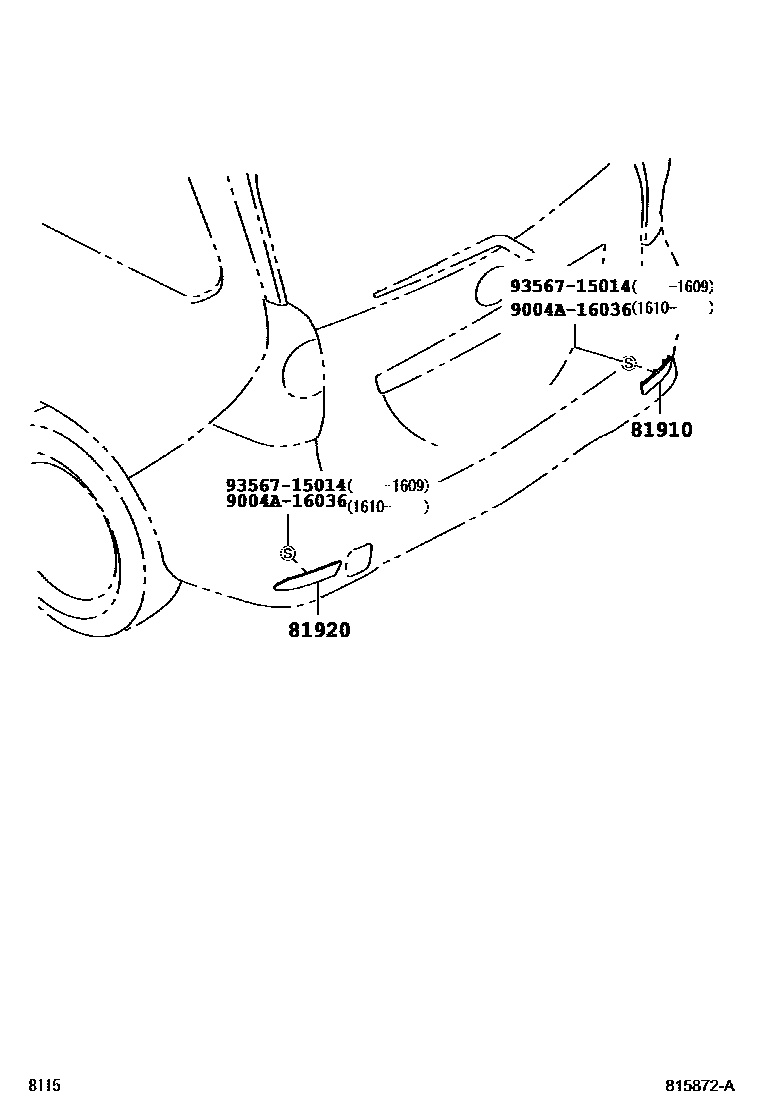

Toyota AVANZA — REFLEX REFLECTOR

0001 1 0002 1 0004 1

81910REFLECTOR ASSY, REFLEX, RH

main81910-12100iF653,654..SPO201507-201610

main81910-B0010iF65#..SPO..(IDN,TH)201610-201901

main81910-BZ090iF653..MID..GEN;F654..4AT..(MID,STD)..TH;F654..(MID,STD)..(GEN,MXC,PHL,SA);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA)201901

main81910-BZ140iF654..GCC201904-202201

main81910-BZ170iF65#..SPO..IDN201901-202110

81920REFLECTOR ASSY, REFLEX, LH

main81910-12100iF652..SPO..IDN201111-201507

main81910-B0010iF654..SPO..(MA,PHL)201610-201904

main81910-BZ170iF65#..SPO..IDN201901-202110

main81920-BZ090iF653..MID..GEN;F654..4AT..(MID,STD)..TH;F654..(MID,STD)..(GEN,MXC,PHL,SA);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA)201901

main81920-BZ140iF654..GCC201508-201904

9004A16036

main9004A-16036

9356715014

main93567-15014

4 parts on this diagram · 3 diagrams in section
